Spicer 3-3-1601KX Slip Yoke

Vendor: Spicer/Dana, Sku: 3-3-1601KX

Product Description

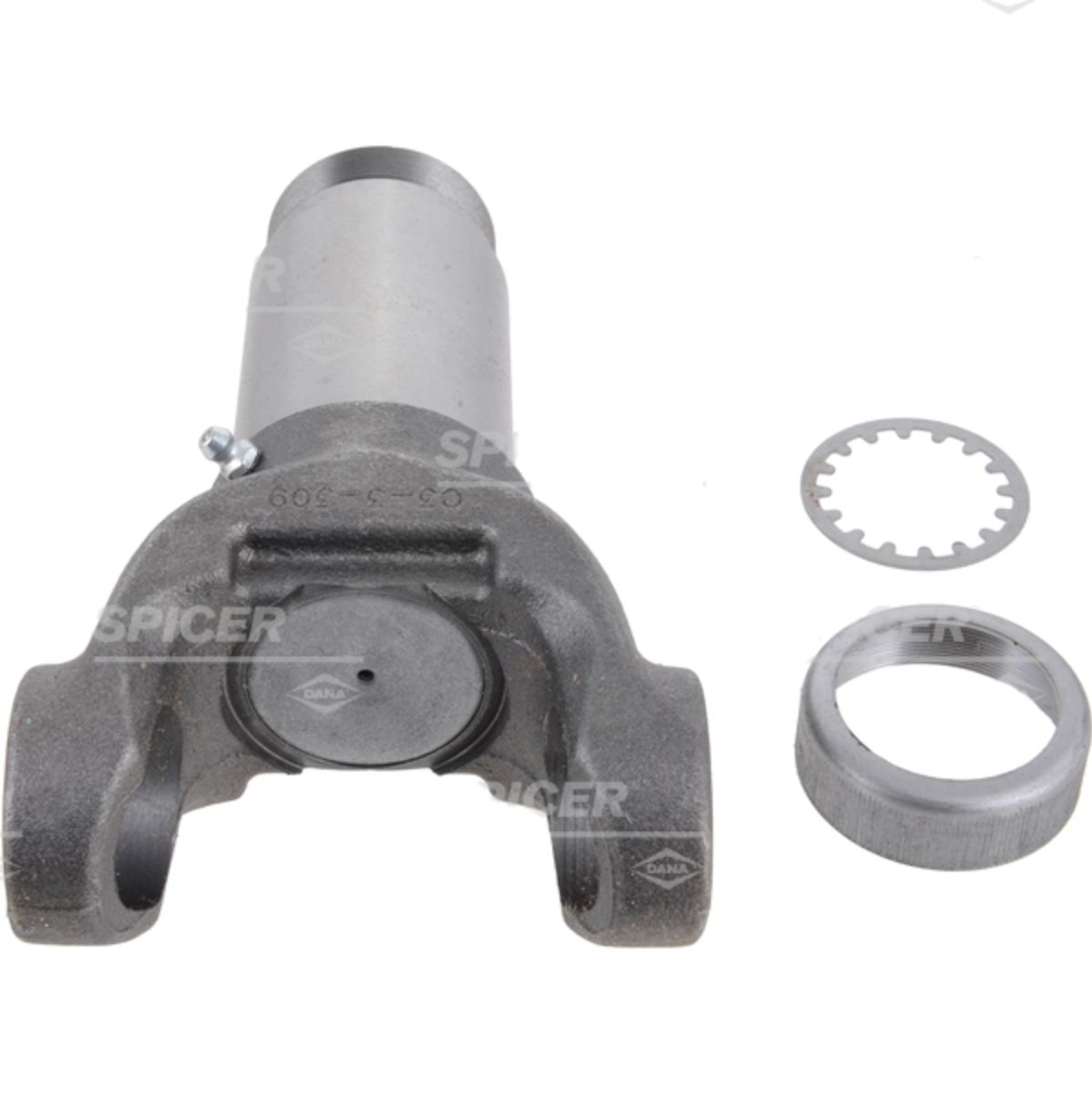

Mid Drive Shaft Slip Yoke

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Mid shaft slip yoke designed to be used in conjunction with a spline shaft to allow axle movement in the driveshaft.

Specifications:

Series: 1480
U-Joint Width: 4.438 Inch
U-Joint Cap Diameter: 1.188 Inch
Center Line to End of Spline: 6.812 Inch
Center Line to Face of Plug: 1.312 Inch
Spline Outside Diameter: 1.562 Inch
Spline Count: 16
Greasable: Yes
Joint Angle: 21.0 Degree
Material: Steel
Dust Cap: Yes

VMRS: 024002038


Compatible Parts:
Spicer D3J Slip Yoke Dust Cap
Spicer 5-188X U-Joint

Alternate Part Number:
Neapco N3-3-1601KX Slip Yoke
PTI P3-3-1601KX Slip Yoke

Sku: 3-3-1601KX
Vendor: Spicer/Dana
