AAM 26064291 Slip Yoke

Vendor: AAM, Sku: 26064291

Product Description

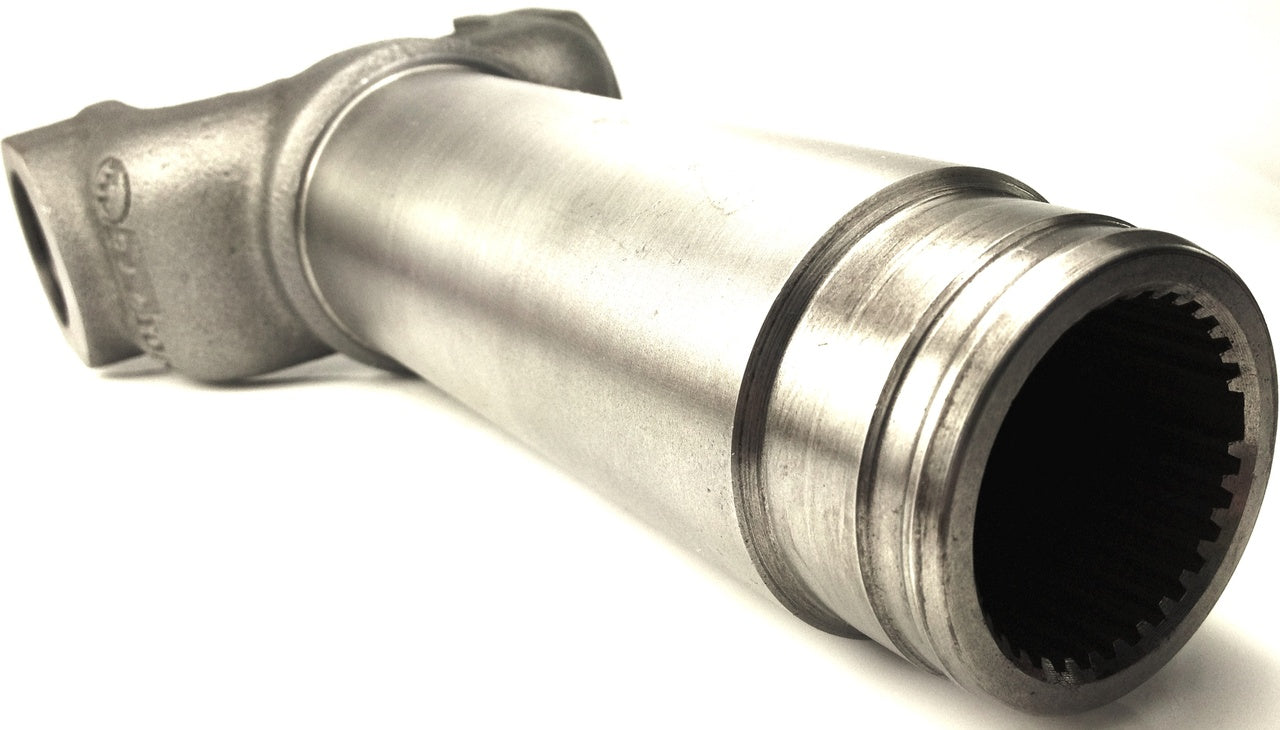

Slip Yoke Assembly - Driveshaft

Mid shaft slip yoke designed to be used in conjunction with a spline shaft to allow axle movement in the driveshaft.

Specifications:

Series: 1415 (1410)
Outside Yoke Dimension (B): 4.178 Inch (109.06 mm)
Bearing Cap Diameter (A): 1.188 Inch (30.16 mm)
Style: Outside Snap Ring
Center Line To End Of Spline (C): 7.875 Inch (200 mm)
Center Line To Face Of Plug: 1.375 Inch (34.9 mm)
Outside Barrel Diameter (D): 1.728 Inch (43.90 mm)
Spline Outside Diameter (E): 1.375 Inch (34.9 mm)
Number of Splines (F): 32 (31 with blind spot)
Involute: Yes
Material: Steel
Vehicle: GM

VMRS: 024002038

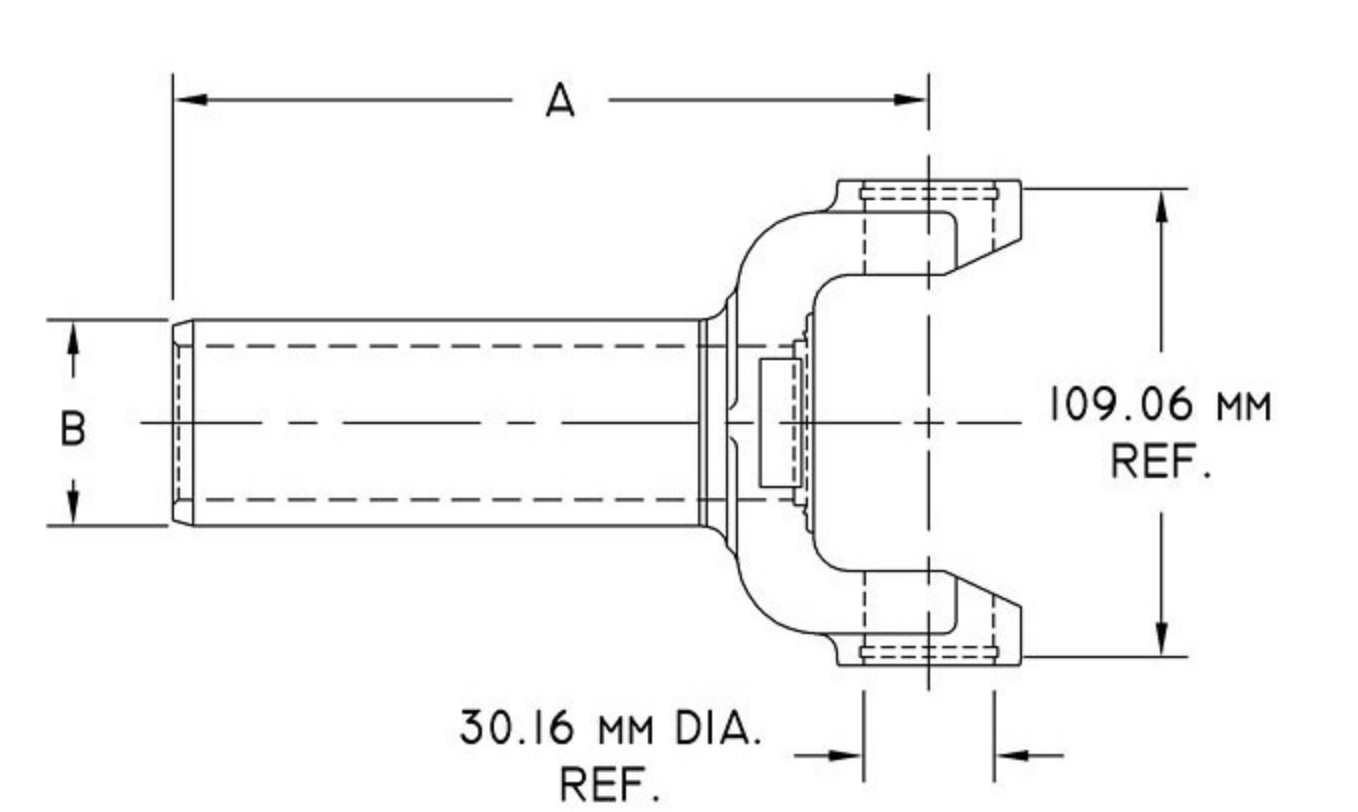

Driveshaft Slip Yoke Diagram Outside Snap Ring Style


Compatible Parts:
AAM 74085339 U-Joint
PTI 3R18-322 Boot Kit

Alternate Part Number:
PTI 4103-321 Slip Yoke
74084291

Sku: 26064291
Vendor: AAM
