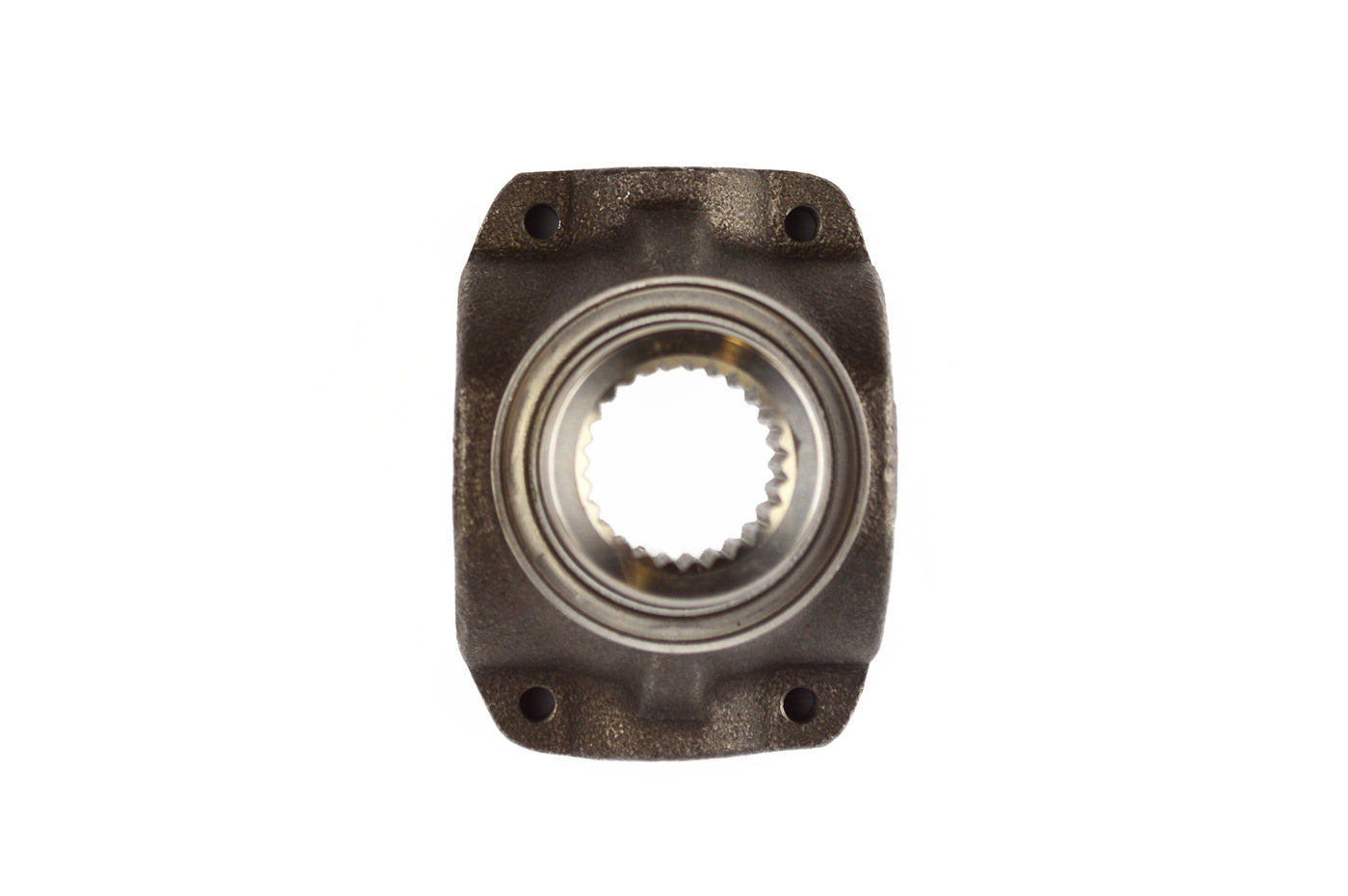

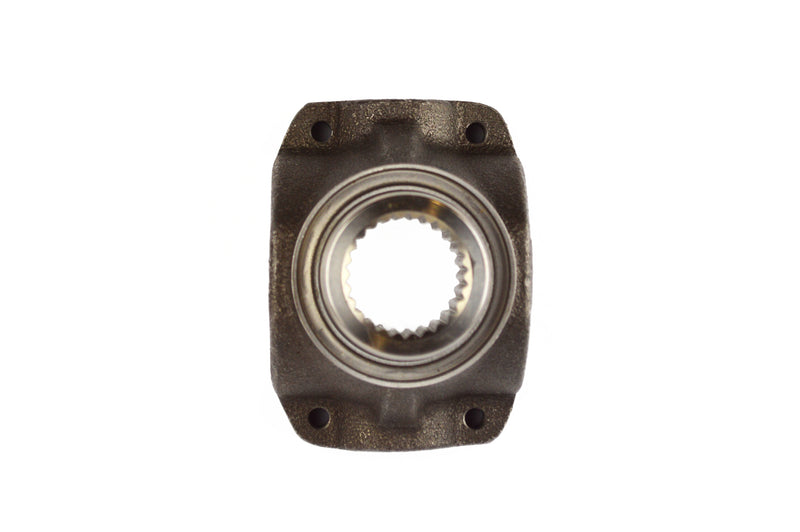

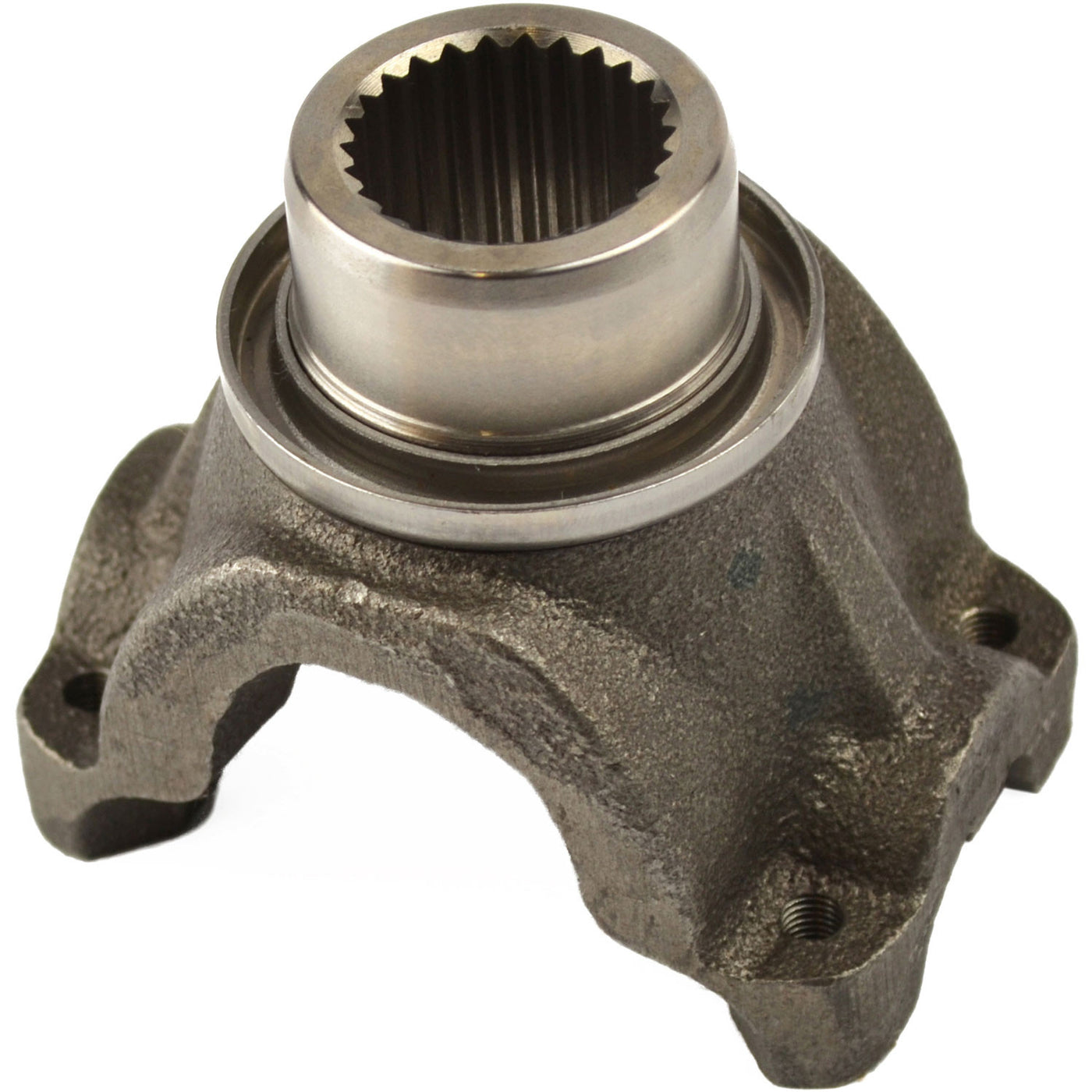

Spicer 2-4-8091-1X END YOKE

Vendor: Spicer/Dana, Sku: 2-4-8091-1X

Product Description
Spicer end yoke fits Dana 44 with 1310 Series U Joint and other applications with similar dimensions.  26 spline.  Check the End Yoke Chart for full dimensions.

This is a genuine Spicer built driveshaft component.  Spicer parts provide the enhanced performance and extended durability that you expect from the leader in the drivetrain industry.  You can read more about Spicer quality and products at Dana.com.

Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

Strap Kit - 2-70-18X

Sku: 2-4-8091-1X
Vendor: Spicer/Dana
$50.25
Maximum quantity available reached.

DETAILS

Manufacturer: Spicer/Dana
Centerline of Joint to End of Spline (s): 3.000"
Manufacturer Part Number: 2-4-8091-1X 2-4-8091-1X & 2-70-18X
U-Joint Series: 1310
Spline Count: 26
Spline OD: 1.146"
Bore Length: 1.500"
Cap OD: 1.062"
Yoke Span: 3.219"
Hub Dia.: 1.552"
Style: Outside Snap Ring
Rear Axle Type:
Dana 30/44/50
Joint Angle:
ø
Counterbore Depth:
ø

Bearing Strap Construction Diagram

.
