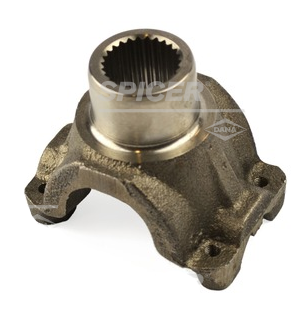

Spicer 2-4-6561-1 End Yoke

Vendor: Spicer/Dana, Sku: 2-4-6561-1

Product Description

Drive Shaft End Yoke / Pinion Yoke



The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance.




t

*



Manufacturer: Spicer/Dana
Manufacturer Part Number: 2-4-6561-1
U-Joint Series: 1310
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.063 Inch
U-Joint Width (B): 3.219 Inch
End Yoke Length(C) :
- Center Line to End of Spline
2.995 Inch
Hub Diameter (D): 1.552 Inch
Spline Diameter (E):
- From Farthest Point to Farthest Point
1.146 Inch
Number of Splines (F): 26
Bore Length (G): 1.495 Inch
Joint Angle:
28.5 Degree
Rear Axle Type:
Jeep



How to Measure a Driveshaft Slip Yoke.

Application

 Jeep Cherokee 4WD 1984, 1985, 1986, 1987, 1988, 1989 , 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 2000, 2001
Jeep Grand Wagoneer 4WD 1984, 1985, 1986,1987, 1988, 1989 , 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 2000
Jeep Comanche 4WD 1986, 1987, 1988, 1989, 1990 , 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 2000
Jeep Wrangler 4WD 1987, 1988, 1989 , 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 2000, 2001, 2002
Dodge Dakota 4WD 2002
Dodge Durango 4WD 2013


****


This part is compatible with:
Call for compatible parts

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide
