Spicer 2-3-7961KX Slip Yoke

Vendor: Spicer/Dana, Sku: 2-3-7961KX

Product Description

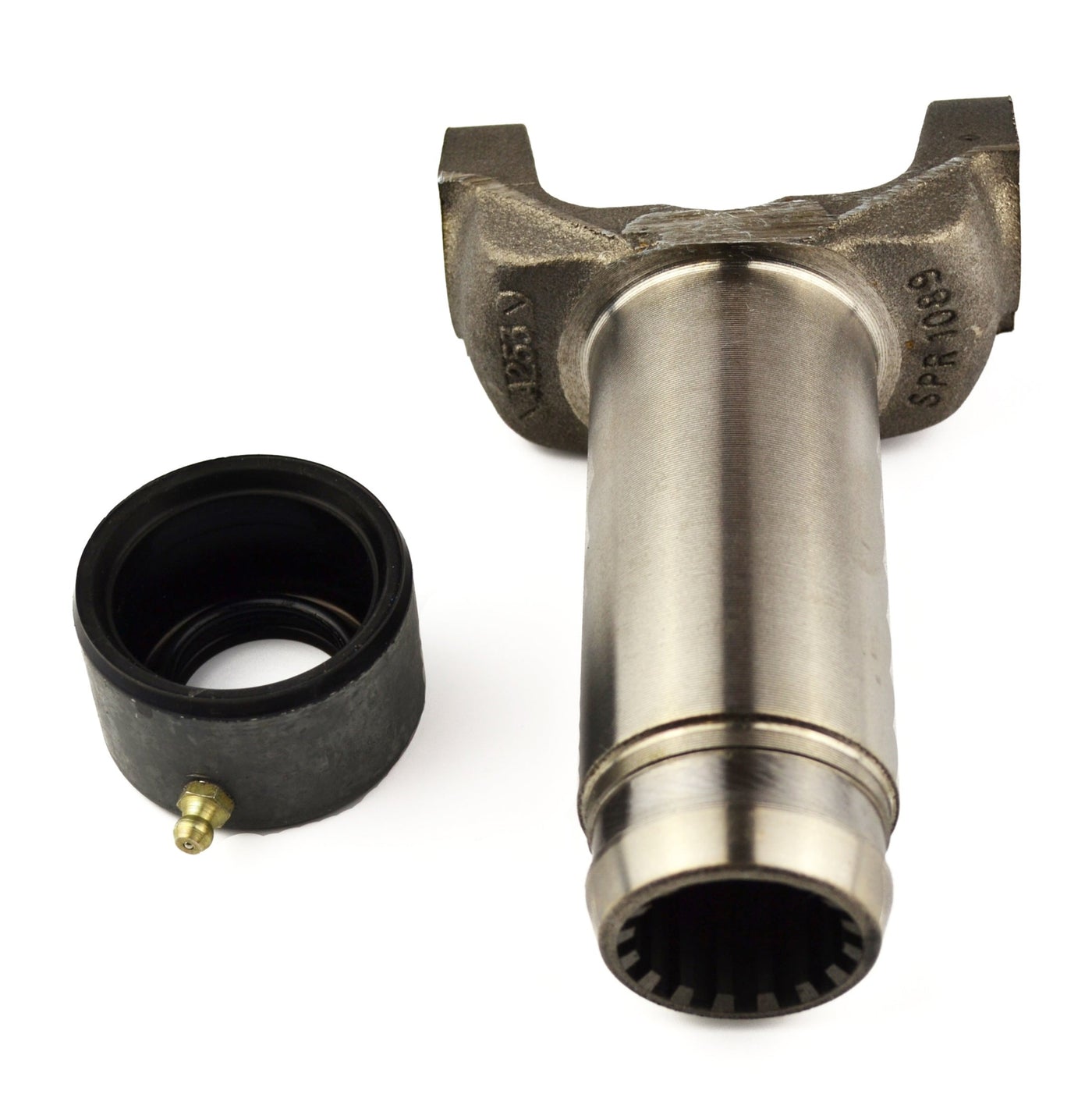

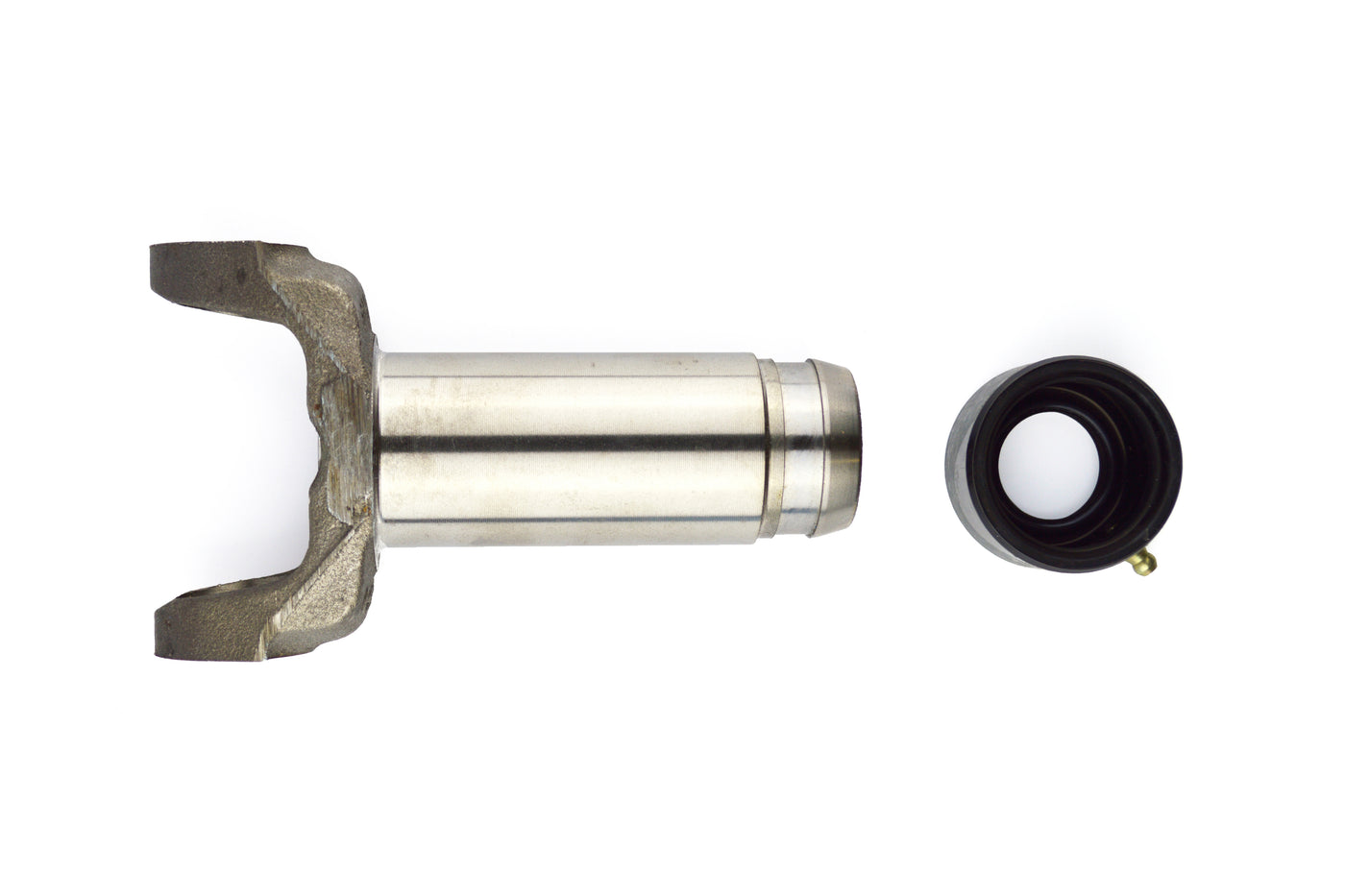

Mid Drive Shaft Slip Yoke

Mid shaft slip yoke designed to be used in conjunction with a spline shaft to allow axle movement in the driveshaft.

Specifications:

Series:	1330
U-Joint Width (B):	3.625 Inch
U-Joint Cap Diameter (A):	1.062 Inch
Center Line to End of Spline (C):	6.000 Inch
Center Line to Face Plug:	1.000 Inch
Spline Outside Diameter (E):	1.375 Inch
Spline Count (F):	16
Joint Angle:	55 Degrees
Greasable:	Yes
Material:	Steel
Dust Cap:	Yes

VMRS: 024002038

Alternate Part Numbers / Interchanges:
Neapco N2-3-7961KX Slip Yoke Assembly
PTI P2-3-7961KX Slip Yoke Assembly

Compatible Parts:
Spicer 2-68-143 Slip Yoke Plug
Spicer 211121X Dust Cap

Sku: 2-3-7961KX

Vendor: Spicer/Dana

$85.91

Maximum quantity available reached.
