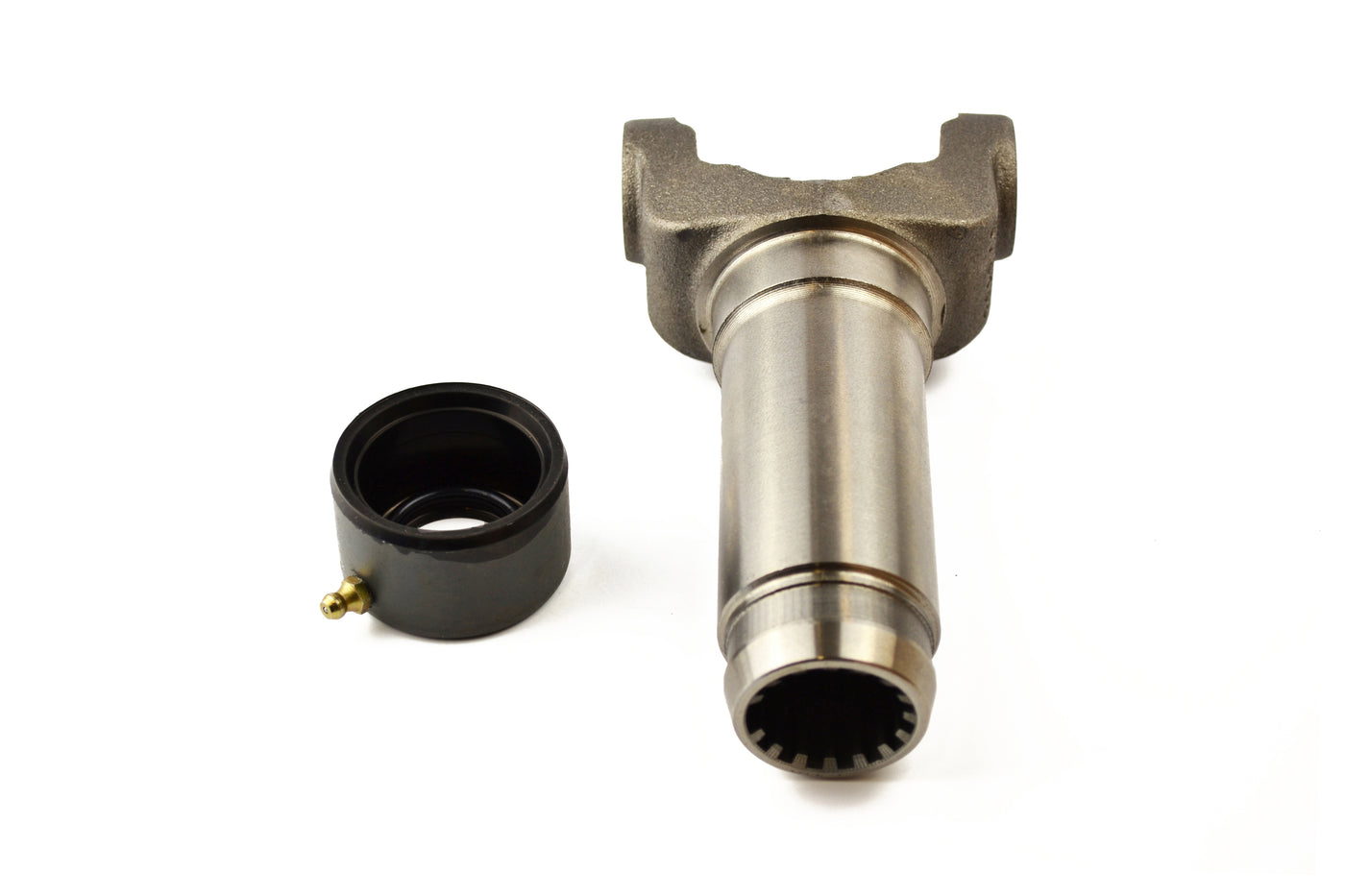

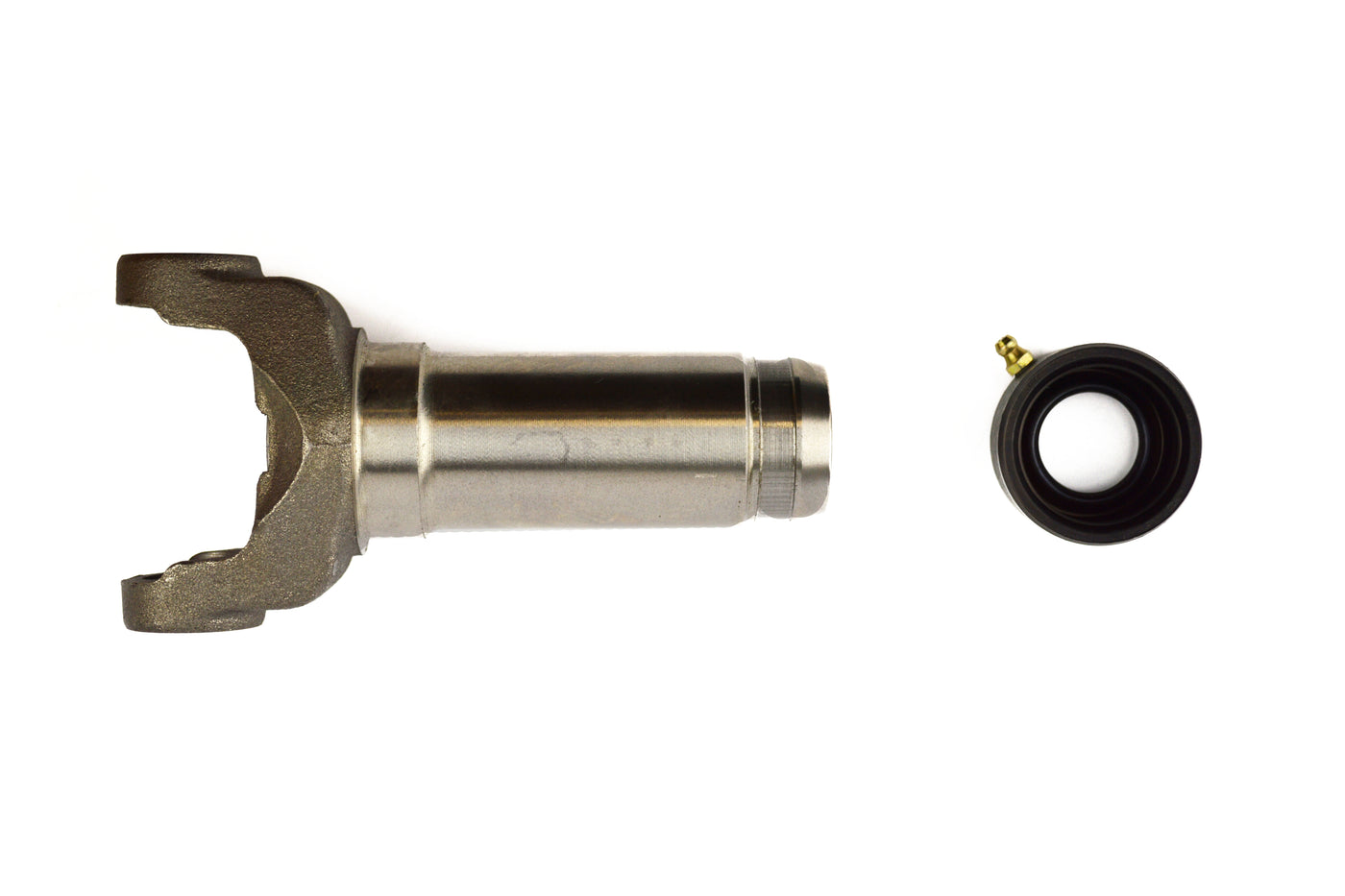

Spicer 2-3-7681KX Slip Yoke

Vendor: Spicer/Dana, Sku: 2-3-7681KX

Product Description

Mid Drive Shaft Slip Yoke Assembly

Mid shaft slip yoke designed to be used in conjunction with a spline shaft to allow axle movement in the driveshaft.

Specifications:

Series: 1330
U-Joint Width (B): 3.625 Inch
U-Joint Cap Diameter (A): 1.062 Inch
Center Line to End of Spline (C): 6.625 Inch
Center Line to Face Plug: 1.000 Inch
Spline Outside Diameter (E): 1.375 Inch
Spline Count (F): 16 (15 with blind spot)
Joint Angle: 35 Degrees
Greasable: Yes
Material: Steel
Dust Cap: Yes

VMRS: 024002038

Driveshaft Slip Yoke Diagram Outside Snap Ring Style


Alternate Part Numbers / Interchanges:
Neapco N2-3-7681KX Slip Yoke Assembly
PTI P2-3-7681KX Slip Yoke Assembly

Compatible Parts:
500174-1 Dust Cap
3-68-23 Slip Yoke Plug

Sku: 2-3-7681KX
Vendor: Spicer/Dana
