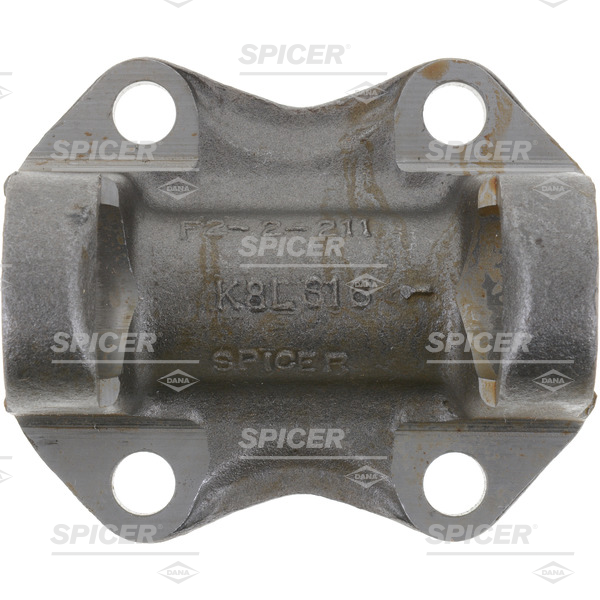

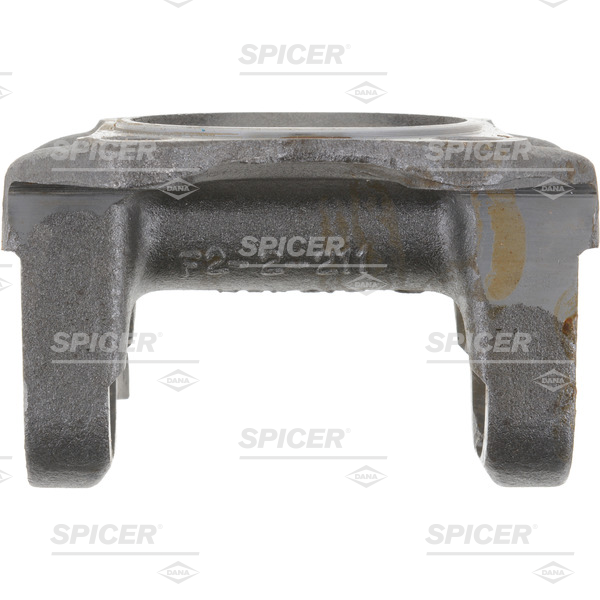

Spicer 2-2-1609 Flange Yoke

Vendor: Spicer/Dana, Sku: 2-2-1609

Product Description

Driveshaft 1310 Flange Yoke

Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

Specifications

Bolt Circle: 3.125 Inch
Series: 1310
U-Joint Width: 3.219 Inch
Bearing Cap Diameter: 1.063 Inch
Flange Face to Center Line: 1.625 Inch
Hole / Thread Size 0.406 Inch - Drilled
Number of Bolt Holes: 4
Pilot Diameter: 2.375 Inch - Male
Flange or Swing Diameter: 3.875 Inch

VMRS: 024002016

Sku: 2-2-1609
Vendor: Spicer/Dana
$81.97
Maximum quantity available reached.

DETAILS

U-Joint Series:
1310
U-Joint Cap Size (B): 1.063"
U-Joint Width (A): 3.219"
Snap Ring Type: Outside Snap Ring
Manufacturer: Spicer/Dana
Pilot Diameter (G): 2.559" M
Bolt Circle (E): 3.346"
Manufacturer Part Number: 2-2-1609
Flange or Swing Diameter (J):
Bolt Hole (F):
Number of Bolt Holes: 4
OEM/Alternate Part Number:

“Outside

.
