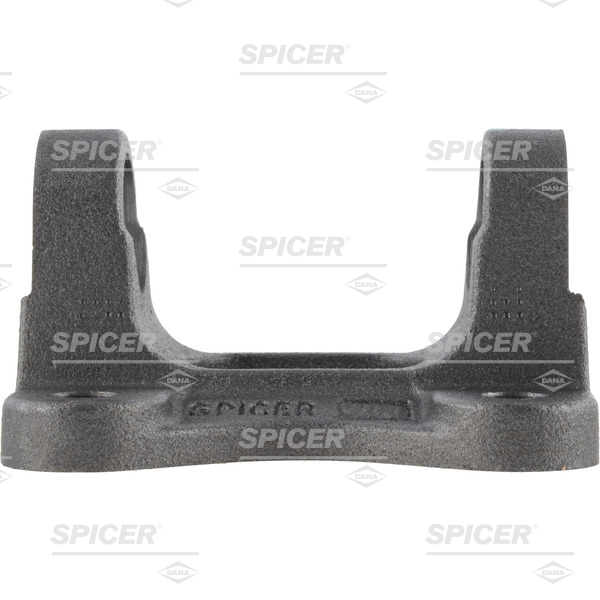

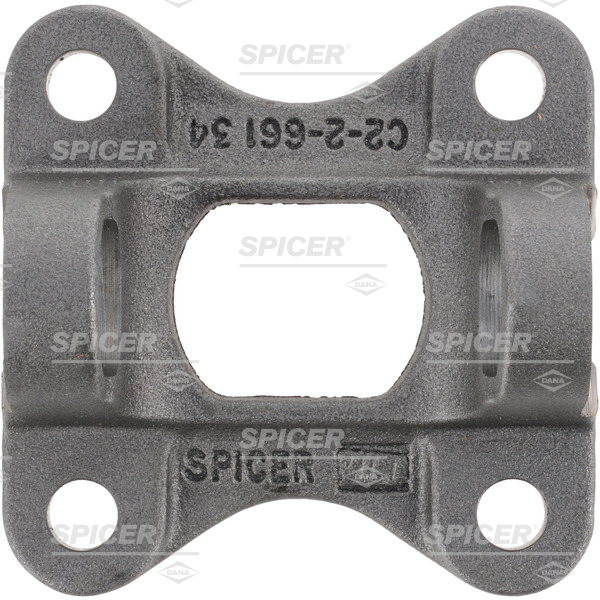

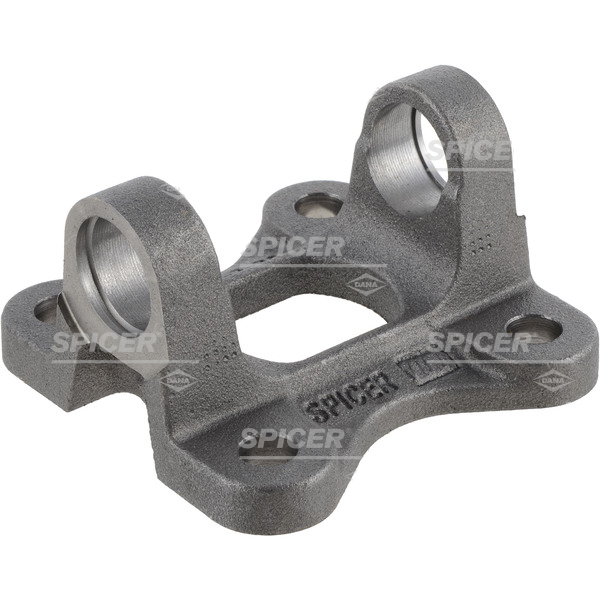

Spicer 2-2-01474 Flange Yoke

Vendor: Spicer/Dana, Sku: 2-2-01474

Product Description

Spicer Drive Shaft Flange Yoke

U-Joint Type: Outside Lock-Up
Bolt Circle: 4.271 Inch
Series: 1330
Snap Ring to Snap Ring: 3.625 Inch
Bearing Cap Diameter: 1.063 Inch
Flange Face to CL: 1.618 Inch
Hole Diameter: 0.487 Inch - Drilled
Number of Bolt Holes: 4
Pilot Diameter: 2.436 Inch Female
Material: Steel
Flange Or Swing Diameter: 5.423 Inch

 VMRS: 024002016



Compatible Applications

Vehicle Application Year OE Part Number
Mitsubishi Raider 2006, 2007, 2008, 2009 05135579AA


Sku: 2-2-01474
Vendor: Spicer/Dana
$40.31
Maximum quantity available reached.

DETAILS

U-Joint Series:
1330
U-Joint Cap Size (B): 1.063"
U-Joint Width (A): 3.625"
Snap Ring Type: Outside Snap Ring
Manufacturer: Spicer/Dana
Pilot Diameter (G): 2.436" F
Bolt Circle (E): 4.271"
Manufacturer Part Number: 2-2-01474
Flange or Swing Diameter (J): 5.423"
Bolt Hole (F): 0.487"
Number of Bolt Holes: 4
OEM/Alternate Part Number:

“Outside

.
