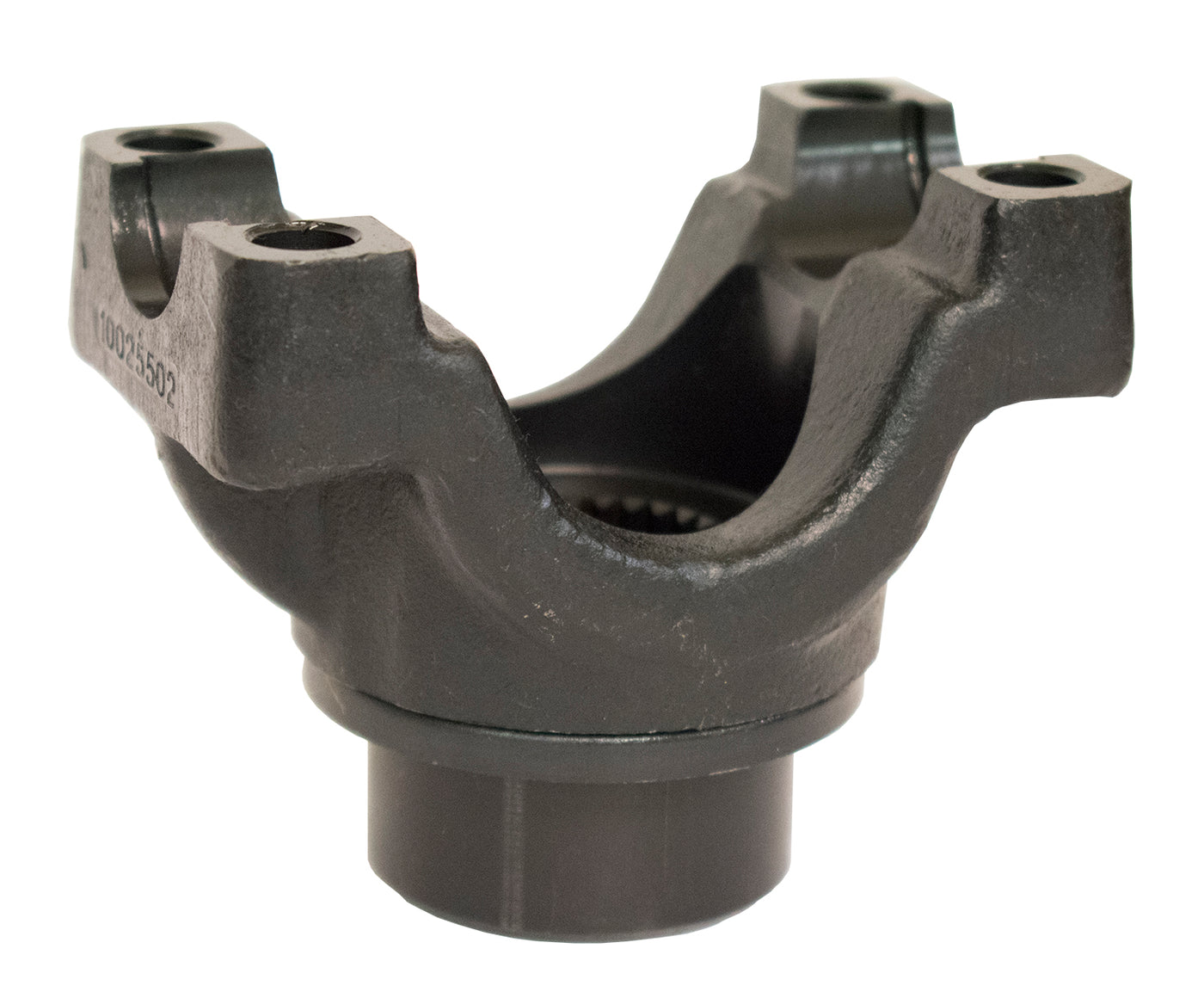

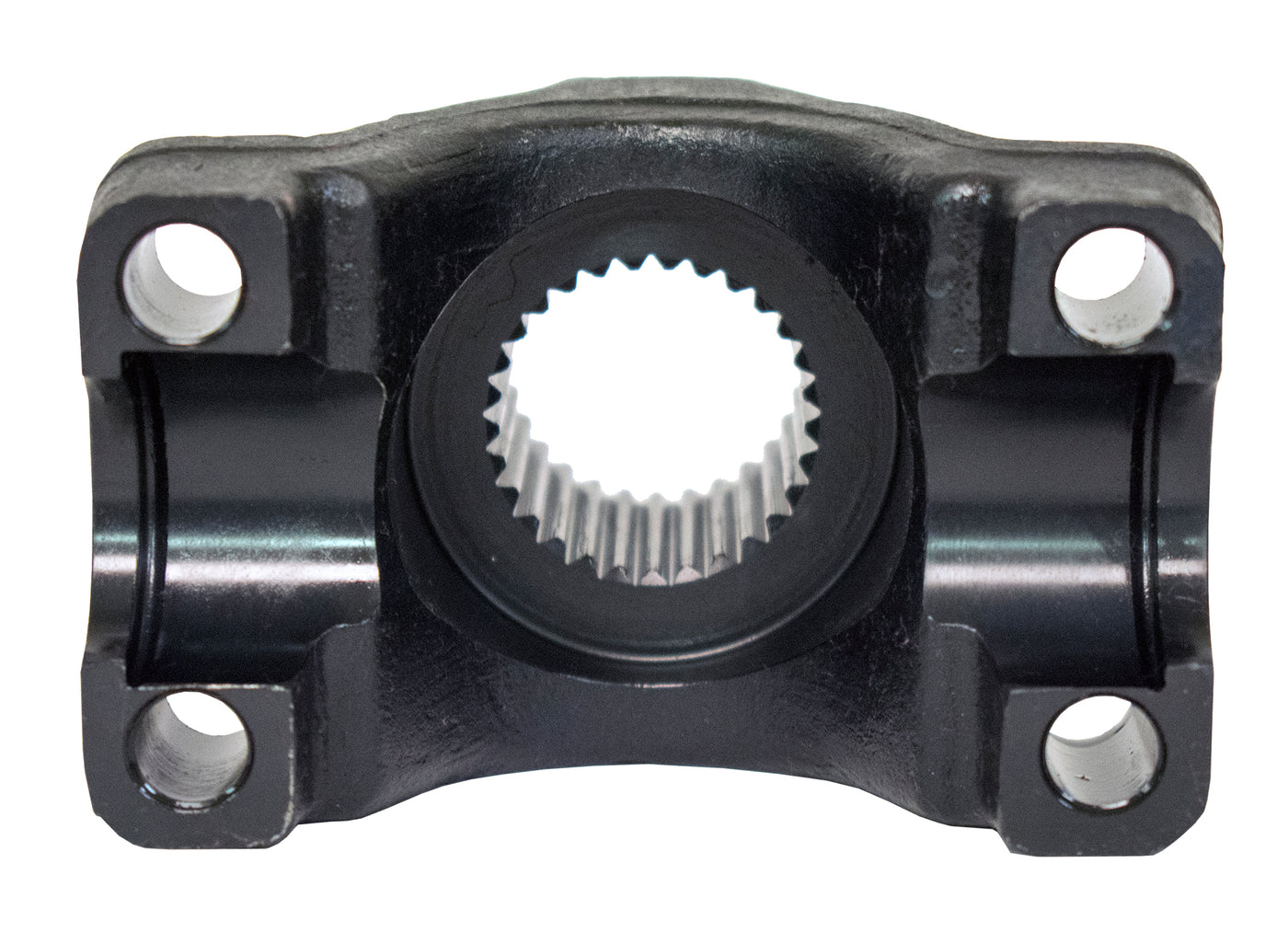

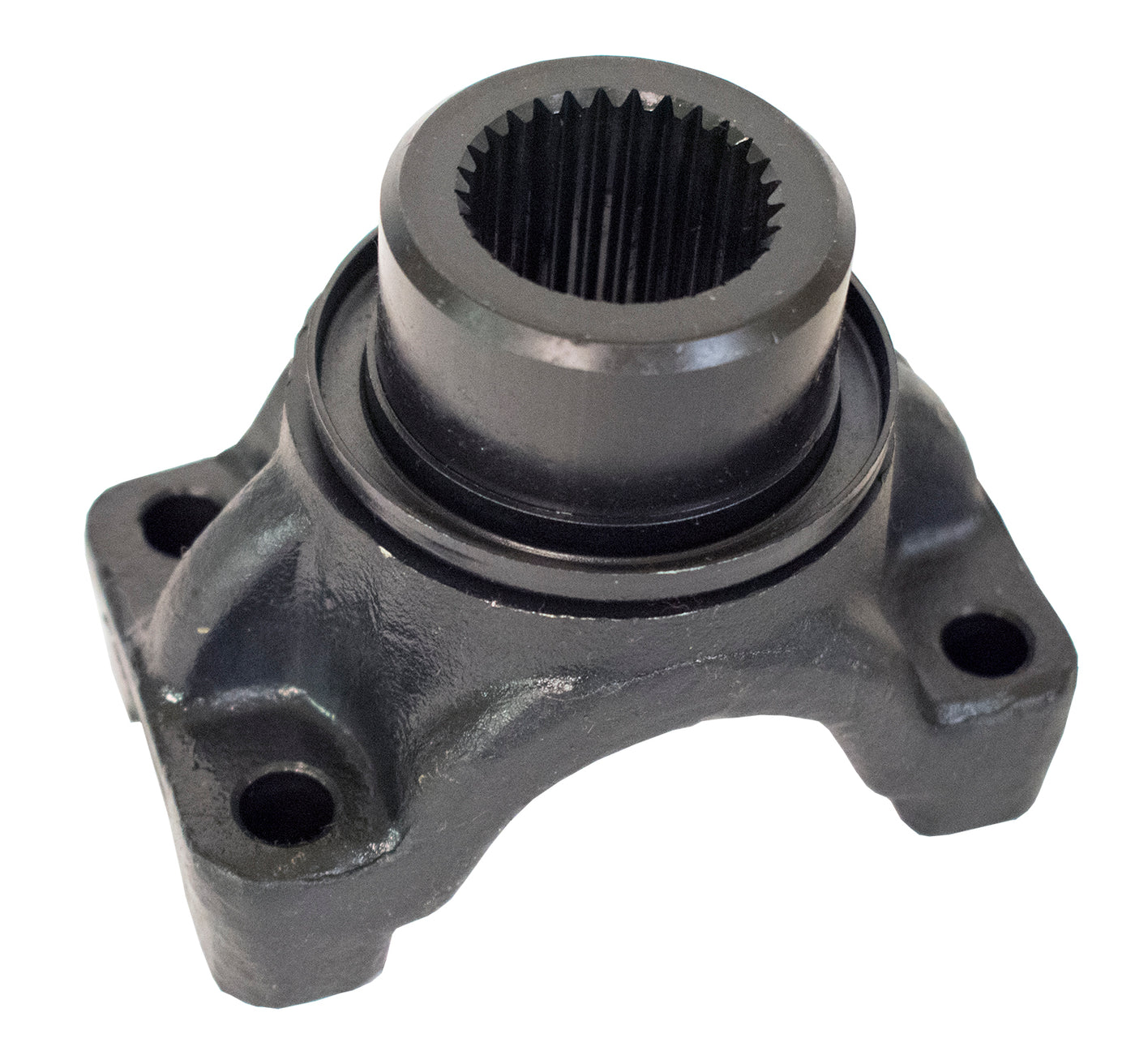

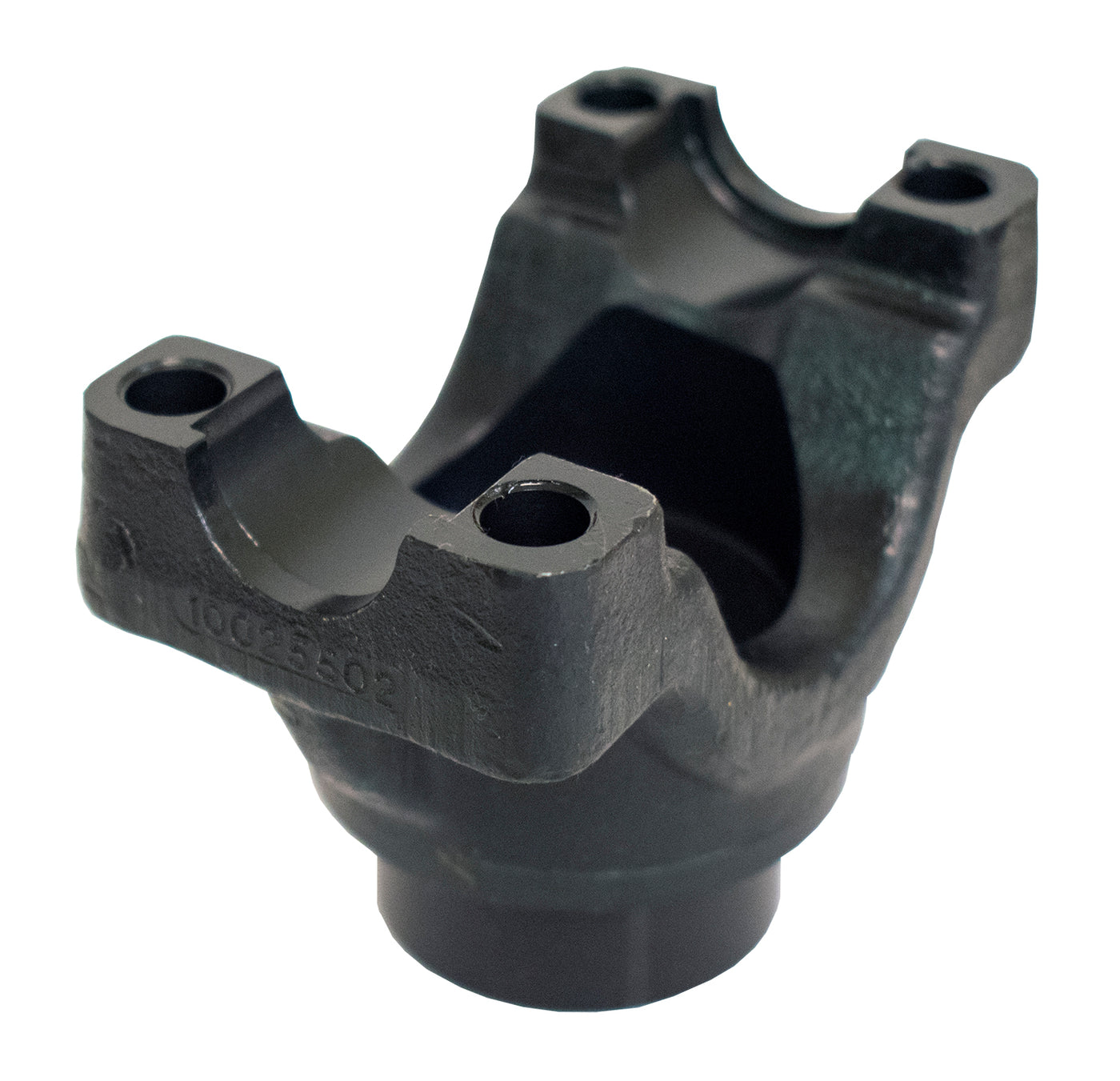

Spicer 10025502 End Yoke

Vendor: Spicer/Dana, Sku: 10025502

Product Description

Drive Shaft End Yoke / Pinion Yoke


The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.



Forged from high-quality steel and heat-treated to ensure maximum strength, Spicer pinion yokes deliver the performance and durability that you expect. Each yoke is machined to an exact tolerance, so you get a perfect fit. And with black oxide coating, these pinion yokes offer unparalleled protection against corrosion.

  • U-bolt style (Covering most popular axle models)
  • Black oxide coating (Providing added corrosion resistance)
  • Forged steel construction (Ensuring maximum strength)





t

*



End/Pinion Yoke Specifications
Spicer end yoke fits axle model Chrysler 8.75  Inch with 1350 series U-Joint and other applications with similar dimensions.

U-Joint Series: 1350
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.188 Inch
U-Joint Width (B): 3.625 Inch
End Yoke Length(C) :
- Center Line to End of Spline 		3.190 Inch
Hub Diameter (D): 1.875 Inch
Spline Diameter (E):
- From Farthest Point to Farthest Point 		1.276 Inch
Number of Splines (F): 29
Bore Length (G): 1.500 Inch
Rear Axle Type:
Chrysler 8.75 Inch,
Chrysler 9.25 Inch (Front Axle)


How to Measure a Driveshaft Slip Yoke.

Application for the 8.75" Axle, 29 spline,  Dana 1350 Series

Dodge
W100 Pickup
1957-1971, 1973
Dodge
W200 Pickup
1957-1971, 1973
Chrysler
Imperial
1961-1970,1972-1973
Chrysler
New Yorker
1961-1973
Dodge
D100 Series		 1961-1967
Dodge D100 Pickup 1969-1973
Dodge D200 Series 1961-1967
Dodge D200 Pickup 1969-1973
Dodge Dart 1961-1973
Dodge
 Polare 1961-1964
Plymouth Fury 1961-1971, 1973
Pontiac Catalina 1961-1971, 1973
Plymouth
Belvedere
 1963-1970
Dodge A100 1964-1966, 1970
Dodge A100 Truck 1964-1970
Plymouth
Barracuda

1964-1971, 1973
Dodge 		Monaco 1965-1973
Dodge 		Polara 1965-1971, 1973
Plymouth Satellite 1965-1971, 1973
Dodge Charger 1966-1973
Dodge Coronet 1966-1973
Plymouth GTX 1967-1971
Plymouth Roadrunner 1968-1971, 1973
Dodge Challenger 1970-1973
Plymouth Duster 1970-1971
Dodge B100 Van 1971-1973
Dodge B200 Van 1971-1973



****

This part is compatible with:
U-Bolt Kit: 3-94-18X

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide
