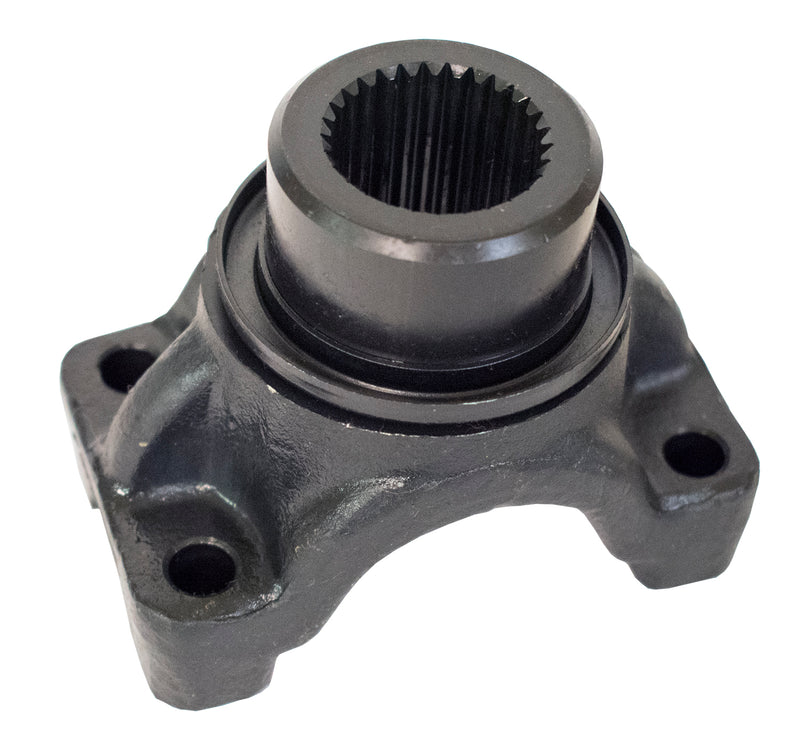

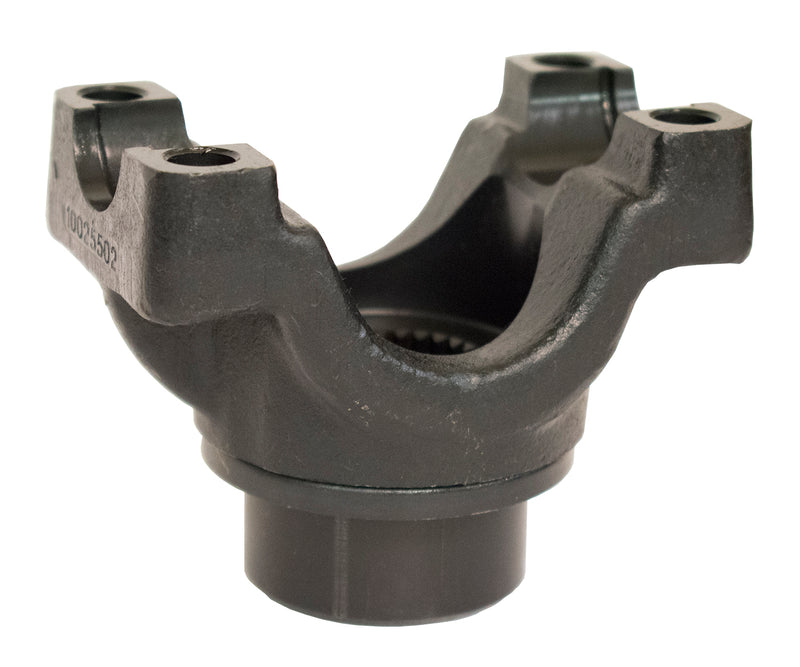

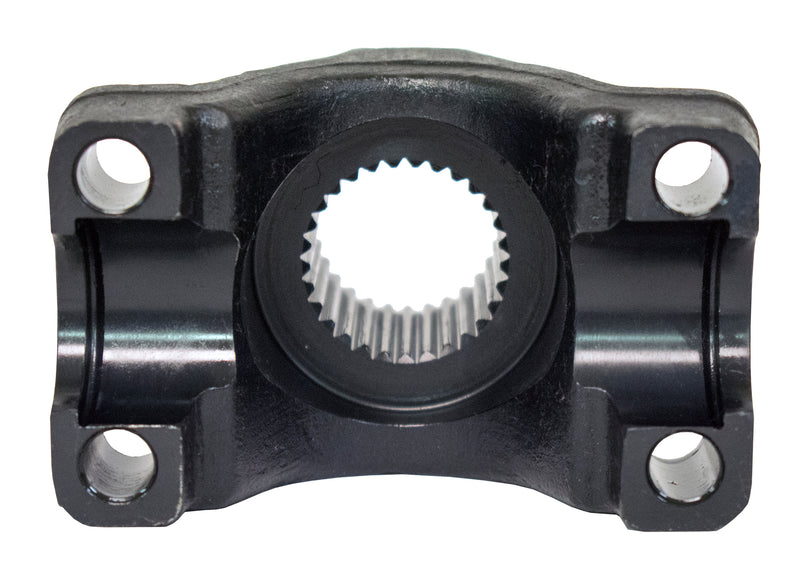

Spicer 10025466 End Yoke

Vendor: Spicer/Dana, Sku: 10025466

Product Description

Forged Pinion Yokes
A premium Spicer Performance Part.

Spicer end yoke fits axle model GM 8.5" 10 Bolt with 1350 series U-Joint and other applications with similar dimensions. 30 spline. Strap Kit included.

Forged from high-quality steel and heat-treated to ensure maximum strength, Spicer pinion yokes deliver the performance and durability that you expect. Each yoke is machined to an exact tolerance, so you get a perfect fit. And with black oxide coating, these pinion yokes offer unparalleled protection against corrosion.

  • U-bolt style (Covering most popular axle models)
  • Black oxide coating (Providing added corrosion resistance)
  • Forged steel construction (Ensuring maximum strength)
 Spicer Yoke #: 10025466
Axle Model GM 8.5" 10 Bolt
U-Joint Series 1350
Spline Count 30
CL to End Length 3.17
Slinger No
Spicer U-Bolt Strap #: 3-94-18X
Sku: 10025466
Vendor: Spicer/Dana
$223.03
Maximum quantity available reached.

DETAILS

Manufacturer: Spicer/Dana
Centerline of Joint to End of Spline (s): 3.17"
Manufacturer Part Number: 10025466
U-Joint Series: 1350
Spline Count: 30
Spline OD: 1.300"
Bore Length: 1.181"
Cap OD: 1.188"
Yoke Span: 3.625"
Hub Dia.: 1.939"
Style: Outside Snap Ring
Rear Axle Type:
GM 8.5" 10 Bolt
Joint Angle:
ø
Counterbore Depth:
ø

Bearing Strap Construction Diagram

.
