Spicer 100-4-1551-1X End Yoke
End Yoke | 100-4-1551-1x
- Series: ∙ SPL 100
- Spline Count: 39
- Spline OD: 2.024"
- Bore Length: 2.281"
- Cap OD: 1.625"
- Yoke Span: 4.957"
- Hub Dia.: 3.000"
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , SPL 100
- Spline Count: 39
- Spline OD: 2.024"
- Bore Length: 2.281"
- Cap OD: 1.625"
- Yoke Span: 4.957"
- Hub Dia.: 3.000"
- Style: Outside Snap Ring
- Rear Axle Type:
Spicer 100-28-17 Weld Yoke / Tube Yoke
Tube Yoke (Weld Yoke) | 100-28-17
- Series: SPL 100
- Type: Outside Snap Ring
- Tube OD: 4.00" OD
- Material: Steel
- Series: SPL 100
- Type: Outside Snap Ring
- Tube OD: 4.00" OD
- Material: Steel

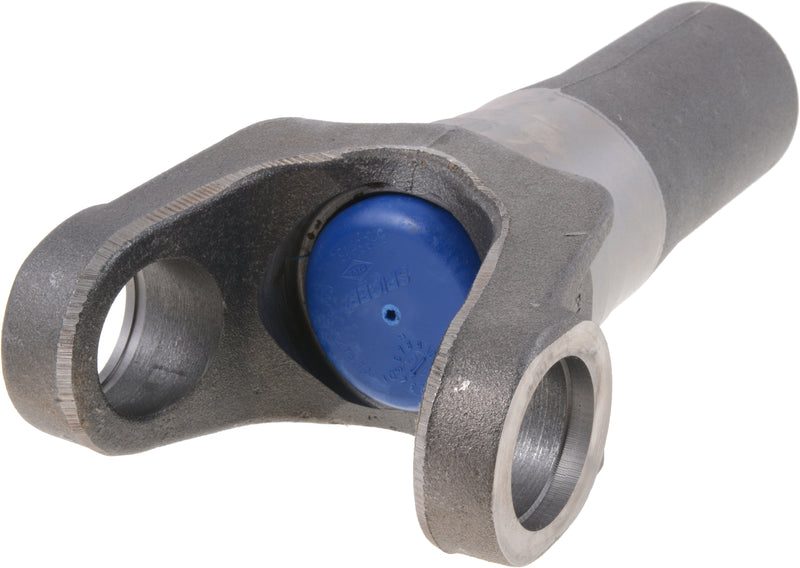

Spicer 100-3-41X Slip Yoke
Mid Shaft Slip Yoke | 100-3-41X
- Series: SPL 100
- Spline Count: 30
- Spline Dia.: 1.965”
- Grease: Greasable
- U-joint: 1.625" X 4.957"
- Length: 9.681"
- Outside Snap Ring
- Series: SPL 100
- Spline Count: 30
- Spline Dia.: 1.965”
- U-joint: 1.625" X 4.957"
- Length: 9.681"
- Outside Snap Ring
