AAM 26060884 End Yoke (Obsolete)

Vendor: AAM, Sku: 26060884

Product Description

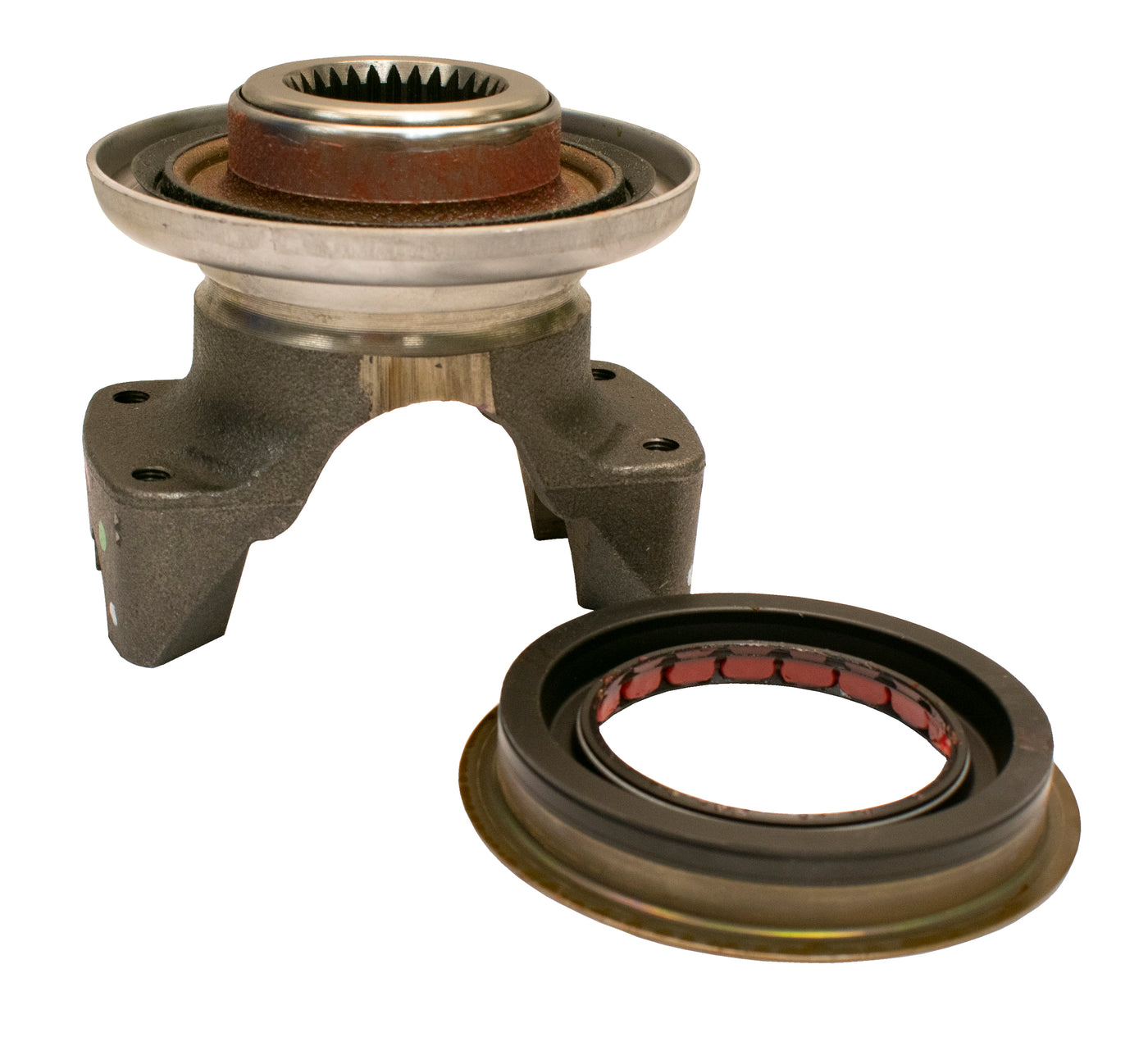

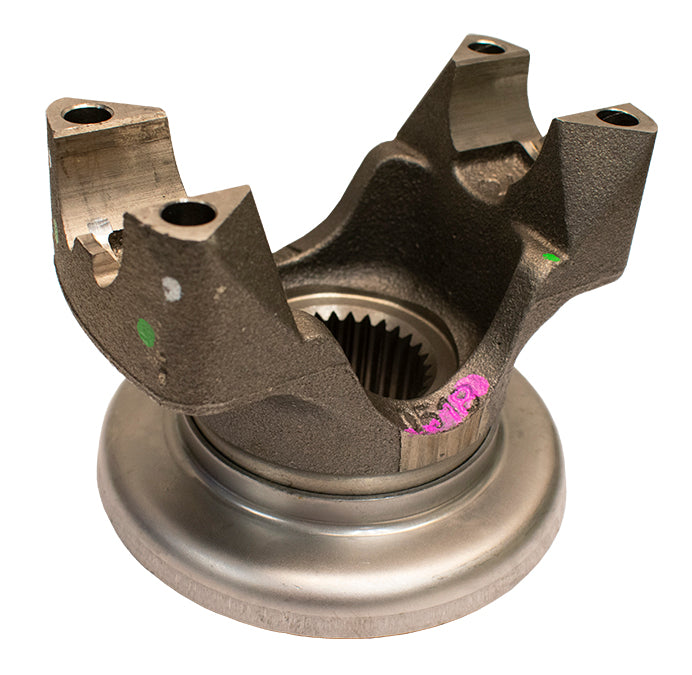

Drive Shaft End Yoke / Pinion Yoke

This part has been discontinued by the manufacturer.

If you have any questions we are here to help:
 CHAT | PHONE (574)287-9650 | CONTACT US




The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.




t

*



End/Pinion Yoke Specifications

U-Joint Series: 1415 (1410)
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.188 Inch
U-Joint Width (B): 4.178 Inch
End Yoke Length(C) :
- Center Line to End of Spline
3.750 Inch
Hub Diameter (D): 2.370 Inch
Spline Diameter (E):
- From Farthest Point to Farthest Point
1.590 Inch
Number of Splines (F): 30
Bore Length (G): 1.630 Inch
Rear Axle Type:
GM 10.50 Inch, GM 11.50 Inch

How to Measure a Driveshaft Slip Yoke.

Application for the 10.5"

1 Tone GM Pickup: Rear 1973-2006
1 Ton GM Van: Rear
1973-2004
3/4 Ton GM Pickup: Rear 1973-2006
3/4 Ton Gm Van:
Rear 1973-2006


Application for the 11.5"

1 Ton GM Pickup: Rear 2000-2006
3/4 Ton GM Pickup:
Rear 2000-2006


****


This part is compatible with:
SKU: 26060977 10.5 Inch Pinion Sleeve

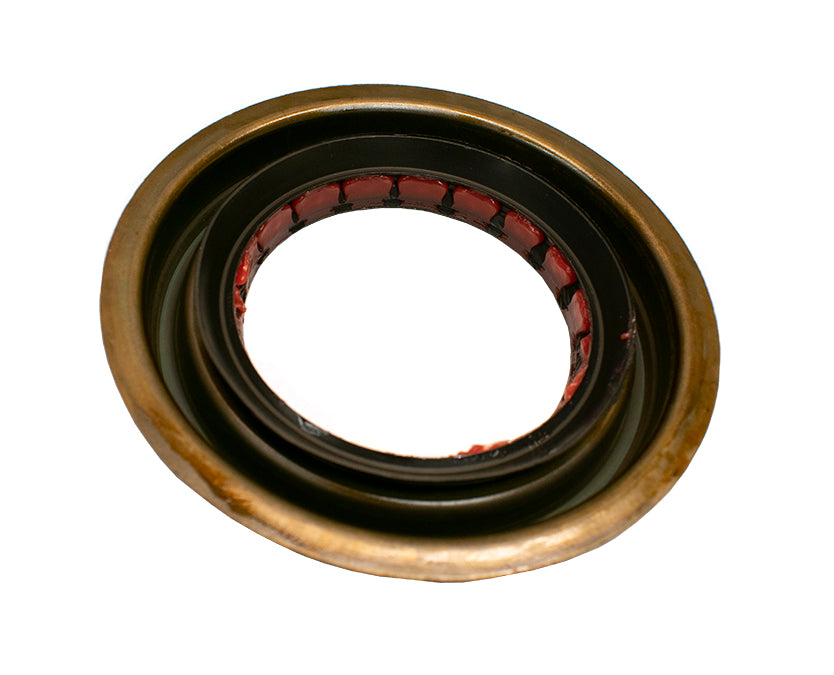

SKU: 26064030 10.5 Inch /11 Inch Pinion Seal
SKU: 1-0020 Bearing Strap Kit

Alternate Part Numbers:
PTI 4104-04 End Yoke
12471684, 26064016, 40011375, 74004017

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide
