neapco
Neapco N2-4-JK03 End Yoke
End Yoke | N2-4-JK03
- Series: ∙ 1310
- Spline Count: 32
- Spline OD: 1.401”
- Bore Length: 2.000”
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.940”
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , 1310
- Spline Count: 32
- Spline OD: 1.401”
- Bore Length: 2.000”
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.940”
- Style: Outside Snap Ring
- Rear Axle Type:
Neapco N2-4-JK06 End Yoke
End Yoke | N2-4-JK06
- Series: ∙ 1310
- Spline Count: 34
- Spline OD: 1.250”
- Bore Length: 1.844”
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.844”
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , 1310
- Spline Count: 34
- Spline OD: 1.250”
- Bore Length: 1.844”
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.844”
- Style: Outside Snap Ring
- Rear Axle Type:
Neapco N2-4-JL02-1X End Yoke
End Yoke | N2-4-JL02-1X
- Series: ∙ 1310
- Spline Count: 28
- Spline OD: 1.496"
- Bore Length: 1.71"
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 2.000"
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , 1310
- Spline Count: 28
- Spline OD: 1.496"
- Bore Length: 1.71"
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 2.000"
- Style: Outside Snap Ring
- Rear Axle Type:
Neapco N2-4-JL03-1X End Yoke
End Yoke | N2-4-JL03-1X
- Series: ∙ 1310
- Spline Count: 25
- Spline OD: 1.250"
- Bore Length: 1.71"
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.95"
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , 1310
- Spline Count: 25
- Spline OD: 1.250"
- Bore Length: 1.71"
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.95"
- Style: Outside Snap Ring
- Rear Axle Type:
Neapco N2-4-JL04-1X End Yoke
End Yoke | N2-4-JL04-1X
- Series: ∙ 1310
- Spline Count: 28
- Spline OD: 1.496”
- Bore Length: 1.84"
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 2.000"
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , 1310
- Spline Count: 28
- Spline OD: 1.496”
- Bore Length: 1.84"
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 2.000"
- Style: Outside Snap Ring
- Rear Axle Type:
Neapco N2-4-JL05-1X End Yoke
End Yoke | N2-4-JL05-1X
- Series: ∙ 1310
- Spline Count: 24
- Spline OD: 1.250”
- Bore Length: 1.43”
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.90”
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , 1310
- Spline Count: 24
- Spline OD: 1.250”
- Bore Length: 1.43”
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.90”
- Style: Outside Snap Ring
- Rear Axle Type:

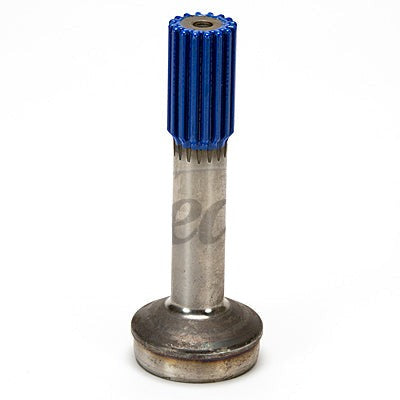

Neapco N2-40-2211 Tube Shaft
Midship Tube Shaft | N2-40-2211
- Spline: 16
- Spline Length: 2.000"
- Length: 6.125"
- Spline Diameter: 1.250"
- Tube Diameter: 2.500"
- Butt Diameter: 2.38"
- Spline: 16
- Spline Length: 2.000"
- Spline Diameter: 1.250"
- Length: 6.125"
- Tube Diameter: 2.500"
- Butt Diameter: 2.38"

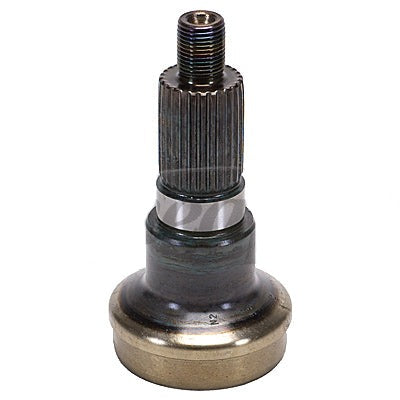

Neapco N2-53-1011-1 Midship Tube Shaft (Obsolete)
Midship Tube Shaft | N2-53-1011-1
- Spline: 26
- Spline Length: 1.380"
- Length: 3.50"
- Thread Type: Male
- Spline Diameter: 1.125"
- Tube Diameter: 2.500"
- Butt Diameter: 2.38"
- Thread Size: 0.63"-18
- Spline: 26
- Spline Length: 1.380"
- Spline Diameter: 1.125"
- Length: 3.50"
- Tube Diameter: 2.500"
- Butt Diameter: 2.38"
- Thread Type: Male
- Thread Size: 0.63"-18

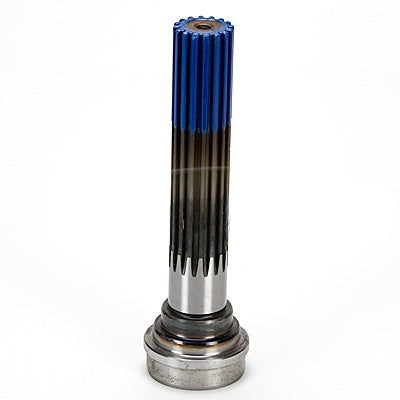

Neapco N2-53-471 Midship Tube Shaft
Midship Tube Shaft | N2-53-471
- Spline: 16
- Spline Length: 5.410"
- Length: 8.00"
- Spline Diameter: 1.375"
- Tube Diameter: 2.500"
- Butt Diameter: 2.34"
- Spline: 16
- Spline Length: 5.410"
- Spline Diameter: 1.375"
- Length: 8.00"
- Tube Diameter: 2.500"
- Butt Diameter: 2.34"

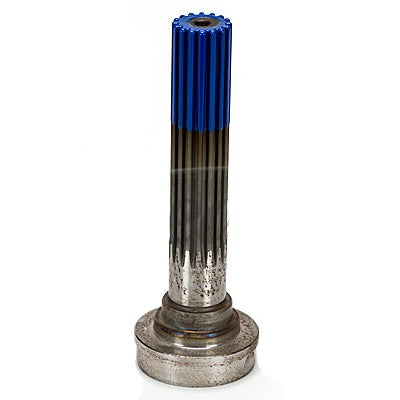

Neapco N2-53-491 Midship Tube Shaft
Midship Tube Shaft | N2-53-491
- Spline: 16
- Spline Length: 5.406"
- Length: 8.00"
- Spline Diameter: 1.375"
- Tube Diameter: 3.000"
- Butt Diameter: 2.875"
- Spline: 16
- Spline Length: 5.406"
- Spline Diameter: 1.375"
- Length: 8.00"
- Tube Diameter: 3.000"
- Butt Diameter: 2.875"
Neapco N2-53-501 Midship Tube Shaft
Midship Tube Shaft | N2-53-501
- Spline: 16
- Spline Length: 5.410"
- Length: 8.00"
- Spline Diameter: 1.375"
- Tube Diameter: 3.000"
- Butt Diameter: 2.84"
- Spline: 16
- Spline Length: 5.410"
- Spline Diameter: 1.375"
- Length: 8.00"
- Tube Diameter: 3.000"
- Butt Diameter: 2.84"
Neapco N2-53-691 Midship Tube Shaft
Midship Tube Shaft | N2-53-691
- Spline: 16
- Spline Length: 2.500"
- Length: 8.84"
- Spline Diameter: 1.375"
- Tube Diameter: 3.000"
- Butt Diameter: 2.88"
- Spline: 16
- Spline Length: 2.500"
- Spline Diameter: 1.375"
- Length: 8.84"
- Tube Diameter: 3.000"
- Butt Diameter: 2.88"
