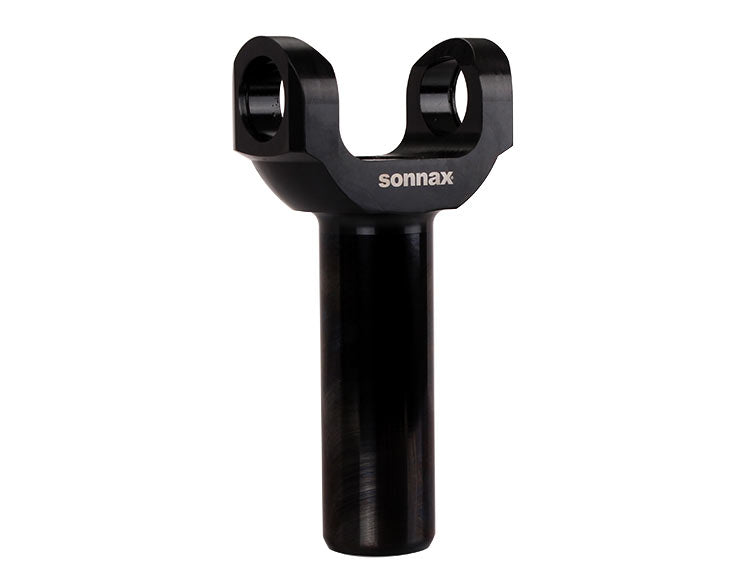

Sonnax T3-3-3931HP Trans Slip Yoke

Vendor: Sonnax, Sku: T3-3-3931HP

Product Description

Sonnax Drive Shaft Transmission Slip Yoke

Sonnax Performance Slip Yokes

Quality & Engineering You Can Trust

A Sonnax slip yoke is NEVER the weak link in your driveline. Choose from bushing and roller bearing yokes for dozens of popular applications, every one optimized to drive power smoothly and reliably from transmission to driveshaft.

  • Fully machined from billet steel for enhanced strength & durability
  • Leak-free plug tested to 40 psi for optimum sealing
  • 1330 & 1350 Series yokes are chromoly steel



Transmission & Transfer Case Applications:

Fits various Chrysler, Dodge and Ram transmission with 30 spline output shafts including A518, A833, Mopar 727, A727, 45RFE46RH, 47RH, 47RE, 48RE, 48DG8, 545RFE, 545DGQ65RFE, Tremec T56, and more.



Series: 1350
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.188 Inch
U-Joint Width (B): 3.625 Inch
Slip Yoke Length (C):
(Center Line to End of Spline)
6.630 Inch
Barrel Diameter (D): 1.680 Inch
Spline Diameter: 1.326 Inch
Number of Spline (F)*: 30
Spline Counter Bore: No
Vehicle Make: Dodge / Chrysler
Viper and SRT10 with the small 1.680" seal

VMRS: 024002038

 * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.

Driveshaft Slip Yoke Diagram Outside Snap Ring Style

Some slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.

outside snap ring slip yokeDriveshaft Slip Yoke Diagram Spline Count
