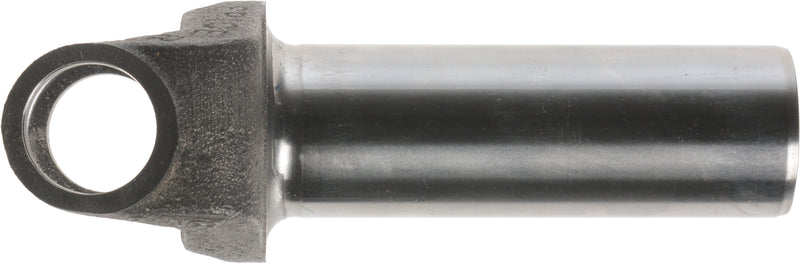

Spicer 2-3-5981X Trans Slip Yoke

Vendor: Spicer/Dana, Sku: 2-3-5981X

Product Description

Spicer/Dana Drive Shaft Transmission Slip Yoke

OEM slip yokes are sometimes up to 8″ long with a counterbore inside the yoke. These yokes are no longer available.  While shorter than OEM yoke, this yoke is not counterbored and will therefore perform as well or better than the old longer yokes.

This is a genuine Spicer built driveshaft component. Spicer parts provide the enhanced performance and extended durability that you expect from the leader in the drivetrain industry.

Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance.

Transmission and Transfer Case Applications:

Fits various 28 spline  Ford, Lincoln, Mercury transmission cases including AOD, C4, T-5, T-10, Top Loader, Tremec Tr3550, and some Transfer cases.



Series: 1330
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.062 Inch
U-Joint Width (B): 3.625  Inch
Slip Yoke Length (C):
(Center Line to End of Spline)
5.906 Inch
Barrel Diameter (D): 1.500 Inch
Spline Diameter (E): 1.220 Inch
Number of Spline*: 28 (27 with blind spot - see note below*)
Spline Counter Bore: No
Material: Steel
Vehicle Make: Ford

VMRS: 024002038

 * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.

Driveshaft Slip Yoke Diagram Outside Snap Ring Style

Some slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.

outside snap ring slip yokeDriveshaft Slip Yoke Diagram Spline Count

0


Alternate Part Option:
Neapco N2-3-5981X Trans Slip Yoke
Sonnax T2-3-5981HP Trans Slip Yoke
PTI 3303-283 Trans Slip Yoke (Length: 7.860 Inches)
