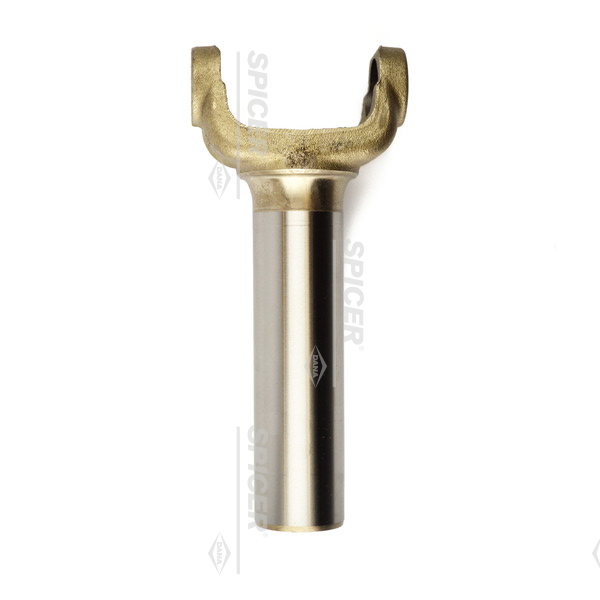

Spicer 2-3-14031X Trans Slip Yoke

Vendor: Spicer/Dana, Sku: 2-3-14031X

Product Description

Transmission Applications: Fits various 30 spline output shafts for Dodge transmissions. Fits Transmission Models , 45RFE , 46RE , 46RH , 47RE , 47RH , 545RFE , 65RFE , A518 , Doug Nash , SRT10 , TorqueFlite 727

Spicer/Dana Drive Shaft Transmission Slip Yoke
SKU: 2-3-14031X

Spicer Slip Yoke for Dodge vehicles with 1330 Series U Joints, 30 spline and matching measurement specs.

This is a genuine Spicer built driveshaft component. Spicer parts provide the enhanced performance and extended durability that you expect from the leader in the drivetrain industry.

Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance.

Transmission Applications:

Transmission Applications: Fits various 30 spline output shafts for Dodge Ram 1500 and Dakota Pickup transmissions. It may also fit these transmissions A518, 45RFE, 46RH, 46RE, 47RH, 47RE, 545RFE, and 65RFE. Fits Doug Nash, Dodge Viper and SRT10 with the small 1.680" seal.

This slip yoke does NOT fit Mopar 727 or A833 transmissions.



Series 1330
Width 3.625 IN
Bearing Cap Diameter 1.063 IN
Outside Yoke Dimension
U-Joint Lock Up
3.875 / IN
Bearing Cap Diameter 1.63 IN
Vehicle Make Dodge
Center Line to End of Spline  8.030 IN

Spline Outside Diameter

1.284 IN
Hub Diameter 1.680 IN
Number of Spline* 29/30 I
Spline Type Full Spline
Style Outside Snap Ring
Material Steel / Nickel Plated

VMRS: 024002038

 * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.

Some slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.

outside snap ring slip yokeSlip Yoke
