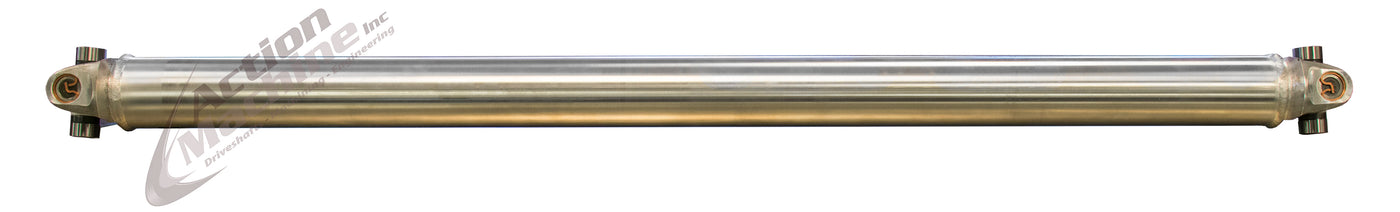

Custom Driveshaft - Aluminum, 3" OD, 1310 Series

Product Description

Custom Driveshaft - Aluminum, 3" OD, 1310 Series

FREE GROUND SHIPPING INSIDE THE USA
(This product does not qualify for international shipping)

Weld Yoke Material
Aluminum 6061-T6 Forged Yoke
Tube Material .125 Wall 6061-T6 Seamless
Tube Outside Diameter 3.0" OD (Measuring Guide - Tube OD)
U-Joint Spicer/Dana
1310 Series (Measuring Guide - U-Joint)
U-Joint Size: 1 1/16" Cap x 3 7/32"
Premium Non-Greasable
Max Custom Length

Up to 63 inches center of u-joint to center of u-joint.
Driveshaft length required for build.





Quality Aluminum Driveshaft

When you need a driveshaft that is lightweight, can handle higher torque loads and can give you a nice polish finish, then consider an Action Machine aluminum driveshaft. The Action Machine aluminum driveshaft is ideally suited for street rods, show cars, race cars and as OEM aluminum replacements. While other driveline shops may use .065" wall or .083" wall tubing for their aluminum driveshafts, our volume purchasing allows us to use .125" wall tube for the same price as the thinner tube. You have the best in aluminum performance no matter your application.

  • Free Ground Shipping
  • Seamless 6061-T6 Tubing
  • Precision Balancing
  • Premium Spicer U-Joints
  • Variable Length Options
  • Lifetime Warranty on our Welds
  • Fast Turn Around Time
  •

    How to Measure Your Driveshaft Length

    CAUTION: Make sure your tape measure is directly over the center of the u-joint bearing on both ends of the driveshaft.

     Center of U-joint to Center of U-Joint

    How to Measure for Overall Length

    Overall Driveshaft Length

    Vehicle Driveshaft Measuring Guide
      - Over all driveshaft length measured on the vehicle. (Click Here)

    ***

    ****

    Sku: 3A1310
    $344.77
    Maximum quantity available reached.

    How to Place a Custom Driveshaft Order

    Add your Driveshaft and critical parts to the cart:

    • Driveshaft
    • End Yoke
    • Slip Yoke

    Place your order, and check out.

    Respond to follow up E-mail with overall driveshaft dimensions.

    Use this guide to measure driveshaft length for most cars, vans, 2WD trucks, and some 4WD front and rear shafts.

    Measure Instructions: It is important to measure the driveshaft length when the vehicle’s axle is in the normal riding position. The axle must be supported on safety stands - not hanging down.



    Driveshaft Measuring Guide

     Transmission Output Type -
    SEAL

    Measurement (A) - DRIVESHAFT LENGTH:
    Measure from end of rubber seal on the transmission to the flat face of the end yoke or flange on the differential.

    Measurement (B) - SPLINE EXTRUSION LENGTH:
    Measure from end of rubber seal to end the of the transmission output. If spline is recessed in rubber seal, measurement can be noted as ø.

     Transmission Output Type -
    RUBBER BOOT EXTENSION

    Measurement (A) - DRIVESHAFT LENGTH:
    Measure from end of rubber boot extension on the transmission to the flat face of the end yoke or flange on the differential.

    Measurement (B) - SPLINE EXTRUSION LENGTH:
    Measure from end of rubber boot extension on the end of transmission output. If spline is recessed in rubber boot extension, enter ø.





     Other Measuring Guides





    U-Joint Identifier

    Choose the Style of U-Joint Required
