AAM 40081693 Midship Tube Shaft

Vendor: AAM, Sku: 40081693

Previous Product | Next Product
Product Description
This part is drop shipped from the manufacturer and will ship at the earliest available time. Average time to ship is 3-5 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. CHAT | (574)287-9650
Alternate Part Number: AAM 40021330 Midship Tube Shaft

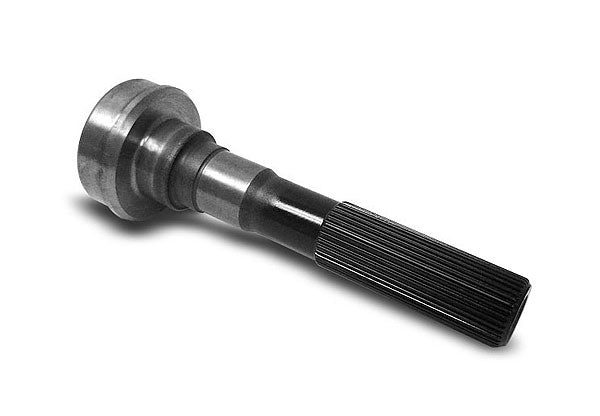

Midship Tube Shaft

Contains Bearing Dust Shield (40023510)

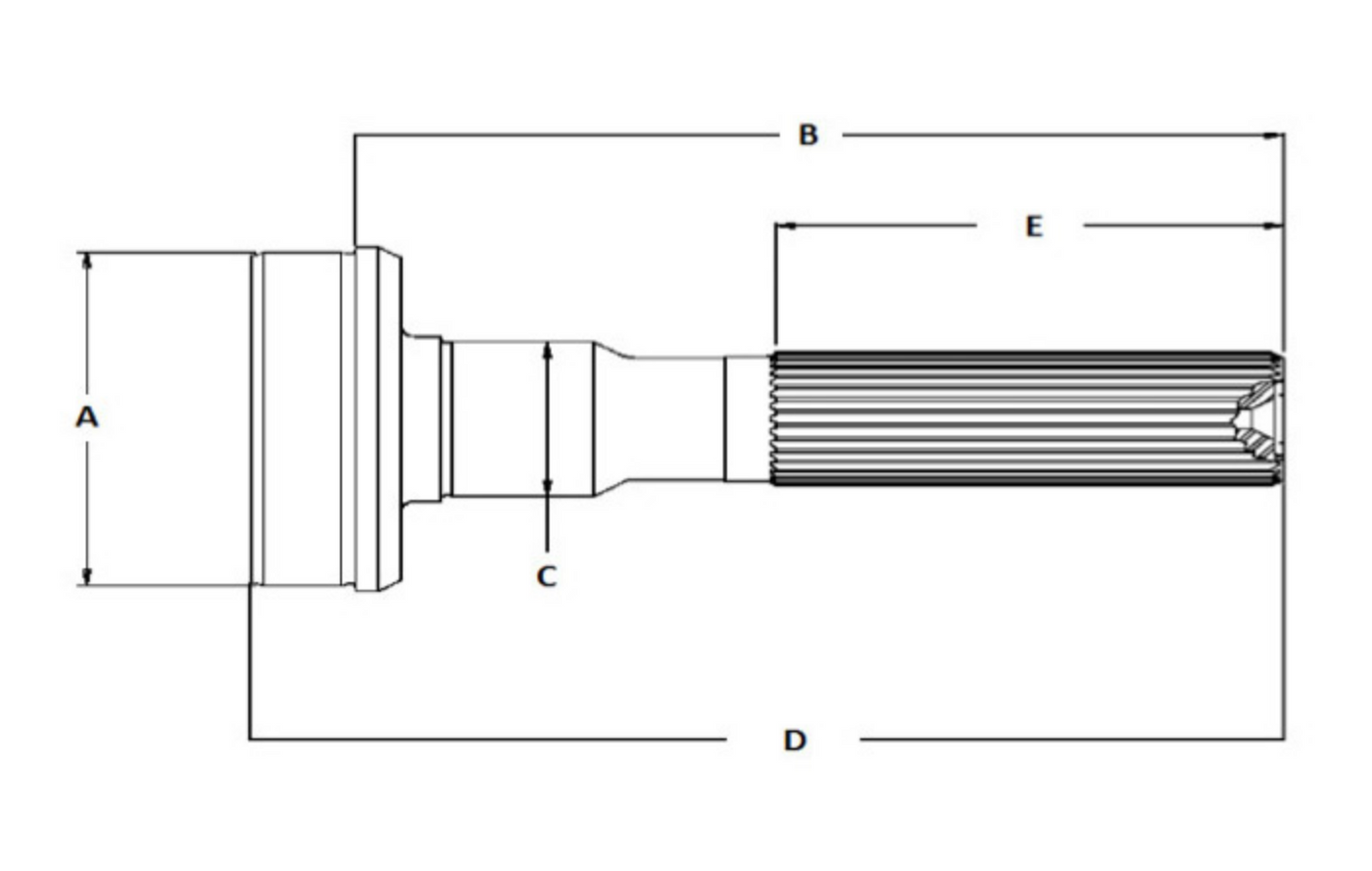

Specifications:

Bearing Diameter (C): 1.574 Inch (40 mm)
Butt Diameter (A): 3.344 Inch (84.93 mm)
End of Spline to Point of Weld (B): 8.875 Inch (225.425 mm)
Length of Shoulder: 1.157 Inch (29.388 mm)
Length of Spline (E):  3.375 Inch (85.725 mm)
Spline Diameter: 1.545 Inch (39.243 mm)
Number Teeth: 36
Tubing Diameter:  3.500 Inch
Tubing Wall: 0.083 Inch
Vehicle Make: GM

VMRS: 024-002-004

Alternate Part Numbers:
AAM 40021330 Midship Tube Shaft
PTI 4853-3635-1 Midship Tube Shaft
PTI 4853-3635-1V Midship Tube Shaft (vented)

Compatible Part Numbers:
AAM 40081691 (spline shaft)
AAM 40023510 (shield)

Sku: 40081693
Vendor: AAM
$117.83
