AAM 40020344 Tube Shaft

Vendor: AAM, Sku: 40020344

Product Description

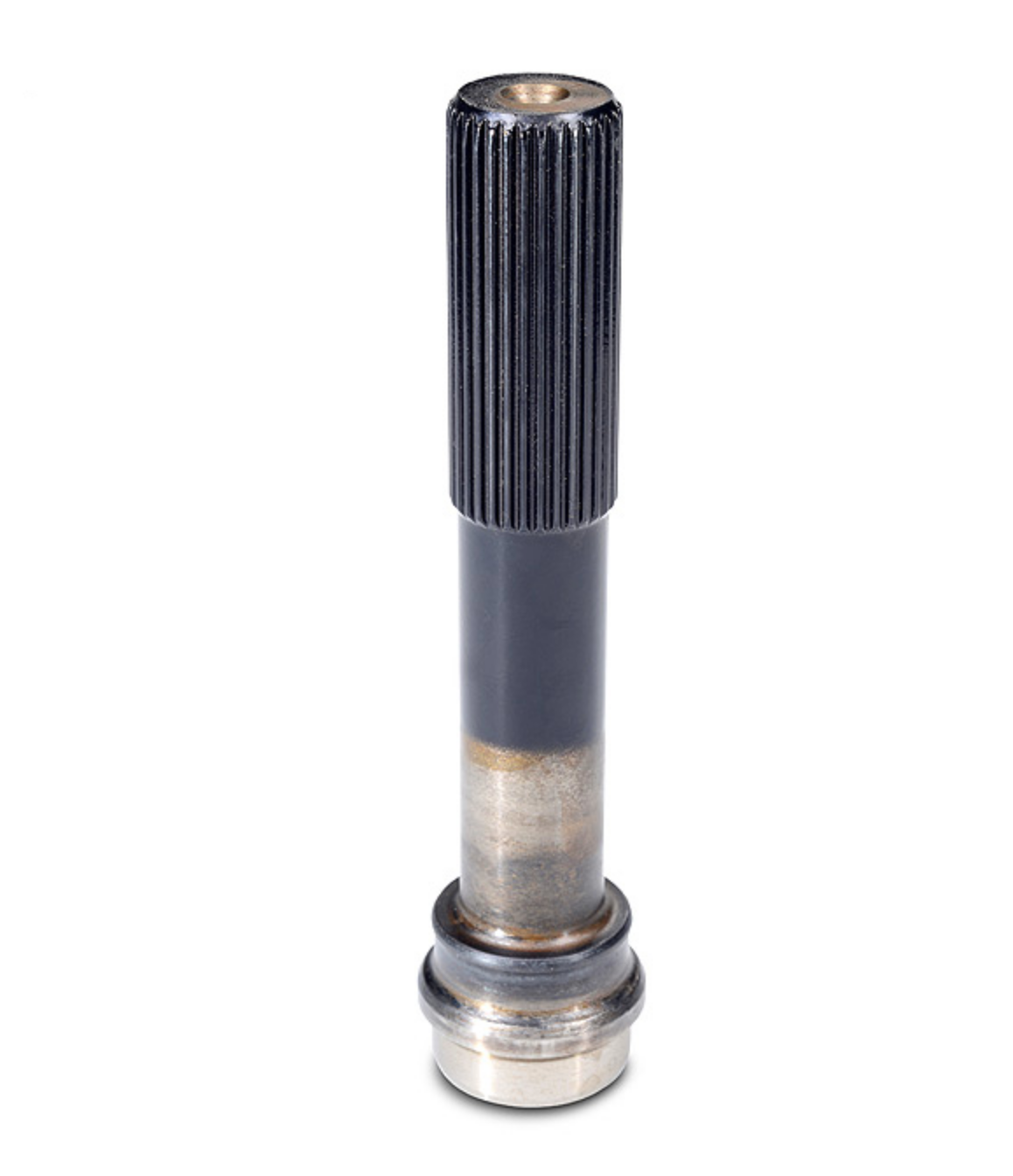

Driveshaft Slip Shaft

Specifications:

Spline Count: 32
Vehicle Make: Chrysler

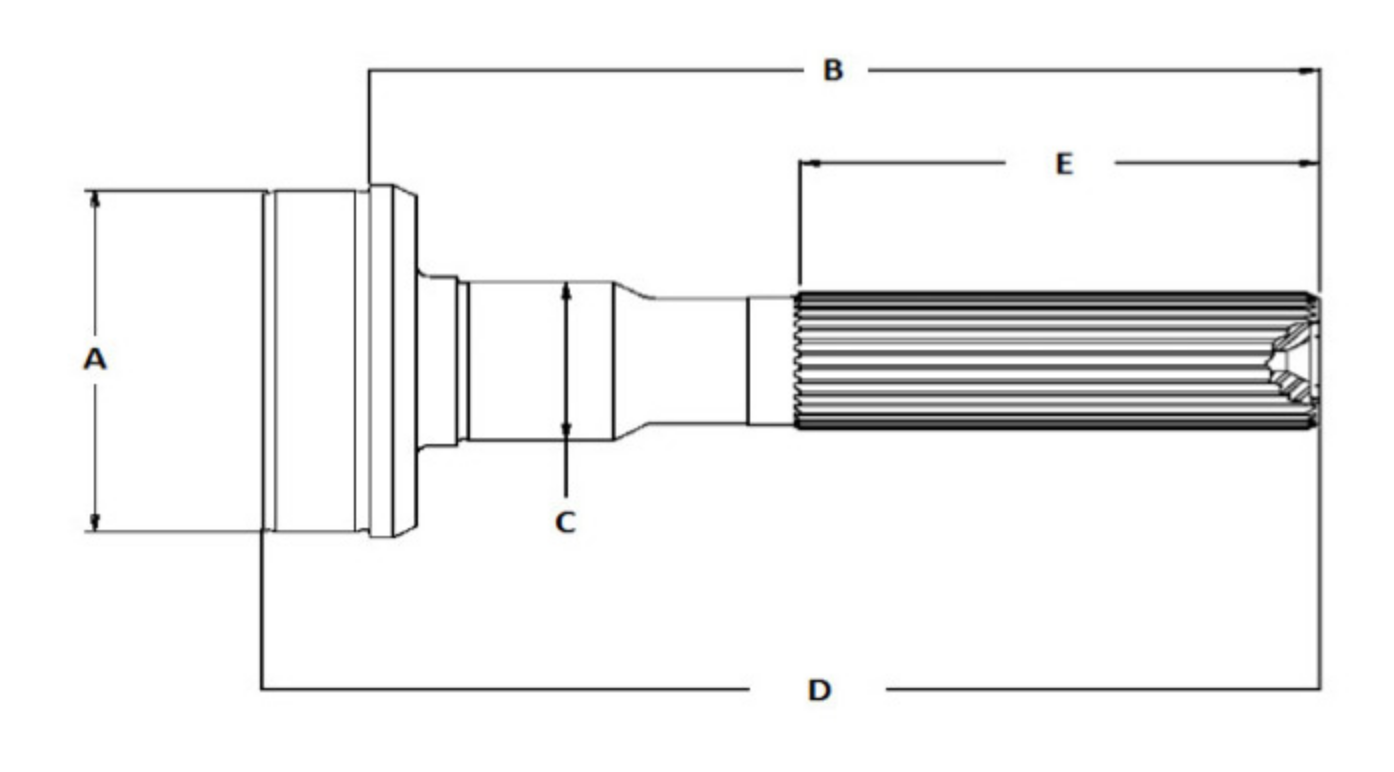

Spline Length (E): 3.350 (85.10 mm)
Spline Diameter: 1.240 Inch (31.50 mm)
Butt Diameter (A): 1.768 Inch ( 44.92 mm)
Tube Diameter: 2.000 Inch
Tube Wall: 0.125 Inch
Length (End to Weld) (B): 8.110 Inch ( 206.00 mm)
End to Radius: 7.125 Inch

VMRS: 024-002-004


Alternate Part Number:
PTI 3140-3220 Tube Shaft
74080344
Sku: 40020344
Vendor: AAM
$73.23
