Flange Yokes
Use the filters below to help narrow your selection.
A driveshaft flange yoke is a critical component that connects the driveshaft to the transmission, transfer case, differential, or other drivetrain part using a bolted flange. It ensures a secure and smooth transfer of rotational power, allowing for necessary movement in the driveline. Whether you're replacing a worn yoke or upgrading your drivetrain, selecting the correct flange yoke is essential for proper fit and performance. Use the filters below to narrow down your options by series, vehicle, bolt pattern, material, and more to find the exact part you need.
Free shipping on all orders over $100.00 within the USA.
If you do not see the flange yoke that you are looking for please contact us for assistance.
Hours: Monday - Friday, 7:00 am to 4:30 pm EST
CONTACT US | CHAT | (574) 287-9650
|
|
Flange Yokes
Spicer 3-2-119 Flange Yoke
Flange Yoke | 3-2-119
- Series: 1350
- Pilot Dia.: 2.750" M
- Outside Snap Ring
- U-joint: 1.188" X 3.625"
- Bolt Circle: 3.750"
- Manufacturer: Spicer/Dana
- Series: 1350
- Pilot Dia.: 2.750" M
- Outside Snap Ring
- Cap: 1.188" Width: 3.625"
- Bolt Circle: 3.750"
- Manufacturer: Spicer/Dana

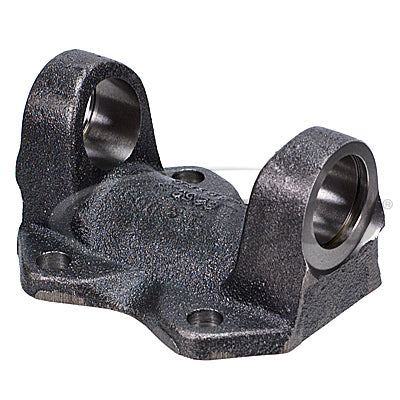

Neapco N3-2-159 Flange Yoke
Flange Yoke | N3-2-159
- Series: 1410
- Pilot Dia.: 2.750" M
- Outside Snap Ring
- U-joint: 1.188" X 4.188"
- Bolt Circle: 3.750"
- Manufacturer: Neapco
- Series: 1410
- Pilot Dia.: 2.750" M
- Outside Snap Ring
- Cap: 1.188" Width: 4.188"
- Bolt Circle: 3.750"
- Manufacturer: Neapco
Neapco N3-2-119 Flange Yoke
Flange Yoke | N3-2-119
- Series: 1350
- Pilot Dia.: 2.750" M
- Outside Snap Ring
- U-joint: 1.188" X 3.625"
- Bolt Circle: 3.750"
- Manufacturer: Neapco
- Series: 1350
- Pilot Dia.: 2.750" M
- Outside Snap Ring
- Cap: 1.188" Width: 3.625"
- Bolt Circle: 3.750"
- Manufacturer: Neapco

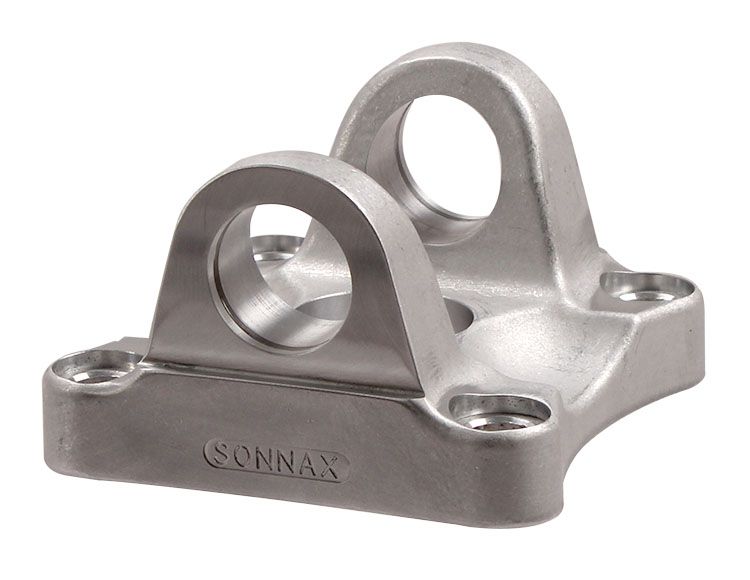

Sonnax T3-2-119A Flange Yoke
Flange Yoke | T3-2-119A
- Series: 1350
- Pilot Dia.: 2.750" M
- Outside Snap Ring
- U-joint: 1.188" X 3.625"
- Bolt Circle: 3.750"
- Manufacturer: Sonnax
- Series: 1350
- Pilot Dia.: 2.750" M
- Outside Snap Ring
- Cap: 1.188" Width: 3.625"
- Bolt Circle: 3.750"
- Manufacturer: Sonnax
Spicer 3-2-159 Flange Yoke
Flange Yoke | 3-2-159
- Series: 1410
- Pilot Dia.: 2.750" M
- Outside Snap Ring
- U-joint: 1.188" X 4.188"
- Bolt Circle: 3.750"
- Manufacturer: Spicer/Dana
- Series: 1410
- Pilot Dia.: 2.750" M
- Outside Snap Ring
- Cap: 1.188" Width: 4.188"
- Bolt Circle: 3.750"
- Manufacturer: Spicer/Dana

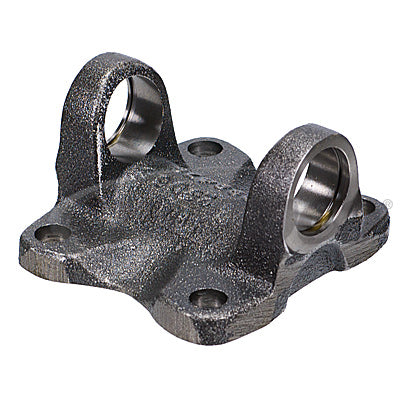

Neapco N2-2-479 Flange Yoke
Flange Yoke | N2-2-479
- Series: 1310
- Pilot Dia.: 2.750" M
- Outside Snap Ring
- U-joint: 1.063" X 3.219"
- Bolt Circle: 3.750"
- Manufacturer: Neapco
- Series: 1310
- Pilot Dia.: 2.750" M
- Outside Snap Ring
- Cap: 1.063" Width: 3.219"
- Bolt Circle: 3.750"
- Manufacturer: Neapco
Spicer 2-2-489 Flange Yoke
Flange Yoke | 2-2-489
- Series: 1330
- Pilot Dia.: 2.750" M
- Outside Snap Ring
- U-joint: 1.063" X 3.625"
- Bolt Circle: 3.674"
- Manufacturer: Spicer/Dana
- Series: 1330
- Pilot Dia.: 2.750" M
- Outside Snap Ring
- Cap: 1.063" Width: 3.625"
- Bolt Circle: 3.674"
- Manufacturer: Spicer/Dana
Spicer 3-2-809 Flange Yoke
Flange Yoke | 3-2-809
- Series: 1350
- Pilot Dia.: 2.750" M
- Outside Snap Ring
- U-joint: 1.188" X 3.625"
- Bolt Circle: 3.750"
- Manufacturer: Spicer/Dana
- Series: 1350
- Pilot Dia.: 2.750" M
- Outside Snap Ring
- Cap: 1.188" Width: 3.625"
- Bolt Circle: 3.750"
- Manufacturer: Spicer/Dana
