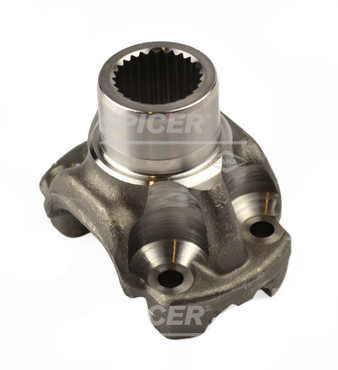

Spicer 2-4-4341 End Yoke (Obsolete)

Vendor: Spicer/Dana, Sku: '2-4-4341

Previous Product | Next Product

Product Description

Drive Shaft End Yoke / Pinion Yoke

The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.

U-Joint Series:	1310
Style:	Outside Snap Ring
U-Joint Cap Diameter (A):	1.063 Inch
U-Joint Width (B):	3.219 Inch
End Yoke Length(C) : - Center Line to End of Spline	3.000 Inch
Hub Diameter (D):	1.55 Inch
Spline Diameter (E): - From Farthest Point to Farthest Point	1.146 Inch
Number of Splines (F):	26
Bore Length (G):	1.500 Inch
Joint Angle:	13.0 Degree

VMRS: 024001003

This part is compatible with:
Call for compatibility.

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide

If you have any questions we are here to help:
CONTACT US | CHAT | (574) 287-9650

Sku: '2-4-4341

Vendor: Spicer/Dana

$128.95

Maximum quantity available reached.
