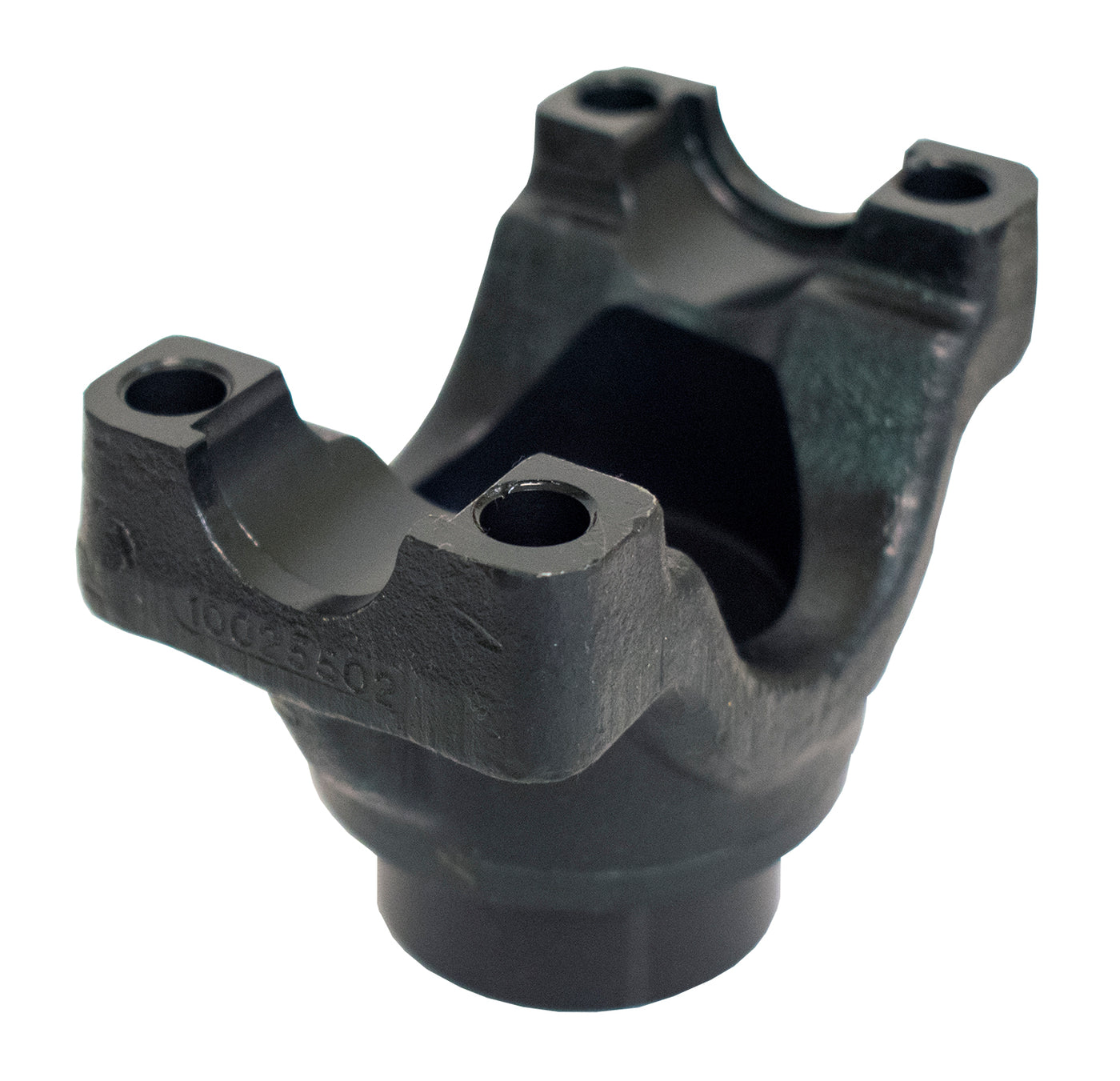

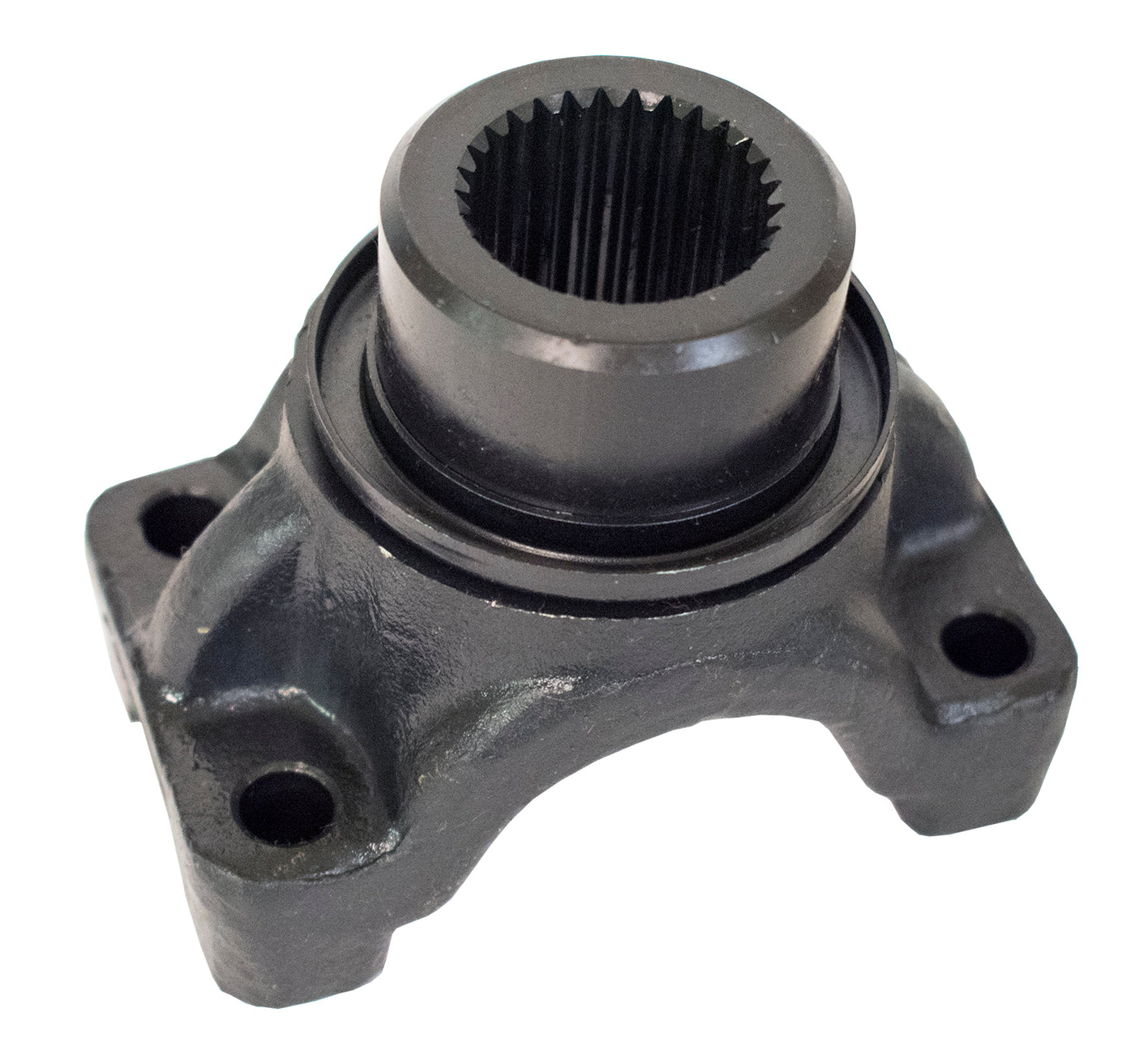

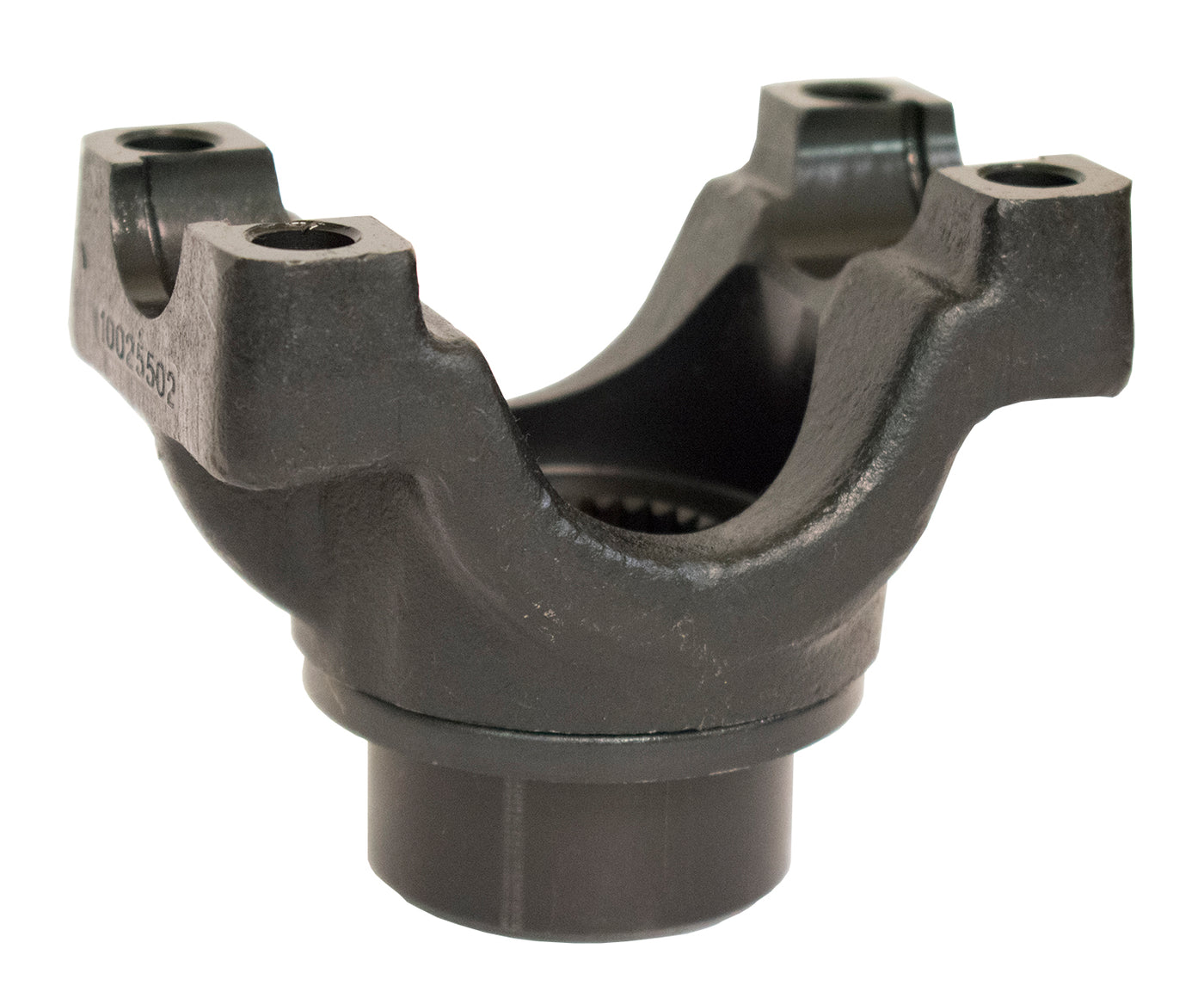

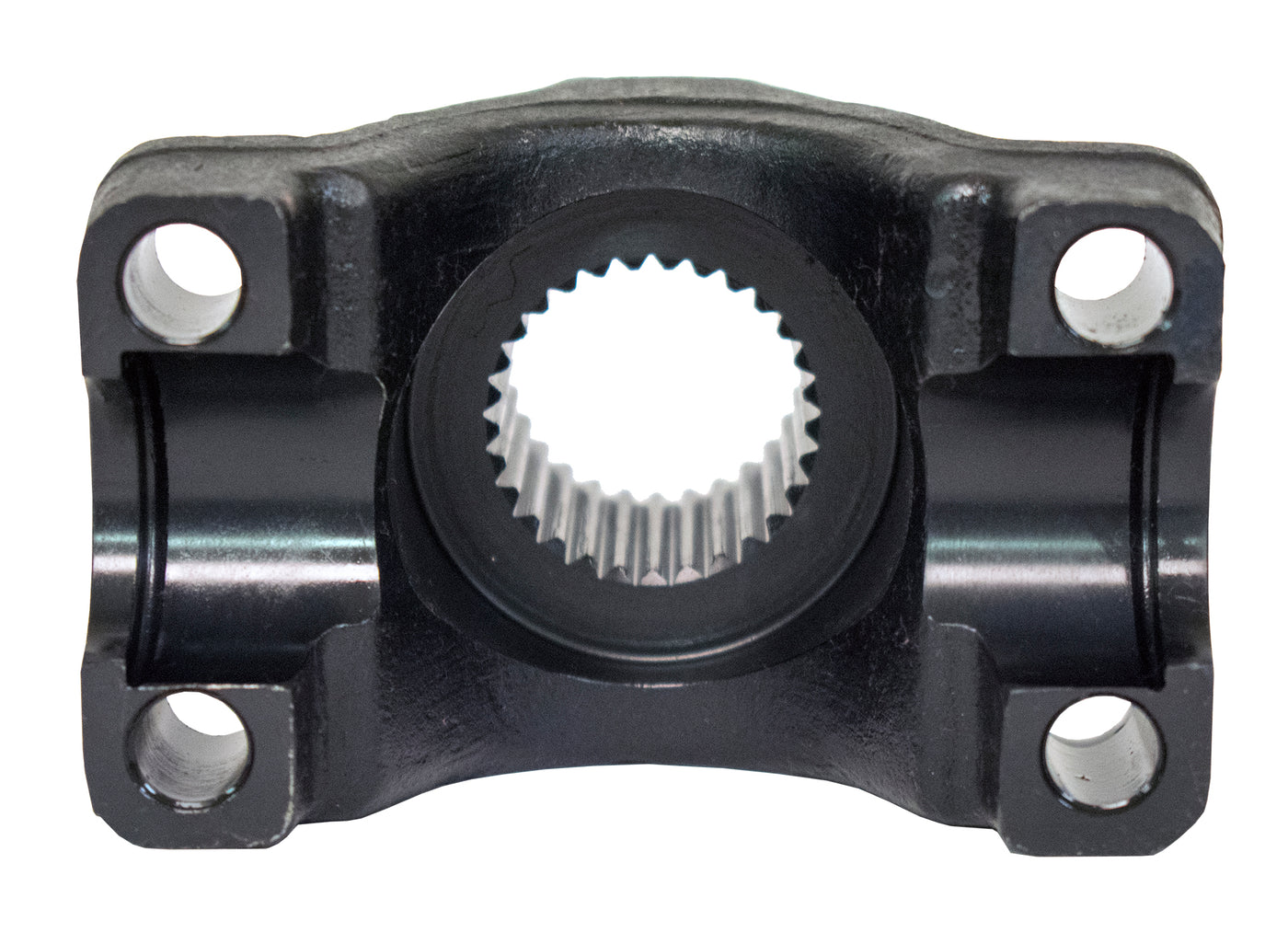

Spicer 10025466 End Yoke

Vendor: Spicer/Dana, Sku: 10025466

Product Description

Drive Shaft End Yoke / Differential Yoke


The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.




t

*



U-Joint Series: 1350
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.188 Inch
U-Joint Width (B): 3.625 Inch
End Yoke Length(C):
- Center Line to End of Spline
3.170 Inch
Hub Diameter (D): 1.939 Inch
Spline Diameter (E):
- From Farthest Point to Farthest Point
1.300 Inch
Number of Splines (F): 30
Bore Length (G): 1.181 Inch
Rear Axle Type:
GM 8.50 Inch

VMRS: 024-001-003


How to Measure a Driveshaft Slip Yoke.

Application:

 Spicer end yoke fits axle model GM 8.5" 10 Bolt with 1350 series U-Joint and other applications with similar dimensions. 30 spline. Strap Kit included.

Forged from high-quality steel and heat-treated to ensure maximum strength, Spicer pinion yokes deliver the performance and durability that you expect. Each yoke is machined to an exact tolerance, so you get a perfect fit. And with black oxide coating, these pinion yokes offer unparalleled protection against corrosion.

  • U-bolt style (Covering most popular axle models)
  • Black oxide coating (Providing added corrosion resistance)
  • Forged steel construction (Ensuring maximum strength)




****


This part is compatible with:
Spicer U-Bolt Strap: 3-94-18X

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide

If you have any questions we are here to help
CONTACT US |  CHAT | (574) 287-9650

Sku: 10025466
Vendor: Spicer/Dana
$308.84
