Sonnax T35-GMFD-01K Flange Yoke

Vendor: Sonnax, Sku: T35-GMFD-01K

Product Description

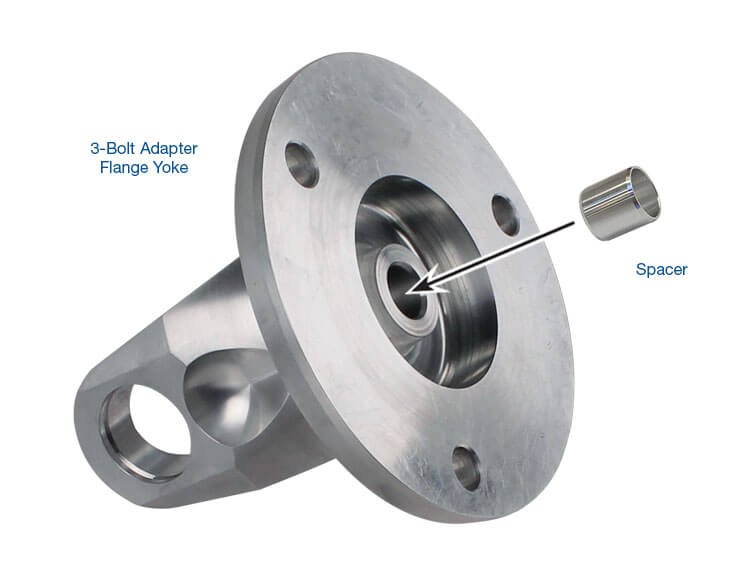

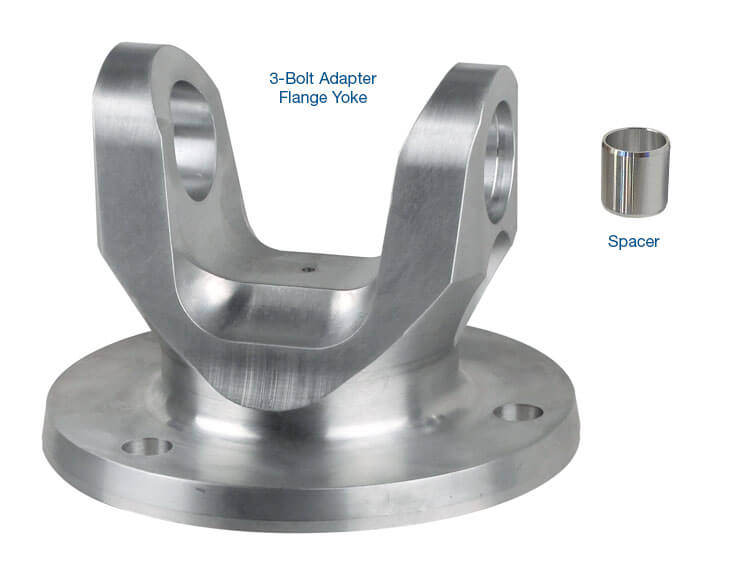

Drive Shaft 3-Bolt Adapter Flange Yoke

This part is drop shipped from the manufacturer and has an inconsistent lead time.
Contact Action Machine Inc today for availability. CHAT | (574)287-9650

Alternate Part Number:
AMI AD35-GMFD-01 Flange Yoke


The ideal upgrade for modified performance vehicles, Sonnax 3-bolt adapter flange yoke T35-GMFD-01 makes it easy to convert a two-piece driveline to a one-piece, U-joint-style driveline. Combined with Sonnax tubing and weld yokes, this unique flange dramatically increases strength and durability while reducing future maintenance costs.



The ideal upgrade for modified performance vehicles, Sonnax 3-bolt adapter flange yoke T35-GMFD-01 makes it easy to convert a two-piece driveline to a one-piece, U-joint-style driveline. Combined with Sonnax tubing and weld yokes, this unique flange dramatically increases strength and durability while reducing future maintenance costs.

  • Eliminates the troublesome giubo and/or CV joint(s)
  • Great for drivetrain swaps and retrofits in custom applications such as street rods and hot rods
  • Manufactured from 6061-T6 aluminum
  • Precision-machined for excellent fit and balance

About Adapter Flange Yokes

  • Custom flange makes it easy to convert a two-piece driveline to one-piece U-joint style driveline
  • Unique flanges offer increased strength & durability while reducing future maintenance costs

Eliminates the troublesome giubo and/or CV joint(s). Great for drivetrain swaps and retrofits in custom applications such as street rods and hot rods. Precision-machined for excellent fit and balance.

Driveline Series (A): 1350
U-Joint Cap Diameter: 1.188 Inch
U-Joint Width: 3.625 Inch
Pilot Type:
Female
Material:
6061-T6 Aluminum
Bolt Circle Diameter (C):
4.33 Inch (110mm)
Bolt Hole Diameter (B):
0.500 Inch
Flange Face to Centerline (E):
3.000 Inch
Weight:
1.980 lbs
Flange Outer Diameter:
5.450 Inch
Pilot Diameter (D):
0.631 Inch
Bolt Count:
3




If you have any questions we are here to help
CONTACT US |  CHAT | (574) 287-9650

How to Measure a Driveshaft Slip Yoke.

Fits 6L80, 6L90. Also fits TR-6060 and TR-3160 manual units.
Does not fit 2004 GTO.

Notes: T35-GMFD-01 is a custom part and may fit more models than noted above. Measure pinion and output flange bolt holes and bolt circle diameter to determine if this yoke is appropriate for your build.

****




Alternate Part Number:
AMI AD35-GMFD-01 Flange Yoke
Sku: T35-GMFD-01K
Vendor: Sonnax
$275.29
Maximum quantity available reached.

DETAILS

U-Joint Series:
1350
U-Joint Cap Size (B): 1.188"
U-Joint Width (A): 3.625"
Snap Ring Type: Outside Snap Ring
Manufacturer: Sonnax
Pilot Diameter (G): 0.631" F
Bolt Circle (E): 4.33"
Manufacturer Part Number: T35-GMFD-01K
Material:
Bolt Hole (F): 0.500"
Number of Bolt Holes: 3
OEM/Alternate Part Number:
