Sonnax T35-ALFY-07 Flange Yoke

Vendor: Sonnax, Sku: T35-ALFY-07

Product Description

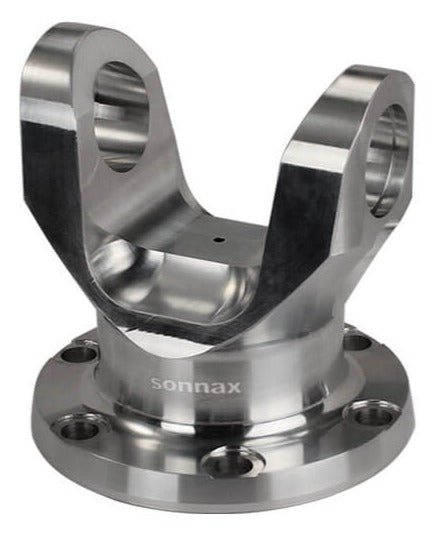

Drive Shaft 6-Bolt Adapter Flange Yoke

The ideal upgrade for modified performance vehicles, Sonnax 6-bolt adapter flange yoke T35-ALFY-07 makes it easy to convert a two-piece driveline to a one-piece, U-joint-style driveline. Combined with Sonnax tubing and weld yokes, this unique flange dramatically increases strength and durability while reducing future maintenance costs.

  • Mates to output and pinion flanges in Hellcat® and similar high-power applications
  • Eliminates the troublesome guibo and/or CV joint(s)
  • Precision-machined for excellent fit and balance

    The ideal upgrade for modified performance vehicles, Sonnax 6-bolt adapter flange yoke T35-ALFY-07 makes it easy to convert a two-piece driveline to a one-piece, U-joint-style driveline. Combined with Sonnax tubing and weld yokes, this unique flange dramatically increases strength and durability while reducing future maintenance costs.


    Driveline Series (A): 1350
    U-Joint Cap Diameter: 1.188 Inch
    U-Joint Width: 3.625 Inch
    Pilot Type:
    Male
    Material:
    7075-T6 Aluminum
    Bolt Circle Diameter (C):
    94 mm / 3.701 Inch
    Bolt Hole Diameter (B):
    0.425 Inch
    Flange Face to Centerline (E):
    3.440 Inch
    Flange Outer Diameter / Pilot Diameter :
    108mm / 4.252 Inch
    Bolt Count:
    6




    If you have any questions we are here to help
    CONTACT US |  CHAT | (574) 287-9650

    How to Measure a Driveshaft Slip Yoke.

    This flange yoke fits:
    '15-Later Dodge Hellcat
    '13-later Dodge SRT 392
    Scat Pack Challenger
    TR6060
    Chrysler 300
    BMW 210mm differential with 94mm bolt pattern circle
    '08–'13 Cadillac CTS sedan coupe and wagon with 6L90
    ZF8HP90.

    Note: Sonnax flange yoke T35-ALFY-07 is a custom part and may fit more models than noted above. Measure flange OD, output flange bolt holes and bolt circle diameter to determine if this yoke is appropriate for your build.

    ****

    $247.13
    Maximum quantity available reached.
    .
