GM 27 Spline 1350 Series

Vendor: Sonnax, Sku: T3-3-6081HP

Product Description

Transmission Applications: All manual and automatic transmission with 27 spline output shafts including Turbo 350 (TH-350), Powerglide, T375, 700R4, 200R, 4L60, 4L60E, and 4L65, Borg Warner T-5, T-10, T-56 and Muncie M20 and M21, M22, Tremec , Auto Gear, Saginaw, M-6 and other GM 27 spline output shaft transmissions.

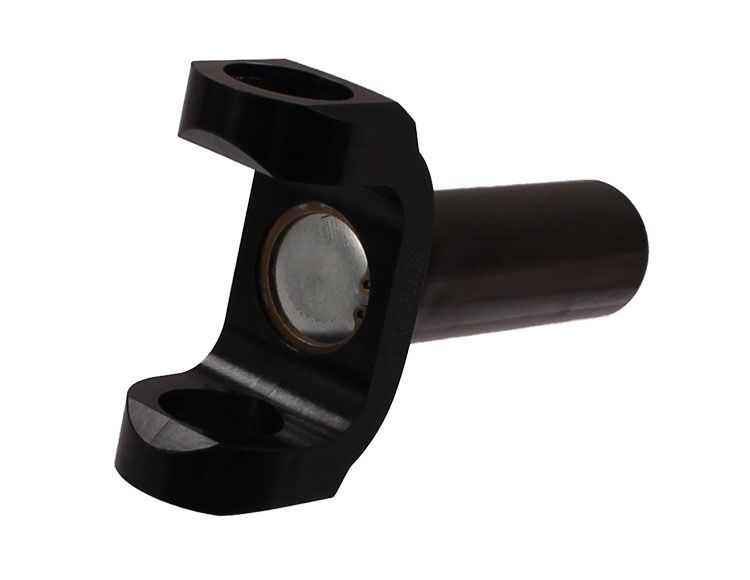

Transmission Slip Yoke

Sonnax T3-3-6081HP forged chromoly performance slip yoke is an excellent upgrade over factory style transmission yokes, adding strength and durability at an affordable price.  These high performance slip yokes deliver superior strength and durability for high horsepower and torque capacity applications, from street car, to street rod, drag strip, to dirt oval track.

  • Material: Forged Chromoly
  • Length: 6.340"
  • Barrel Length: 3.880"
Sku: T3-3-6081HP
Vendor: Sonnax
$134.98
Maximum quantity available reached.

DETAILS

U-Joint Series: 1350
Manufacturer: Sonnax
Snap Ring Type:
OEM/Alternate Part Number:
Transmission Make: GM
Transmission Model: Transmission Applications: All manual and automatic transmission with 27 spline output shafts including Turbo 350 (TH-350), Powerglide, T375, 700R4, 200R, 4L60, 4L60E, and 4L65, Borg Warner T-5, T-10, T-56 and Muncie M20 and M21, M22, Tremec , Auto Gear, Saginaw, M-6 and other GM 27 spline output shaft transmissions.
Spline Count: 27
Spline OD: 5.470" (CL to End)
Overall Length (J): 5.470" (CL to End)
Bearing Cap Diameter (D): 1.188"
Dimension over Caps (E): 3.622
Hub Diameter: (R) 1.503"
Counterbore: N/A

Transmission Slip Yoke Diagram

.
