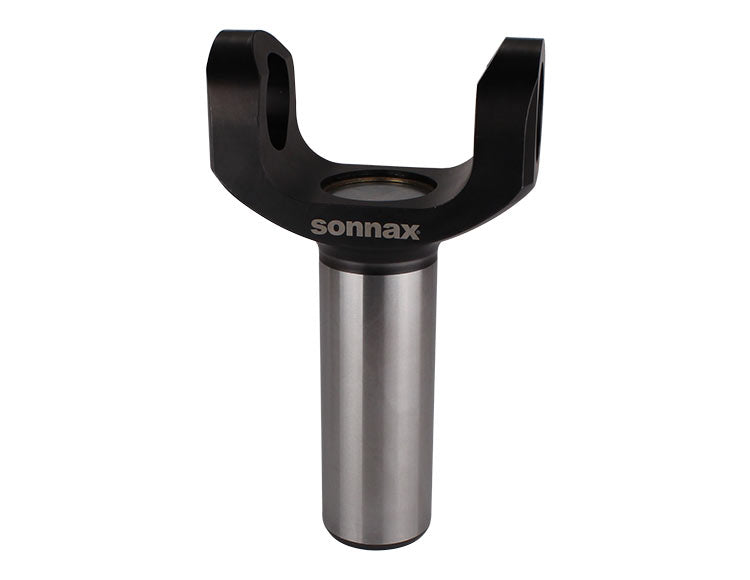

Sonnax T3-3-6081H Trans Slip Yoke

Vendor: Sonnax, Sku: T3-3-6081H

Product Description

Sonnax Drive Shaft Transmission Slip Yoke

    Slip yokes found in many common applications run on a bushing inside the transmission tail housing. High-horsepower builds often use a roller bearing instead, so upgrading to a roller bearing yoke is a must — not only for proper fitment, but to guarantee the barrel is hard enough to avoid damage from the bearings.

    Sonnax performance slip yoke T3-3-6081H is specifically designed for use with tail housings that are equipped with a roller bearing instead of a bushing. It is forged from rugged chromoly steel, precision machined, through-hardened and expertly tempered to be able to withstand the most severe performance environments. Perfectly suited for all high-horsepower and torque capacity vehicles, whether at the strip, on the street or at the track.

    • Forged 4340 chromoly
    • Through-hardened, tempered barrel
    • Unique Sonnax design increases strength in critical areas
    • Use with single- or double-roller bearings
    • 100% leak tested to 40 psi

    Sonnax Performance Slip Yokes

    Quality & Engineering You Can Trust

    A Sonnax slip yoke is NEVER the weak link in your driveline. Choose from bushing and roller bearing yokes for dozens of popular applications, every one optimized to drive power smoothly and reliably from transmission to driveshaft.

    • Fully machined from billet steel for enhanced strength & durability
    • Leak-free plug tested to 40 psi for optimum sealing
    • 1330 & 1350 Series yokes are chromoly steel
    Transmission Applications:
    For roller bearing tail housing; Powerglide, TH350, TH350C; Muncie M20, M21 & M22 with 27-tooth spline; Saginaw 3- & 4-speed



    Series: 1350
    Outside Yoke Dimension / U-Joint Lock Up: (E/G) 3.625 Inch
    Bearing Cap Diameter (F): 1.188 Inch
    Vehicle Make: GM
    Center Line to End of Spline (C): 5.810 Inch
    Length: 6.680 Inch
    Barrel Length (D): 3.890 Inch
    Hub / Seal / Journal Diameter (B): 1.500 Inch
    Number of Spline:* 27
    Spline Type: Full Spline
    Style: Outside Snap Ring
    Material:
    Forged 4340 Chromoly

    VMRS: 024002038

     * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.

    Some slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.

    outside snap ring slip yokeSlip Yoke

    0

    $238.57
