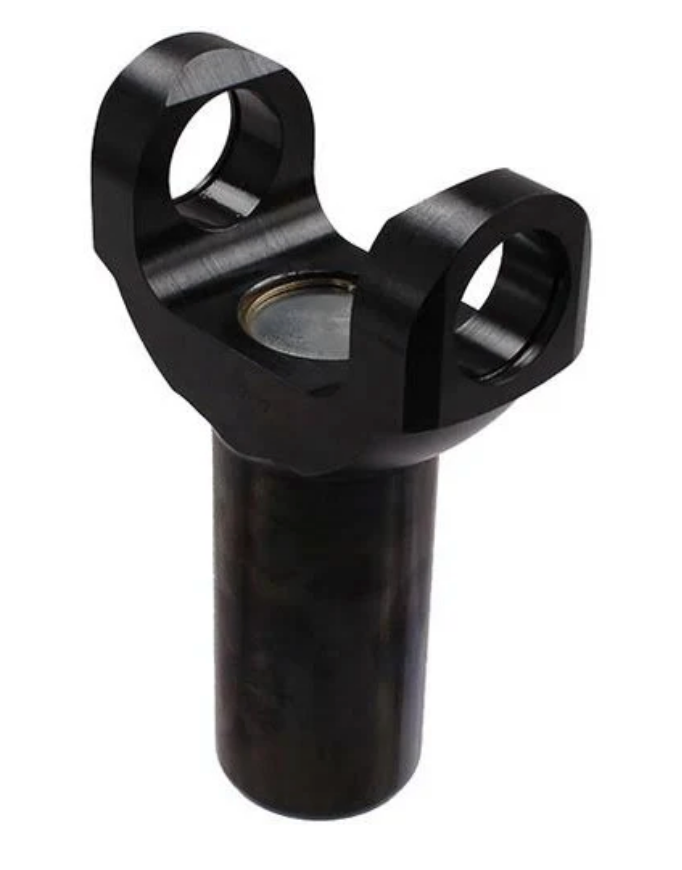

Sonnax T3-3-5571HP Trans Slip Yoke

Vendor: Sonnax, Sku: T3-3-5571HP

Product Description
Transmission/Transfer Case Applications:

Transmission Applications: Fits various 32 spline transmissions with long tail-shaft housing. Fits Transmission Applications: , 4L80E Long Tail , 6L50 , 6L80E , TH-400 Long Tail , 241C

Sonnax Drive Shaft Transmission Slip Yoke

Sonnax T3-3-5571HP forged chromoly performance slip yoke is an excellent upgrade over factory style transmission yokes, adding strength and durability at an affordable price. The T3-3-5571HP uses 1350 series u-joints and fits a variety of applications, including those listed here. These high performance slip yokes deliver superior strength and durability for high horsepower and torque capacity applications, from street car, to street rod, drag strip, to dirt oval track.

Transmission Applications:
Fits various 32 spline transmissions 6L50, 6L80E with long tail-shaft housing including Turbo 400 (TH400) and 4L80E and more. The shorter barrel length yoke 3-3-2431 will more universally fit all 1350 Series 32 spline transmissions -- double check your application to verify proper fit.



Series: 1350
Outside Yoke Dimension / U-Joint Lock Up: 3.875 Inch / 3.625 inch
Bearing Cap Diameter: 1.188 Inch
Vehicle Make: GM
Center Line to End of Spline: 6.938 Inch
Spline Outside Diameter: 1.378 Inch
Hub Diameter: 1.886 Inch
Number of Spline*: 32 (31 with blind spot - see note below*)
Spline Type: Full Spline
Style: Outside Snap Ring
Material: Steel

VMRS: 024002038

 * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.

Some slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.

outside snap ring slip yokeSlip Yoke


Alternate Part Option:
Spicer 3-3-5571X Trans Slip Yoke

0

Sku: T3-3-5571HP
Vendor: Sonnax
$167.45
