Ford 31 Spline 1350 Series

Vendor: Sonnax, Sku: T3-3-2491HP

Product Description

Transmission Applications: Fits various 31 transmission output shafts including C-6, T45, FMX, Top Loaders, Tremec TKO 500 &TKO 600, Tremec T56, E4OD, ZF 5 speed and more.

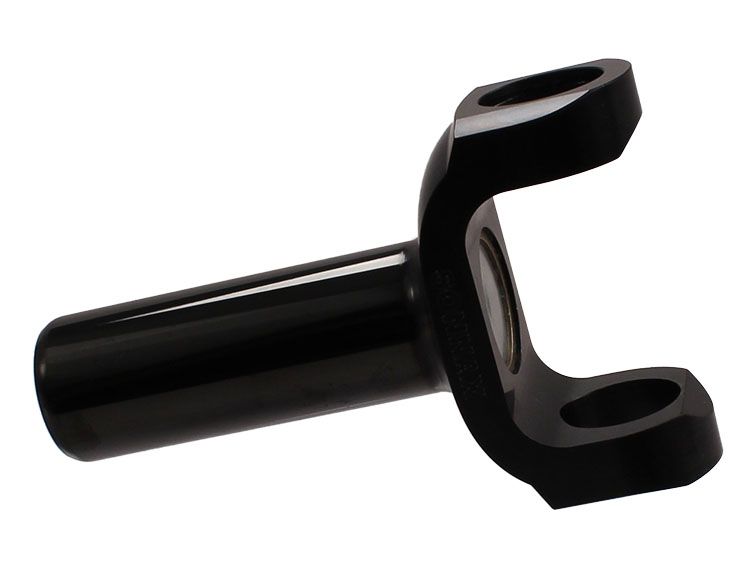

Sonnax T3-3-2491HP forged chromoly performance slip yoke is an excellent upgrade over factory style transmission yokes, adding strength and durability at an affordable price.  These high performance slip yokes deliver superior strength and durability for high horsepower and torque capacity applications, from street car, to street rod, drag strip, to dirt oval track.

  • Counter Bore (Y/N): No
  • Spline Type: Full
  • Material: Forged Chromoly
  • Barrel Length: 4.750"
Sku: T3-3-2491HP
Vendor: Sonnax
$142.46
Maximum quantity available reached.

DETAILS

U-Joint Series: 1350
Manufacturer: Sonnax
Snap Ring Type:
OEM/Alternate Part Number:
Transmission Make: Ford
Transmission Model: Transmission Applications: Fits various 31 transmission output shafts including C-6, T45, FMX, Top Loaders, Tremec TKO 500 &TKO 600, Tremec T56, E4OD, ZF 5 speed and more.
Spline Count: 31
Spline OD: 6.440" (CL to End)
Overall Length (J): 6.440" (CL to End)
Bearing Cap Diameter (D): 1.188"
Dimension over Caps (E): 3.622"
Hub Diameter: (R) 1.685"
Counterbore: N/A

Transmission Slip Yoke Diagram

.
