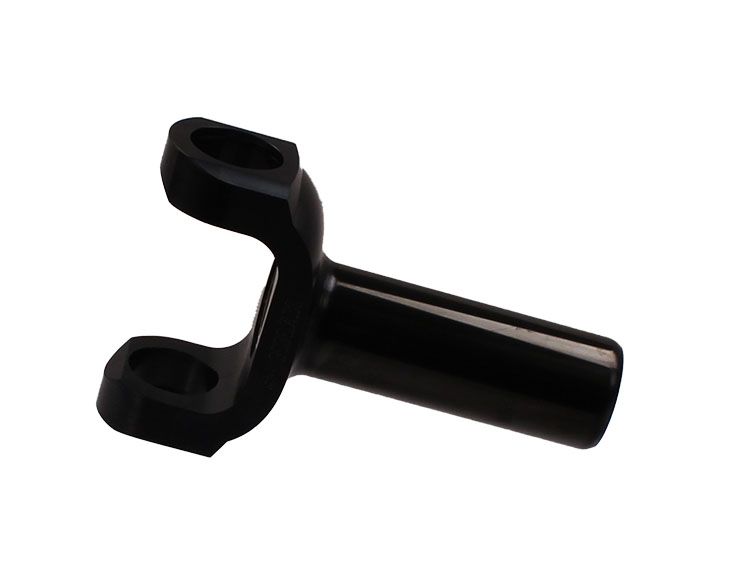

Sonnax T3-3-14061HP Trans Slip Yoke

Vendor: Sonnax, Sku: T3-3-14061HP

Product Description
Transmission/Transfer Case Applications:

Transmission Applications: Fits 28 Spline and 1350 series u joints. Fits Transmission Models

Sonnax Drive Shaft Transmission Slip Yoke
SKU: T3-3-14061HP

Sonnax T3-3-14061HP forged chromoly performance slip yoke is an excellent upgrade over factory style transmission yokes, adding strength and durability at an affordable price. The T3-3-14061HP uses 1350 series u-joints, and fits several applications, including most 4R70W. These high performance slip yokes deliver superior strength and durability for high horsepower and torque capacity applications, from street car, to street rod, drag strip, to dirt oval track.

Sonnax Performance Slip Yokes

Quality & Engineering You Can Trust

A Sonnax slip yoke is NEVER the weak link in your driveline. Choose from bushing and roller bearing yokes for dozens of popular applications, every one optimized to drive power smoothly and reliably from transmission to driveshaft.

  • Fully machined from billet steel for enhanced strength & durability
  • Leak-free plug tested to 40 psi for optimum sealing
  • 1330 & 1350 Series yokes are chromoly steel
Transmission Applications:

Fits 28 Spline and 1350 series u-joints, and fits several applications, including most 4R70W.



Series 1350
Outside Yoke Dimension /
U-Joint Lock Up
3.622 IN
Bearing Cap Diameter 1.188 IN
Vehicle Make Ford
Center Line to End of Spline  6.630 IN
Barrel Length 5.130 IN
Hub / Seal / Journal Diameter 1.598 IN
Number of Spline* 28
Spline Type Full Spline
Style Outside Snap Ring
Material Forged Chromoly

VMRS: 024002038

 * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.

Some slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.

outside snap ring slip yokeSlip Yoke

0

Sku: T3-3-14061HP
Vendor: Sonnax
$147.86
