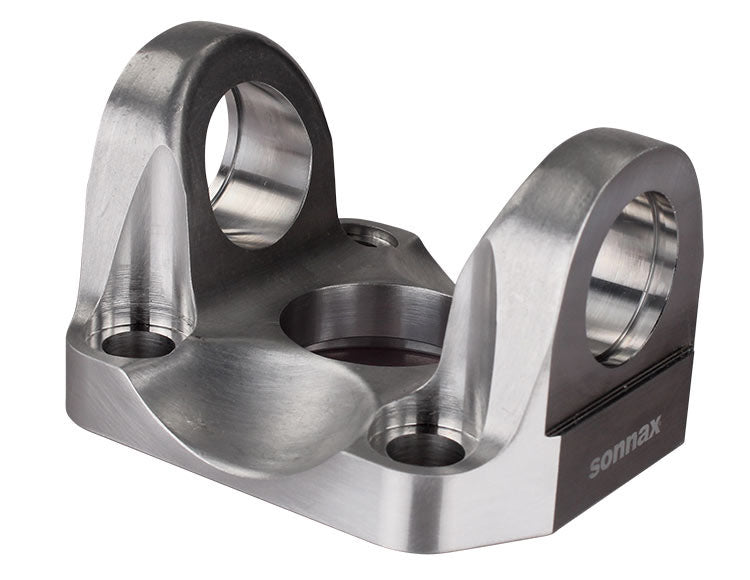

Sonnax T3-2-949A Flange Yoke

Vendor: Sonnax, Sku: T3-2-949A

Product Description

DRIVESHAFT FLANGE YOKE

Builders of Mustang driveshafts who want to upgrade from a 1330 U-joint have long had to make due with purchasing an extra adaptor flange to allow installation of a 1350 flange yoke. Now, with Sonnax flange yoke T3-2-949A, the days of sourcing an extra adaptor are over. The Sonnax yoke is forged and precision-machined to accept a 1350 U-joint while maintaining compatibility with the OE 3.5 inch bolt circle and 2" female pilot hole diameter.

  • Lowers build cost
  • Reduces rotating mass with elimination of adaptor flange

    Specifications

    Bolt Circle:
    3.50 Inch
    Driveline Series:
    1350
    U-joint Lock Up:
    3.625 Inch
    Bearing Cap Diameter:
    1.188 Inch
    Flange Face to CL:
    1.550 Inch
    Hole Size:
    0.516 Inch
    Material:
    6061-T6 Aluminum
    Number of Bolt Holes:
    4
    Pilot Diameter:
    2.000 Inch Female

    VMRS: 024-002-016

    Sku: T3-2-949A
    Vendor: Sonnax
    $104.20
    Maximum quantity available reached.

    DETAILS

    U-Joint Series:
    1350
    U-Joint Cap Size (B): 1.188"
    U-Joint Width (A): 3.625"
    Snap Ring Type: Outside Snap Ring
    Manufacturer: Sonnax
    Pilot Diameter (G): 2.00" F
    Bolt Circle (E): 3.50"
    Manufacturer Part Number: T3-2-949A
    Material:
    Bolt Hole (F):
    Number of Bolt Holes: 4
    OEM/Alternate Part Number:

    “Outside

    .
