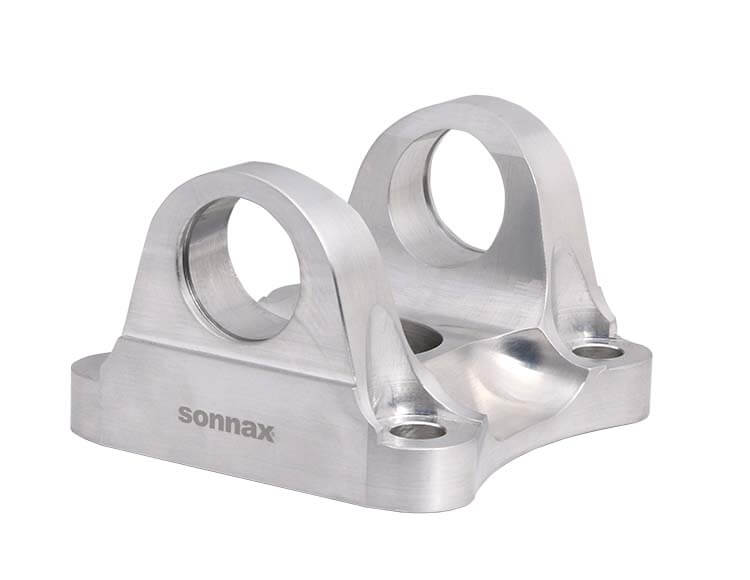

Sonnax T3-2-1869 Flange Yoke

Vendor: Sonnax, Sku: T3-2-1869

Product Description

Driveshaft Flange Yoke
Ford Super Duty (Rear)

Sonnax flange yoke T3-2-1869 connects the rear of the driveshaft to the differential pinion yoke in most '05-'16 Ford F-250, F-350, F-450 and F-550 Super Duty models. While the OEM uses cast steel yokes in this position, the Sonnax billet aluminum yoke is just as strong — while providing rotational weight savings. Coupling this yoke with an aluminum driveshaft and output (front) flange yoke T3-2-1719 is the best way to dramatically lower rotating mass, without sacrificing strength or performance.

Specifications

DL SERIES:
1480
U-JOINT LOCK UP:
4.188 Inch
BEARING CAP DIAMETER (D):
1.375 Inch
FLANGE FACE TO CL (G):
2.000 Inch
NUMBER OF BOLT HOLES:
4
BOLT CIRCLE (B): 4.750 Inch
BOLT HOLE DIAMETER: 0.512 Inch - Drilled
PILOT DIAMETER (C):
2.955 Inch Female
WEIGHT:
1.590 LB
FLANGE OR SWING DIA. (A): 5.861 Inch
MATERIAL: 6061-T6 Aluminum

VMRS: 024002016

NOTES
Sonnax flange yoke T3-2-1869 is a custom part and may fit more models than noted above. Measure flange dimensions, flange bolt holes and bolt circle diameter to determine if this yoke is appropriate for your build.

Sku: T3-2-1869
Vendor: Sonnax
$124.23
Maximum quantity available reached.

DETAILS

U-Joint Series:
1480
U-Joint Cap Size (B): 1.375"
U-Joint Width (A): 4.188"
Snap Ring Type: Outside Snap Ring
Manufacturer: Sonnax
Pilot Diameter (G): 2.955" F
Bolt Circle (E): 4.750"
Manufacturer Part Number: T3-2-1869
Material:
Bolt Hole (F):
Number of Bolt Holes: 4
OEM/Alternate Part Number:

“Outside

.
