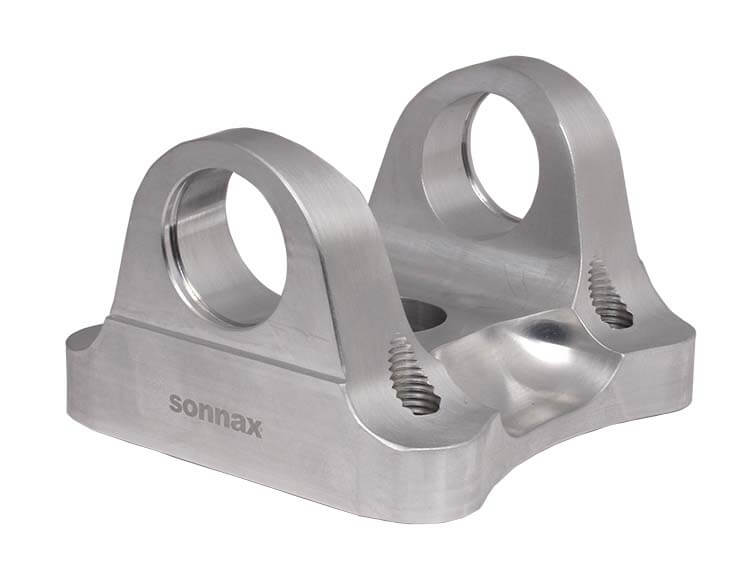

Sonnax T3-2-1719 Flange Yoke

Vendor: Sonnax, Sku: T3-2-1719

Product Description

Driveshaft Flange Yoke
Ford Super Duty (Front)

Sonnax aluminum flange yoke T3-2-1719 connects the transmission output to the front of the driveshaft in most '05-'16 Ford F-250, F-350, F-450 and F-550 Super Duty models. While the OEM uses cast steel yokes in this position, the Sonnax billet aluminum yoke is just as strong — while providing rotational weight savings. Coupling this yoke with an aluminum driveshaft and differential flange yoke T3-2-1869 is the best way to dramatically lower rotating mass, without sacrificing strength or performance.

Series 1480
Outside U-Joint Lock Up (E): 4.188 Inch
Yoke Bearing Dimension (D): 1.375 Inch
Flange Or Swing Diameter (A): 5.861 Inch
Bolt Circle Diameter (B): 4.25 Inch
Number of Bolt Holes: 4
Pilot Diameter (C): 2.679 - Female
Flange Face To Center Line (G): 1.200 Inch
Material 6061-T6 Aluminum
OE Part Number F81Z-4865-DA

VMRS: 024002016

NOTE:
Sonnax flange yoke T3-2-1719 is a custom part and may fit more models than noted above. Measure flange O.D., output flange bolt holes and bolt circle diameter to determine if this yoke is appropriate for your build.

Sku: T3-2-1719
Vendor: Sonnax
$127.34
Maximum quantity available reached.

DETAILS

U-Joint Series:
1480
U-Joint Cap Size (B): 1.375"
U-Joint Width (A): 4.188"
Snap Ring Type: Outside Snap Ring
Manufacturer: Sonnax
Pilot Diameter (G): 2.68" F
Bolt Circle (E): 4.250"
Manufacturer Part Number: T3-2-1719
Material:
Bolt Hole (F):
Number of Bolt Holes: 4
OEM/Alternate Part Number:

“Outside

.
