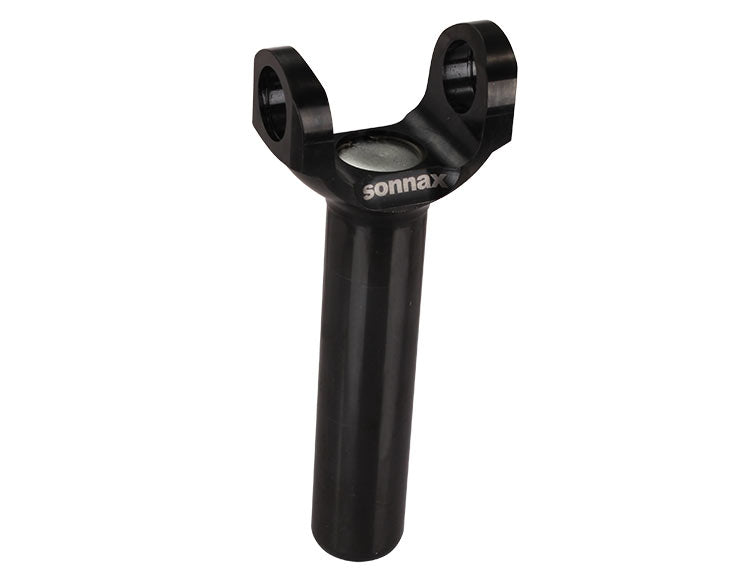

Sonnax T2-3-6081HP8XL Trans Slip Yoke (Race Car Applications)

Vendor: Sonnax, Sku: T2-3-6081HP8XL

Product Description

Sonnax Drive Shaft Transmission Slip Yoke

Extended length slip yokes help compensate for extreme-travel rear suspension applications, or driveshaft lengths that are slightly shorter than necessary. Sonnax extended length performance slip yoke T2-3-6081HP8XL is forged from a chromoly billet to provide superior strength and performance for dirt oval track racing with above listed transmissions.

  • Product Specs
  • Description
  • Diagrams
Transmission Applications:
Fits various manual and automatic transmission with 27 spline output shafts including 27T PG,THM 200-4R,350,700-R4, 4L60E,Muncie M20,21,22( w 27T) and Saginaw.
Powerglide, 200-4R, 4L60, 4L60-E, 350, Muncie & Brinn



Series: 1310
Outside Yoke Dimension / U-Joint Lock Up (B): 3.219 Inch
Bearing Cap Diameter (A): 1.063 Inch
Vehicle Make: GM
Center Line to End of Spline (C): 8.000 Inch
Barrel Length: 6.100 Inch
Hub / Seal / Journal Diameter (D): 1.503 Inch
Number of Spline* (F): 27
Spline Diameter (E): 1.176 Inch
Spline Type: Full Spline
Style: Outside Snap Ring
Material: Forged Chromoly

VMRS: 024002038

 * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.

Driveshaft Slip Yoke Diagram Outside Snap Ring Style

Sonnax Performance Slip Yokes

Quality & Engineering You Can Trust

A Sonnax slip yoke is NEVER the weak link in your driveline. Choose from bushing and roller bearing yokes for dozens of popular applications, every one optimized to drive power smoothly and reliably from transmission to driveshaft.

  • Fully machined from billet steel for enhanced strength & durability
  • Leak-free plug tested to 40 psi for optimum sealing
  • 1330 & 1350 Series yokes are chromoly steel

Some slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.

outside snap ring slip yokeDriveshaft Slip Yoke Diagram Spline Count
