AMI 7687200600000 U-Joint (Limited Quantities)

Vendor: Action Machine Inc., Sku: 7687200600000

Product Description

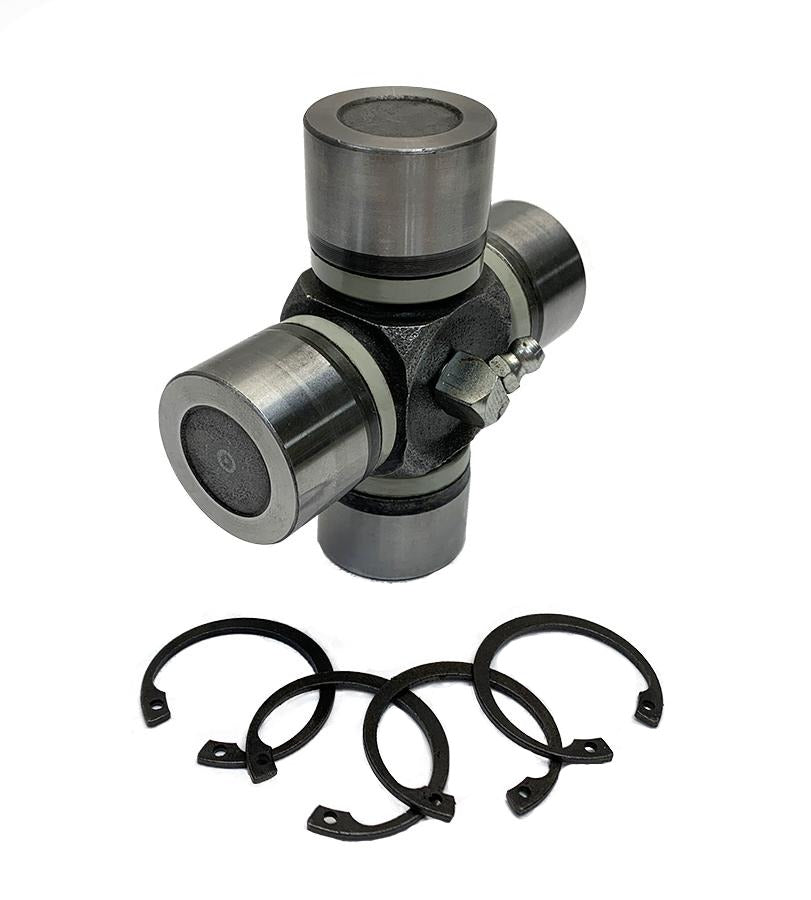

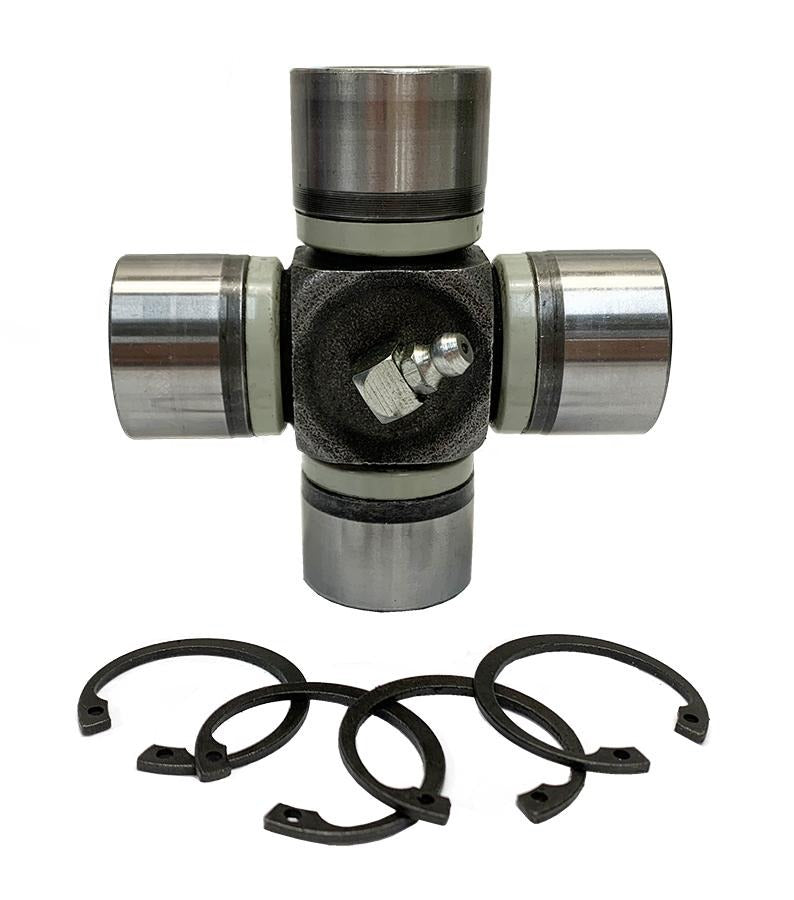

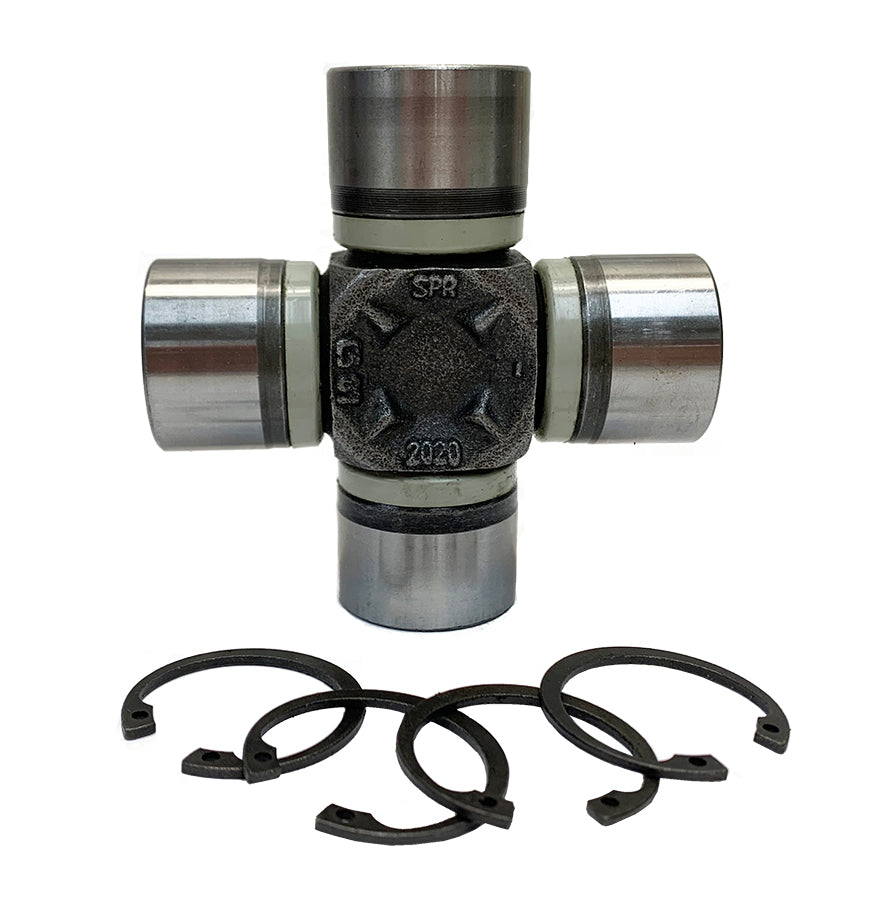

Drive Shaft U-Joint

Spicer 10® Series U-Joints, from the Most Trusted Name in Drivelines.
Spicer 10® Series u-joints are the standard for premium performance in the driveshaft market. Spicer products are manufactured using statistically controlled processes to ensure you get the same high-quality part every time.

Bearing Cups
Heat-treated for strength; precision ground and case-hardened for durability.

Zerks
Allow for relubricating at regular intervals to help extend the life of the part.

Seal and Bearings
The process of precision grinding the seal and bearing surfaces helps to improve the life of the seal and bearing.

Journal Cross
Forged with high-quality steel, precision heat-treating and case-hardening to very specific levels, ensuring optimal and consistent strength and durability.

Type: Outside Snap Ring Style (OSR)
Bearing Cap Diameter: 1.188 Inch (30.175 mm) (D1)
1.188 Inch (30.175 mm) (D2)
Lock Up / Length:
*Snap Ring to Snap Ring
3.220 Inch (81.8 mm) (G1)
3.220 Inch (81.8 mm) (G2)
Grease Type: Greasable
Snap Rings Included: Yes
Material: Steel & Rubber
OEM Series: GWB 2020
Compact 2020
687.20

VMRS: 024002046

U-joint Diagram


inside snap ring
Part Number Interchange
Part # NA


More Product Information:

Sku: 7687200600000
$94.50
Maximum quantity available reached.

DETAILS

OEM Series:
Compact 2020
Manufacturer: Action Machine Inc.
Greasable: Greasable
Snap Ring Type: Outside Snap Ring
Manufacturer Part Number: 7687200600000
Bearing Cap Diameter: 1.188"
Lock Up: 3.220"
OEM/Alternate Part Number:
.
