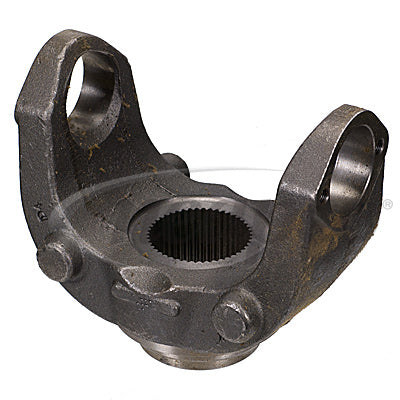

Neapco N6.5-4-3591 End Yoke

Vendor: Neapco, Sku: N6.5-4-3591

Product Description

Drive Shaft End Yoke / Differential Yoke


The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.




t

*



U-Joint Series: 1810
Style: Full Round
U-Joint Cap Diameter (A): 1.938 Inch
U-Joint Width (B): 7.547 Inch
End Yoke Length(C) :
- Center Line to End of Spline
5.500 Inch
Hub Diameter (D): 3.310 Inch
Spline Diameter (E):
- From Farthest Point to Farthest Point
2.380 Inch
Number of Splines (F): 46
Bore Length (G): 2.750 Inch

VMRS: 024-001-003

How to Measure a Driveshaft Slip Yoke.

Application:




Vehicle Information:





****


This part is compatible with:
Neapco 6-0281Q U-Joint (Full Round)
Spicer
 5-281X U-Joint (Full Round)

Alternate/Interchange Parts:
Spicer 6.5-4-3591 End Yoke
PTI P6.5-4-3591 End Yoke

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide

If you have any questions we are here to help
CONTACT US |  CHAT | (574) 287-9650

Sku: N6.5-4-3591
Vendor: Neapco
$562.21
