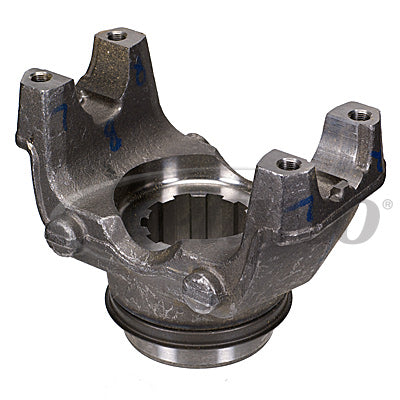

Neapco N6.5-4-3561-1X End Yoke

Vendor: Neapco, Sku: 'N6.5-4-3561-1X

Product Description

Driveshaft End Yoke
Bearing Strap Construction

Specifications
CL TO END OF HUB: 6.06
DL SERIES: 1810HR
HUB DIAMETER: 3.75
JOINT ANGLE: 30
LENGTH THROUGH BORE: 3.00
SPLINE / NUMBER TEETH: 2.750-10
UJ RETENTION: Strap

VMRS: 024-001-003

Sku: 'N6.5-4-3561-1X
Vendor: Neapco
$119.97
Maximum quantity available reached.

DETAILS

Manufacturer: Neapco
Centerline of Joint to End of Spline (s): 6.06"
Manufacturer Part Number: 'N6.5-4-3561-1X
U-Joint Series: 1810
Spline Count: 10
Spline OD: 2.750"
Bore Length: 3.00"
Cap OD (B): 1.938"
Yoke Span (A): 7.547"
Hub Dia.: 3.75"
Style: Outside Snap Ring
Rear Axle Type:
Joint Angle:
30
Counterbore Depth:
ø

Bearing Strap Construction Diagram

.
