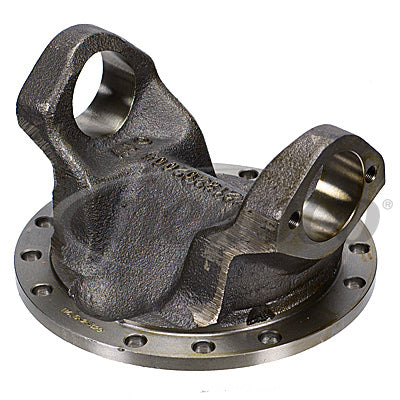

Neapco N6.5-2-329 Flange Yoke

Vendor: Neapco, Sku: 'N6.5-2-329

Product Description

Driveshaft Flange Yoke

 Specifications

BOLT CIRCLE:
7.25"
DL SERIES:
1810
U-JOINT LOCK UP:
7.547”
BEARING CAP DIAMETER:
1.938”
FLANGE FACE TO CL:
3.38"
HOLE/THREAD SIZE:
0.44"
JOINT ANGLE:
30
NUMBER OF BOLT HOLES:
12
PILOT DIAMETER:
7.75" Male

VMRS: 024-002-016

Sku: 'N6.5-2-329
Vendor: Neapco
$217.74
Maximum quantity available reached.

DETAILS

U-Joint Series:
1810
U-Joint Cap Size (B): 1.938"
U-Joint Width (A): 7.547"
Snap Ring Type: Bearing Plate
Manufacturer: Neapco
Pilot Diameter (G): 7.75"
Bolt Circle (E): 7.25"
Manufacturer Part Number: 'N6.5-2-329
Flange or Swing Diameter (J): ø
Bolt Hole (F): 0.44" Drilled
Number of Bolt Holes: 12
Flange Face to Centerline U-Joint (H): 3.38"
OEM/Alternate Part Number:
083869006260
