Neapco N6-4-7181-1X End Yoke

Vendor: Neapco, Sku: 'N6-4-7181-1X

Product Description

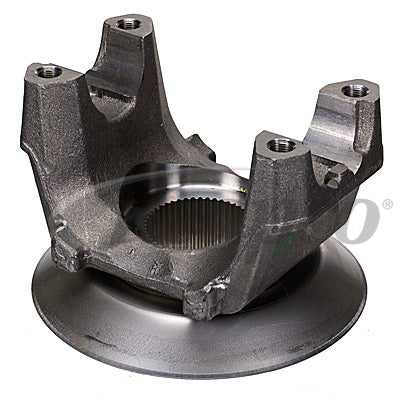

Driveshaft End Yoke
Bearing Strap Construction

Specifications
CL TO END OF HUB: 5.38
DL SERIES: 1710HR
HUB DIAMETER: 3.25
LENGTH THROUGH BORE: 2.32
SPLINE / NUMBER TEETH: 2.380-46
UJ RETENTION: Strap

VMRS: 024-001-003

Sku: 'N6-4-7181-1X
Vendor: Neapco
$208.49
Maximum quantity available reached.

DETAILS

Manufacturer: Neapco
Centerline of Joint to End of Spline (D): 5.380”
Manufacturer Part Number: 'N6-4-7181-1X
U-Joint Series: 1710
Spline Count (A): 46
Spline Outside Diameter - from farthest point to farthest point (B): 2.380”
Bore Length (E): 2.320”
Cap OD: 1.938"
Yoke Span: 6.094"
Hub Diameter (C): 3.250”
Style: Outside Snap Ring
Rear Axle Type:
Joint Angle:
Counterbore Depth:

.
