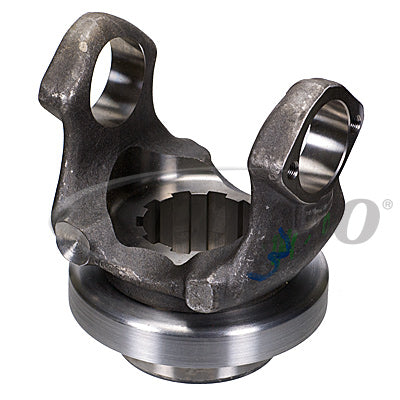

Neapco N6-4-6841X End Yoke

Vendor: Neapco, Sku: 'N6-4-6841X

Product Description

Driveshaft End Yoke
Bearing Strap Construction

Specifications
CL TO END OF HUB: 5.75
DL SERIES: 1710
HUB DIAMETER: 3.75
JOINT ANGLE: 20.5
LENGTH THROUGH BORE: 3.00
SPLINE / NUMBER TEETH: 2.750-10
UJ RETENTION: Plate

VMRS: 024-001-003

Sku: 'N6-4-6841X
Vendor: Neapco
$221.91
Maximum quantity available reached.

DETAILS

Manufacturer: Neapco
Centerline of Joint to End of Spline (s): 5.75"
Manufacturer Part Number: 'N6-4-6841X
U-Joint Series: 1710
Spline Count: 10
Spline OD: 2.750"
Bore Length: 3.00"
Cap OD (B): 1.938"
Yoke Span (A): 6.094"
Hub Dia.: 3.75"
Style:
Rear Axle Type:
Joint Angle:
20.5
Counterbore Depth:
ø

Bearing Strap Construction Diagram

.
