Neapco N6-4-6371 End Yoke

Vendor: Neapco, Sku: 'N6-4-6371

Product Description

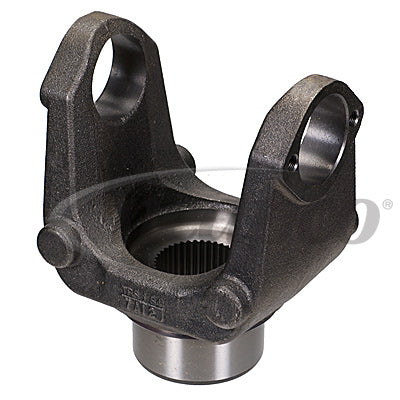

Driveshaft End Yoke

Specifications
CL TO END OF HUB: 6.25
DL SERIES: 1710
HUB DIAMETER: 3.00
JOINT ANGLE: 45
LENGTH THROUGH BORE: 2.31
SPLINE / NUMBER TEETH: 2.024-39
UJ RETENTION: Plate

VMRS: 024-001-003

Sku: 'N6-4-6371
Vendor: Neapco
$153.95
Maximum quantity available reached.

DETAILS

Manufacturer: Neapco
Centerline of Joint to End of Spline (s): 6.25"
Manufacturer Part Number: 'N6-4-6371
U-Joint Series: 1710
Spline Count: 39
Spline OD: 2.024"
Bore Length: 2.31"
Cap OD (B): 1.938"
Yoke Span (A): 6.094"
Hub Dia.: 3.00"
Style:
Rear Axle Type:
Joint Angle:
45
Counterbore Depth:
ø

Bearing Strap Construction Diagram

.
