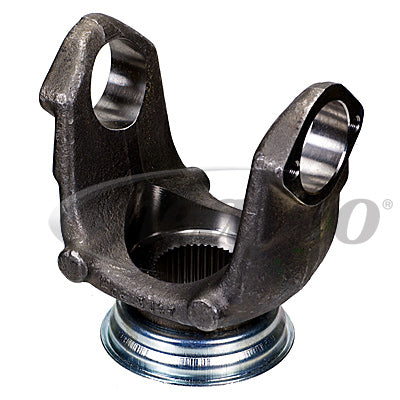

Neapco N6-4-6021X End Yoke

Vendor: Neapco, Sku: N6-4-6021X

Product Description

Drive Shaft End Yoke / Differential Yoke


The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.




t

*



End/Pinion Yoke Specifications

Manufacturer: Neapco
Manufacturer Part Number: N6-4-6021X
U-Joint Series: 1710
Style: Full Round
U-Joint Cap Diameter (A): 1.938 Inch
U-Joint Width (B): 6.190 Inch
End Yoke Length(C) :
- Center Line to End of Spline 		6.120 Inch
Hub Diameter (D): 2.620 Inch
Spline Diameter (E):
- From Farthest Point to Farthest Point 		2.024 Inch
Number of Splines (F): 39
Bore Length (G): 2.250 Inch
Joint Angle:
45.0 Degree

VMRS: 024-001-003


How to Measure a Driveshaft Slip Yoke.

Application:




Vehicle Information:





****

This part is compatible with:
 Call for available in-stock options.

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide

If you have any questions we are here to help:  CHAT | EMAIL | (574)287-9650

Sku: N6-4-6021X
Vendor: Neapco
$188.45
