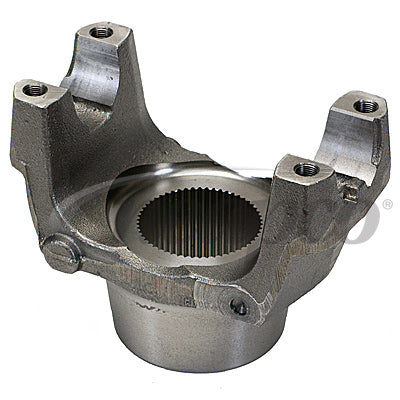

Neapco N6.3-4-1681-1 End Yoke

Vendor: Neapco, Sku: N6.3-4-1681-1

Product Description

Drive Shaft End Yoke / Differential Yoke


The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.




t

*



U-Joint Series: 1760
Style: Half Round
U-Joint Cap Diameter: 1.938 Inch
U-Joint Width: 7.000 Inch
End Yoke Length:
- Center Line to End of Spline
5.620 Inch
Hub Diameter: NA
Spline Diameter:
- From Farthest Point to Farthest Point
2.790 Inch
Number of Splines: 54
Bore Length: 2.750 Inch

VMRS: 024-001-003

How to Measure a Driveshaft Slip Yoke.

Application:




Vehicle Information:





****


This part is compatible with:
Spicer 5-677X U-Joint (Half Round)
Neapco 6-0677Q U-Joint (Half Round)

Alternate Part Number:
Spicer 6.3-4-1681-1 End Yoke
PTI P6.3-4-1681-1 End Yoke

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide

If you have any questions we are here to help
CONTACT US |  CHAT | (574) 287-9650

Sku: N6.3-4-1681-1
Vendor: Neapco
$196.00
