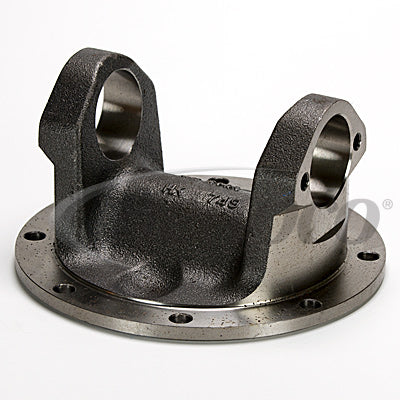

Neapco N6-2-739 Flange Yoke

Vendor: Neapco, Sku: N6-2-739

Product Description

Driveshaft Flange Yoke

Specifications
BOLT CIRCLE: 7.25
DL SERIES: 1710
FLANGE FACE TO CL: 3.00
HOLE/THREAD SIZE: 0.44
JOINT ANGLE: 22/29
NUMBER OF BOLT HOLES: 8
PILOT DIAMETER: 7.75-M

VMRS: 024-002-016

Sku: N6-2-739
Vendor: Neapco
$154.00
Maximum quantity available reached.

DETAILS

U-Joint Series:
1710
U-Joint Cap Size (B): 1.938"
U-Joint Width (A): 6.074"
Snap Ring Type: Bearing Plate
Manufacturer: Neapco
Pilot Diameter (G): 7.75-M
Bolt Circle (E): 7.25"
Manufacturer Part Number: N6-2-739
Flange or Swing Diameter (J):
Bolt Hole (F): 0.44" Drilled
Number of Bolt Holes: 8
Flange Face to Centerline U-Joint (H): 3.00"
OEM/Alternate Part Number:
083869005898
