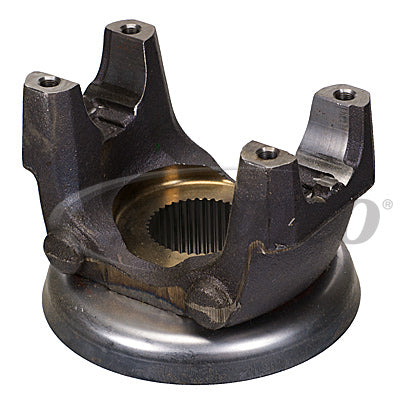

Neapco N5-4-6441-1X End Yoke

Vendor: Neapco, Sku: 'N5-4-6441-1X

Product Description

Driveshaft End Yoke

Specifications
CL TO END OF HUB: 4.88
DL SERIES: 1610HR
HUB DIAMETER: 2.31
LENGTH THROUGH BORE: 2.31
SPLINE / NUMBER TEETH: 2.000-39
UJ RETENTION: Strap

VMRS: 024-001-003

Sku: 'N5-4-6441-1X
Vendor: Neapco
$134.60
Maximum quantity available reached.

DETAILS

Manufacturer: Neapco
Centerline of Joint to End of Spline (s): 4.88"
Manufacturer Part Number: 'N5-4-6441-1X
U-Joint Series: 1610
Spline Count: 39
Spline OD: 2.00"
Bore Length: 2.31"
Cap OD (B): 1.875"
Yoke Span (A): 5.312"
Hub Dia.: 2.31"
Style: Outside Snap Ring
Rear Axle Type:
Joint Angle:
ø
Counterbore Depth:
ø

Bearing Strap Construction Diagram

.
