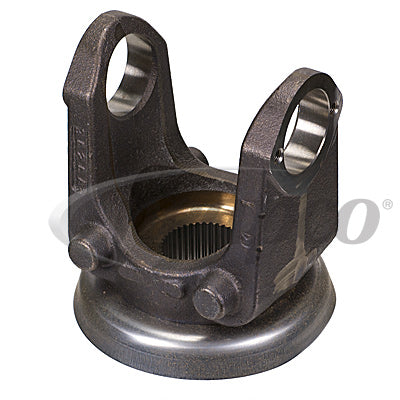

Neapco N5-4-6291X End Yoke

Vendor: Neapco, Sku: N5-4-6291X

Product Description

Drive Shaft End Yoke / Differential Yoke


The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.




t

*



Manufacturer: Neapco
Manufacturer Part Number: N5-4-6291X
U-Joint Series: 1610
Style: Full Round
U-Joint Cap Diameter (A): 1.875 Inch
U-Joint Width (B): 5.312 Inch
End Yoke Length(C) :
- Center Line to End of Spline 		6.220 Inch
Hub Diameter (D): 3.000 Inch
Spline Diameter (E):
- From Farthest Point to Farthest Point 		2.000 Inch
Number of Splines (F): 39
Bore Length (G): 2.310 Inch
Joint Angle:
45.0 Degree

VMRS: 024-001-003


How to Measure a Driveshaft Slip Yoke.

Application:




Vehicle Information:





****

This part is compatible with:
Call for available in-stock options.

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide

If you have any questions we are here to help:  CHAT | EMAIL | (574)287-9650
