Neapco N3R-3-9762X Trans Slip Yoke

Vendor: Neapco, Sku: 'N3R-3-9762X

Product Description

Transmission Applications: Fits various manual and automatic transmission with 27 spline output shafts. Fits Transmission Applications , 4L80 , 4L80E , 4L85 , 6L80E , Jericho , M20 , M21 , M22 , Richmond , Super T-10 , TH-400 , Turbo 400

Neapco Drive Shaft Transmission Slip Yoke
SKU: N3R-3-9762X

N3R-3-9762 is a Neapco built original equipment 3R yoke used most frequently on GM and Chevrolet Turbo 400 and Muncie 32 spline output shafts. N3R-3-9762X transmission yoke has an ideal barrel length for OEM replacement, restorations, or performance shafts.  Longer yokes than N3R-3-9762X may fit as well but check your application to verify.  Not a suitable barrel length for transfer cases.

Slip Yoke
Neapco slip yokes are manufactured from alloy steel forgings and ductile casting for increased strength. Spline forms are manufactured through broaching operations that produce industry leading mating part fits. The tight tolerance of these spline fits coupled with reduced end play universal joints reduce time at the dynamic balancing operation and produce high-quality, vibration-free driveshafts.

AFTERMARKET REPLACEMENT DRIVELINE PRODUCTS FOR LIGHT VEHICLE, COMMERCIAL VEHICLE, AGRICULTURAL/OFF-HIGHWAY AND INDUSTRIAL APPLICATIONS

Named as one of the fastest growing private companies in the United States by Crain's Fast 50 and Inc. Magazine, Neapco, established in 1921, designs, manufactures and distributes OEM driveline products for automotive and non-automotive applications throughout the globe. Being vertically integrated, our innovative in-house design capabilities, state of the art US production facility and quality assurance makes Neapco a perfect choice for both your OEM and aftermarket needs.

 Transmission Applications:
Fits various manual and automatic transmission with 27 spline output shafts including Turbo 400 (TH-400), 6L80E, 4L80E, Richmond, M20, M21, M22, Super T-10, Richmond, Jericho and other GM 32 spline output shaft transmissions.



Series 3R
Outside Yoke Dimension /
U-Joint Lock Up
2.563 IN
Bearing Cap Diameter 1.125 IN
Vehicle Make GM
Center Line to End of Spline 5.34 IN
Center Line to Face Washer  1.0 IN
Hub Diameter / Seal Diameter 1.88 IN
Spline Outside Diameter 1.391 IN
Number of Spline* 31/32
Joint Angle (degrees) 15.0
Spline Type Full Spline
Style Inside Snap Ring

VMRS: 024002038

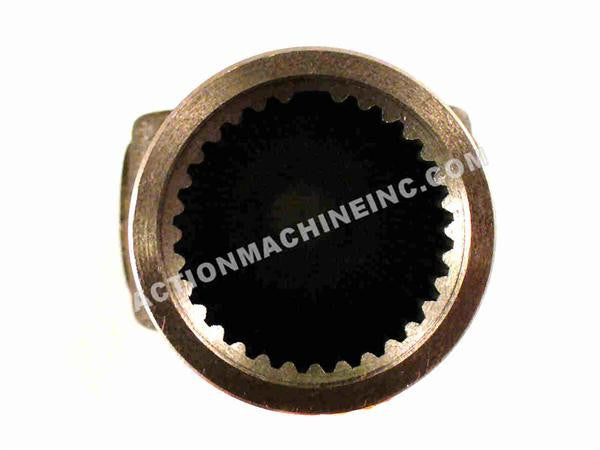

 * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.

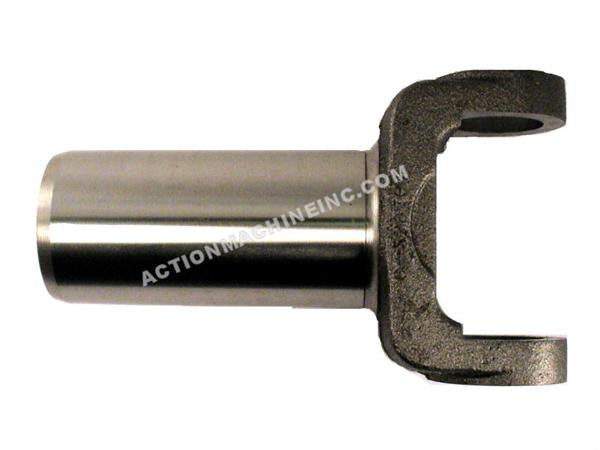

inside snap ring slip yoke

inside snap ring slip yokeSlip Yoke

0

Sku: 'N3R-3-9762X
Vendor: Neapco
$104.40
