GM 27 Spline 3R Series

Vendor: Neapco, Sku: 'N3R-3-6081X

Product Description

Transmission Applications: Fits all GM transmissions with 27 splines output shafts. Fits Transmission Applications: , 200-R4 , 4L60-E , 4L65 , 700-R4 , M20 , M21 , Powerglide , Saginaw , T-10 , T-5 , T375 , T56 , Turbo 350

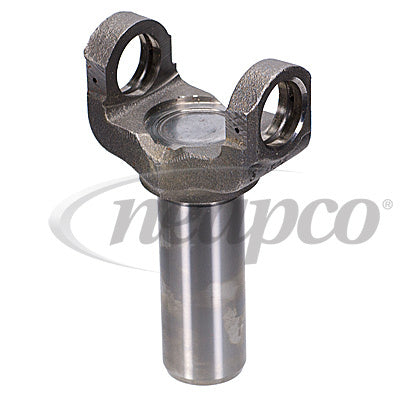

Neapco Drive Shaft Transmission Slip Yoke
SKU: N3R-3-6081X

Slip Yoke for GM vehicles with 3R Series U-Joints, 27 spline and matching measurement specs.

N3R-3-6081X is an OEM replacement for the GM style plastic injection which held the u-joint in place.  Neapco N3R-3-6081X transmission yoke has an ideal barrel length for OEM replacement, restorations, or performance shafts.  Transmission yokes longer than 2-3-6081X may fit as well but check your application to verify.  Some applications require a longer yoke barrel, like for example a 4 x 4 transfer case.

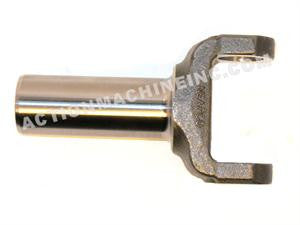

Slip Yoke
Neapco slip yokes are manufactured from alloy steel forgings and ductile casting for increased strength. Spline forms are manufactured through broaching operations that produce industry leading mating part fits. The tight tolerance of these spline fits coupled with reduced end play universal joints reduce time at the dynamic balancing operation and produce high-quality, vibration-free driveshafts.

AFTERMARKET REPLACEMENT DRIVELINE PRODUCTS FOR LIGHT VEHICLE, COMMERCIAL VEHICLE, AGRICULTURAL/OFF-HIGHWAY AND INDUSTRIAL APPLICATIONS

Named as one of the fastest growing private companies in the United States by Crain's Fast 50 and Inc. Magazine, Neapco, established in 1921, designs, manufactures and distributes OEM driveline products for automotive and non-automotive applications throughout the globe. Being vertically integrated, our innovative in-house design capabilities, state of the art US production facility and quality assurance makes Neapco a perfect choice for both your OEM and aftermarket needs.

 Transmission Applications:
Fits all GM transmissions with 27 splines output shafts. GM transmissions include Turbo 350 (TH-350), Powerglide, T375, 700R4, 200R, 4L60, and 4L65. Also fits manual transmissions with 27 spline outputs like Borg Warner T-5, T-10, T-56 and Muncie M20 and M21, as well as Saginaw.



Series 3R
Outside Yoke Dimension /
U-Joint Lock Up
2.563 IN
Bearing Cap Diameter 1.125 IN
Vehicle Make GM
Center Line to End of Spline 5.47 IN
Center Line to Face Washer  0.88 IN
Hub Diameter / Seal Diameter 1.50 IN
Spline Outside Diameter 1.172 IN
Number of Spline* 26/27
Joint Angle (degrees)
Spline Type Full Spline
Style Inside Snap Ring

VMRS: 024002038

 * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.

inside snapring slip yoke

inside snap ring slip yokeSlip Yoke
