Neapco N3-3-4261X Trans Slip Yoke

Vendor: Neapco, Sku: N3-3-4261X

Product Description

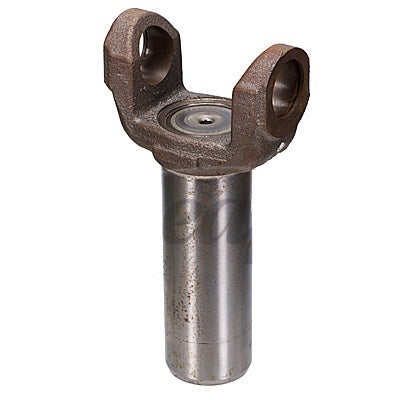

Neapco Drive Shaft Transmission Slip Yoke

Neapco Slip Yoke for GM vehicles with 1350 Series U Joints, 32 spline and matching measurement specs.

Transmission and Transfer Case Applications:

Fits various 32 spline transmission including Turbo 400 (TH400) with the long tailshaft, Muncie and Auto Gear M22, 6L50, 6L80E, 4L80E long tail, and Also fits Chevrolet and GMC transfer cases 241C and more.



Series: 1350
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.188 Inch
U-Joint Width (B): 3.625 Inch
Slip Yoke Length (C):
(Center Line to End of Spline)
6.94 Inch
Barrel Diameter (D): 1.89 Inch
Spline Diameter (E): 1.378 Inch
Number of Spline (F)*: 32 (31 with blind spot - see note below*)
Vented: Yes
Spline Counter Bore: No
Vehicle Make: GM

VMRS: 024002038

 * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.

Driveshaft Slip Yoke Diagram Outside Snap Ring Style

Transmission Output Shaft Style

If you have a TH-400 or 4L80 confirm if you have an o-ring on the output spline of your transmission. If your transmission has an o-ring you will need a 5.5” short barrel counter bored slip yoke.

Transmission Slip yoke with and without counter bore

Driveshaft Slip Yoke Diagram Spline Count

0


Alternate Part Options:
Spicer 3-3-4261X Slip Yoke
Spicer 3-3-6481X Slip Yoke
PTI 3503-3201 Slip Yoke
