Neapco N3-23-9163X Flange Sleeve

Vendor: Neapco, Sku: N3-23-9163X

Product Description

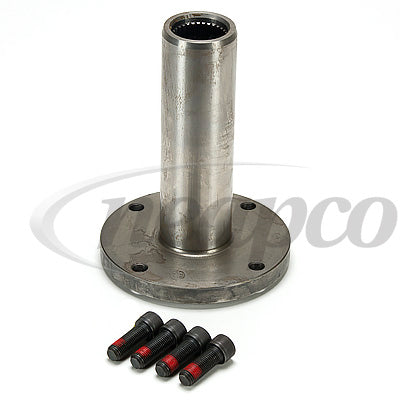

Neapco Drive Shaft Slip Flange

Neapco Driveshaft Slip Flange



Transmission/Transfer Case Applications:
Fits various 32 spline transfer cases including New Process NP205, NP208, NP241, NP243, NP246, NP261, NP263 and more.



Series: 1350
Bolt Circle:
4.25
Flange Face to End:
6.60 Inch
Hole / Thread Size:
0.44-20 Inch
Pilot Diameter:
3.12-M
Number of Bolt Holes:
4
Hub Diameter / Seal Diameter: 1.88 Inch
Spline Outside Diameter: 1.390 Inch
Number of Spline*:
31/32
Spline Diameter: 1.375 Inch
Spline Type: Full Spline
Style: Outside Snap Ring

VMRS: 024002038

 * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.


Driveshaft Flange

0

Sku: N3-23-9163X
Vendor: Neapco
$125.66
