Neapco N2-4-JL03-1X End Yoke

Vendor: Neapco, Sku: N2-4-JL03-1X

Product Description

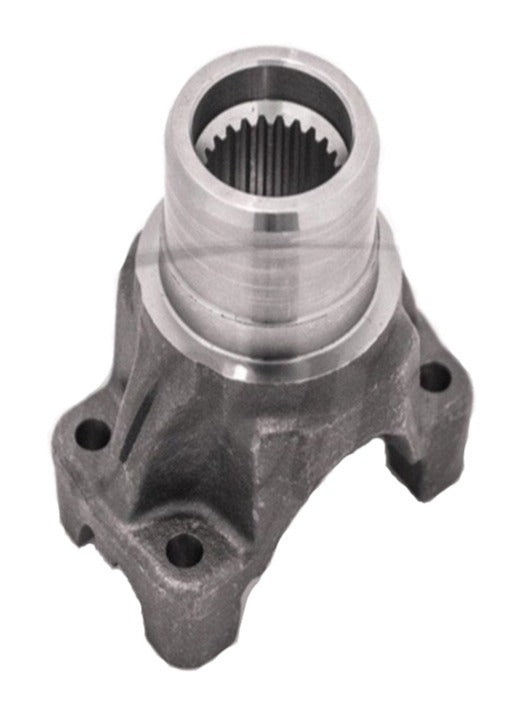

Drive Shaft End Yoke / Pinion Yoke


The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.




t

*



End/Pinion Yoke Specifications

Forged

U-Joint Series: 1310
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.063 Inch
U-Joint Width (B): 3.219 Inch
End Yoke Length(C) :
- Center Line to End of Hub 		3.25 Inch
Hub Diameter (D): 1.95 Inch
Spline Diameter (E):
- From Farthest Point to Farthest Point 		1.250 Inch
Number of Splines (F): 24
Bore Length (G): 1.71 Inch
VMRS: 024001003



How to Measure a Driveshaft Slip Yoke.

Applications

Vehicle Specific
Jeep, 2018-Current JL Wrangler/JT Gladiator

Fitment
Axle Pinion, Rear, Jeep JL/JT Dana M220 Rear Axle (AdvanTEK@ D44)




****

This part is compatible with:
Included 1-0089 U-Bolt Kit

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide
